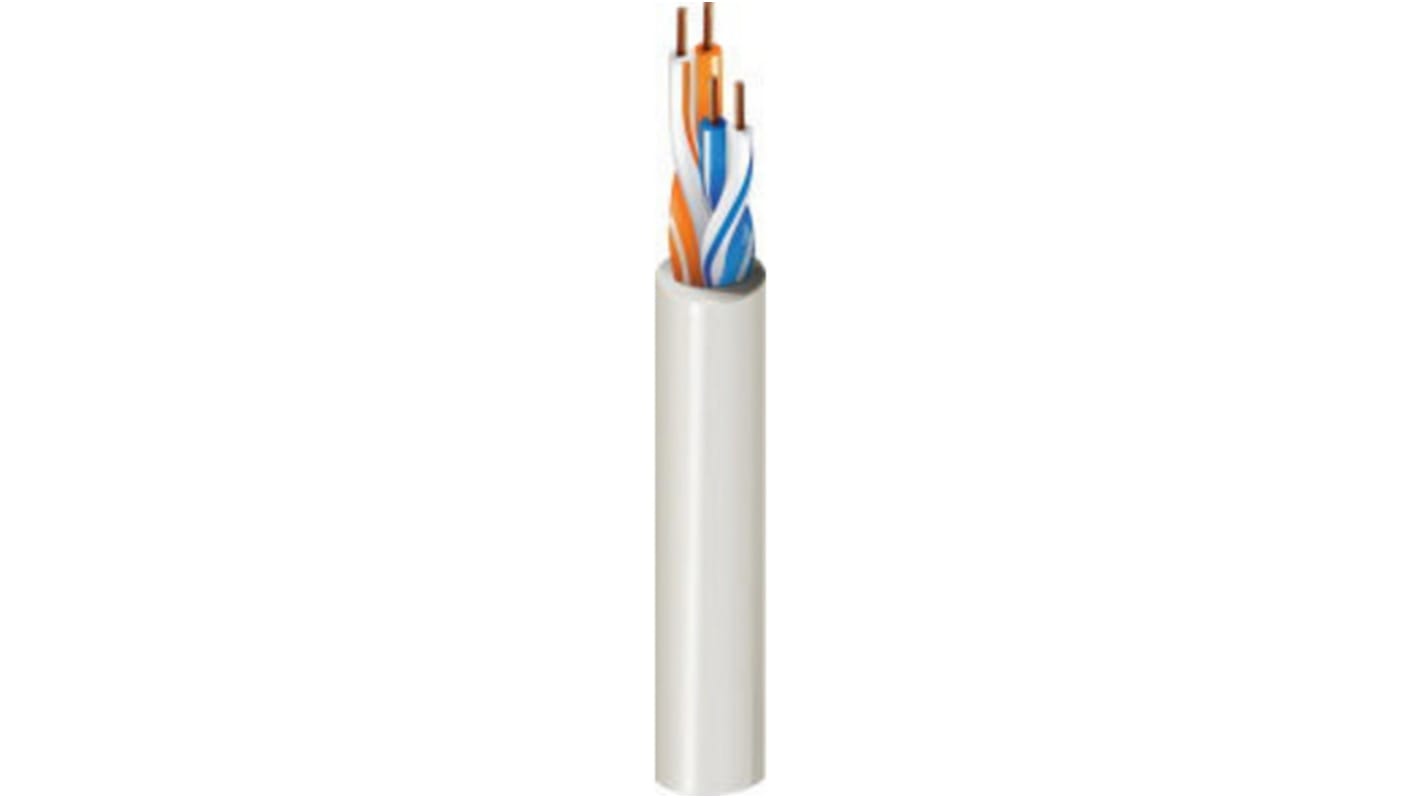

Belden 7701NH Multicore Industrial Cable, 2 Cores, 0.33 mm², Unscreened, 305m, White Low Smoke Zero Halogen (LSZH)
- RS Stock No.:
- 382-7072
- Mfr. Part No.:
- 7701NH.01305
- Brand:
- Belden
Subtotal (1 reel of 304 metres)*
£360.87
(exc. VAT)
£433.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 4 unit(s) shipping from 27 October 2025
- Plus 3 unit(s) shipping from 14 November 2025
- Plus 999,999,996 unit(s) shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £360.87 | £1.187 |
*price indicative
- RS Stock No.:
- 382-7072
- Mfr. Part No.:
- 7701NH.01305
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | 7701NH | |
| Number of Cores | 2 | |
| Cross Sectional Area | 0.33 mm² | |
| American Wire Gauge | 22 AWG | |
| Conductor Material | Bare Copper | |
| Sheath Material | Low Smoke Zero Halogen (LSZH) | |
| Sheath Colour | White | |
| Screened/Unscreened | Unscreened | |
| Screen Type | Unscreened | |
| Minimum Bend Radius | 10 x Diameter | |
| Length | 305m | |
| Outer Diameter | 3.5mm | |
| Voltage Rating | 300 V | |
| Current Rating | 2.5 A | |
| CPR Certification | Dca | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -15°C | |
| Conductor Resistance | 55 Ω/km | |
| Insulation Material | PE | |
| Core Strands | Solid Core | |
| Drain Wire | No | |
Select all | ||
|---|---|---|
Brand Belden | ||
Series 7701NH | ||
Number of Cores 2 | ||
Cross Sectional Area 0.33 mm² | ||
American Wire Gauge 22 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material Low Smoke Zero Halogen (LSZH) | ||
Sheath Colour White | ||
Screened/Unscreened Unscreened | ||
Screen Type Unscreened | ||
Minimum Bend Radius 10 x Diameter | ||
Length 305m | ||
Outer Diameter 3.5mm | ||
Voltage Rating 300 V | ||
Current Rating 2.5 A | ||
CPR Certification Dca | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -15°C | ||
Conductor Resistance 55 Ω/km | ||
Insulation Material PE | ||
Core Strands Solid Core | ||
Drain Wire No | ||
- COO (Country of Origin):
- NL
Belden Data Cable
A cable for instrumentation and computer cables for data transmission applications.
Features and Benefits
LSZH Jacket (Flame retardant/Halogen free)
2 Pairs
Beldfoil Shield
Standards
IEC 332-3C
