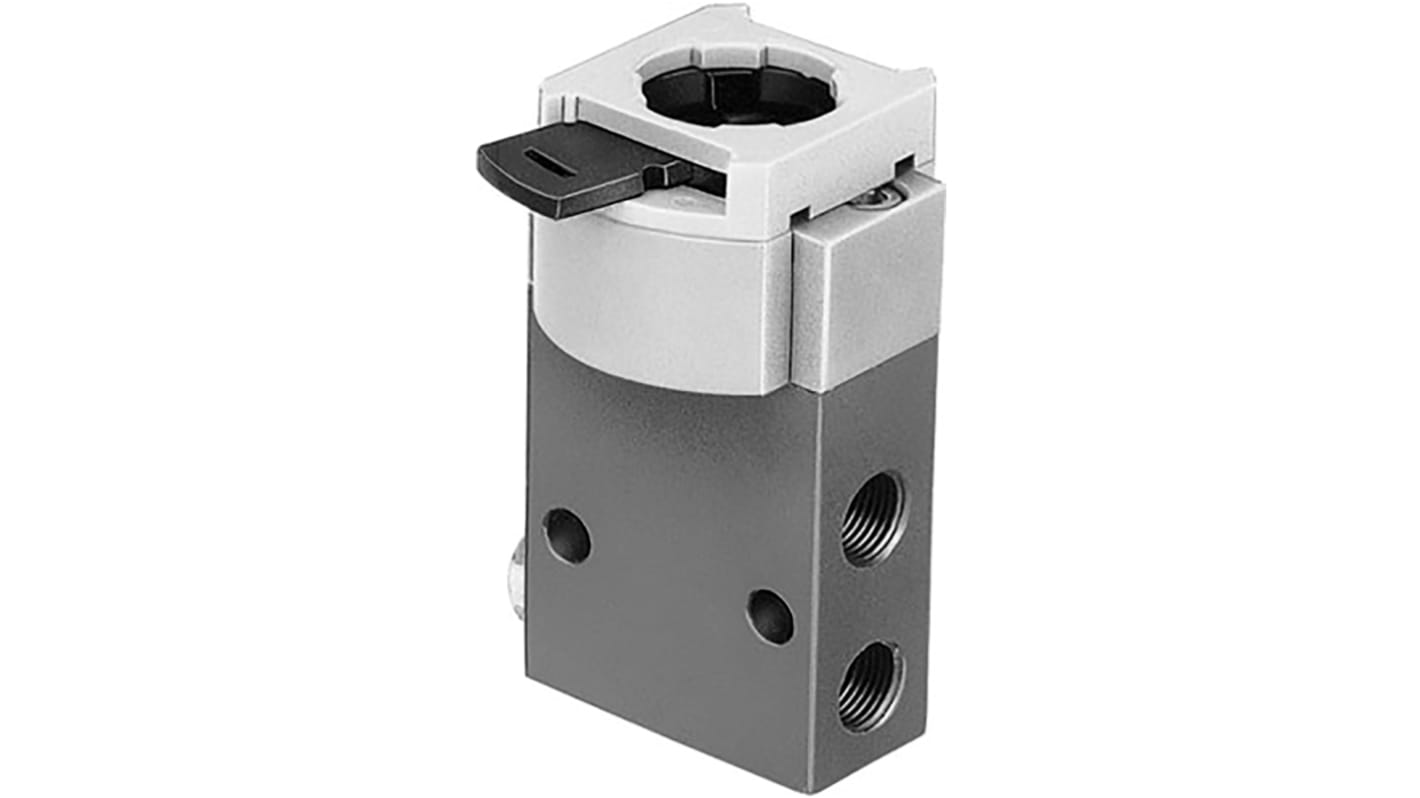

Festo G 1/8 Manual Condensate Drain, SVS-3-1/8
- RS Stock No.:
- 175-4495
- Mfr. Part No.:
- SVS-3-1/8
- Brand:
- Festo
Subtotal (1 unit)*
£124.81
(exc. VAT)
£149.77
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £124.81 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£55.89
(exc. VAT)
£67.07
(inc. VAT)
- RS Stock No.:
- 175-4495
- Mfr. Part No.:
- SVS-3-1/8
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Inlet Port | G 1/8 | |
Inlet Port - Thread Size | 1/8mm | |
Drain Type | Manual | |
Outlet Port | G 1/8 | |
Manufacturer Series | SVS | |
Dimensions | 68 x 37.5 x 40.5mm | |
Minimum Operating Temperature | -10°C | |
Height | 68mm | |
Minimum Operating Pressure | 3.5bar | |
Outlet Port - Thread Standard | G | |
Outlet Port - Thread Size | 1/8in | |
Inlet Port Thread Standard | G | |
Maximum Operating Pressure | 8 bar | |
Maximum Operating Temperature | +60°C | |
Depth | 40.5mm | |
Width | 37.5mm | |
Select all | ||
---|---|---|
Brand Festo | ||
Inlet Port G 1/8 | ||
Inlet Port - Thread Size 1/8mm | ||
Drain Type Manual | ||
Outlet Port G 1/8 | ||
Manufacturer Series SVS | ||
Dimensions 68 x 37.5 x 40.5mm | ||
Minimum Operating Temperature -10°C | ||
Height 68mm | ||
Minimum Operating Pressure 3.5bar | ||
Outlet Port - Thread Standard G | ||
Outlet Port - Thread Size 1/8in | ||
Inlet Port Thread Standard G | ||
Maximum Operating Pressure 8 bar | ||
Maximum Operating Temperature +60°C | ||
Depth 40.5mm | ||
Width 37.5mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- HU
Festo Manual Condensate Drain, G 1/8 - SVS Series - SVS-3-1/8
This condensate drain from Festo has an actuator that works like a button to manually release contaminants such as excess lubricant or metal particles from the unit. It operates together with an air filter to remove excess moisture and dirt from compressed air systems. The unit has a rapid quick-coupling arrangement so you can quickly attach or remove the actuator. It operates with clean precision by ensuring there's no overflow between the exhaust gas and intake channels during switching.
• G 1/8 inlet and outlet port
• Thread size of 3.175 mm
• Operating pressure range of 2.8 bar to 8 bar
• Panel mounting with spring return
• Operating temperature range of -10°C to +60°C
• Dimensions of 68 (height) x 37.5 (width) x 40.5 (depth) mm
• Thread size of 3.175 mm
• Operating pressure range of 2.8 bar to 8 bar
• Panel mounting with spring return
• Operating temperature range of -10°C to +60°C
• Dimensions of 68 (height) x 37.5 (width) x 40.5 (depth) mm
Range Information
• The Festo SVS range of front-panel drain valves is suited to actuator attachments such as push-button and key actuators, mushroom pushbuttons and selector and toggle switches
• Easy to mount and dismount
• Available as manually or mechanically actuated valves
• This range of components features poppet valves that have no overlap, which increases the response time of the units
• Easy to mount and dismount
• Available as manually or mechanically actuated valves
• This range of components features poppet valves that have no overlap, which increases the response time of the units
Push Button & Selector - Festo
