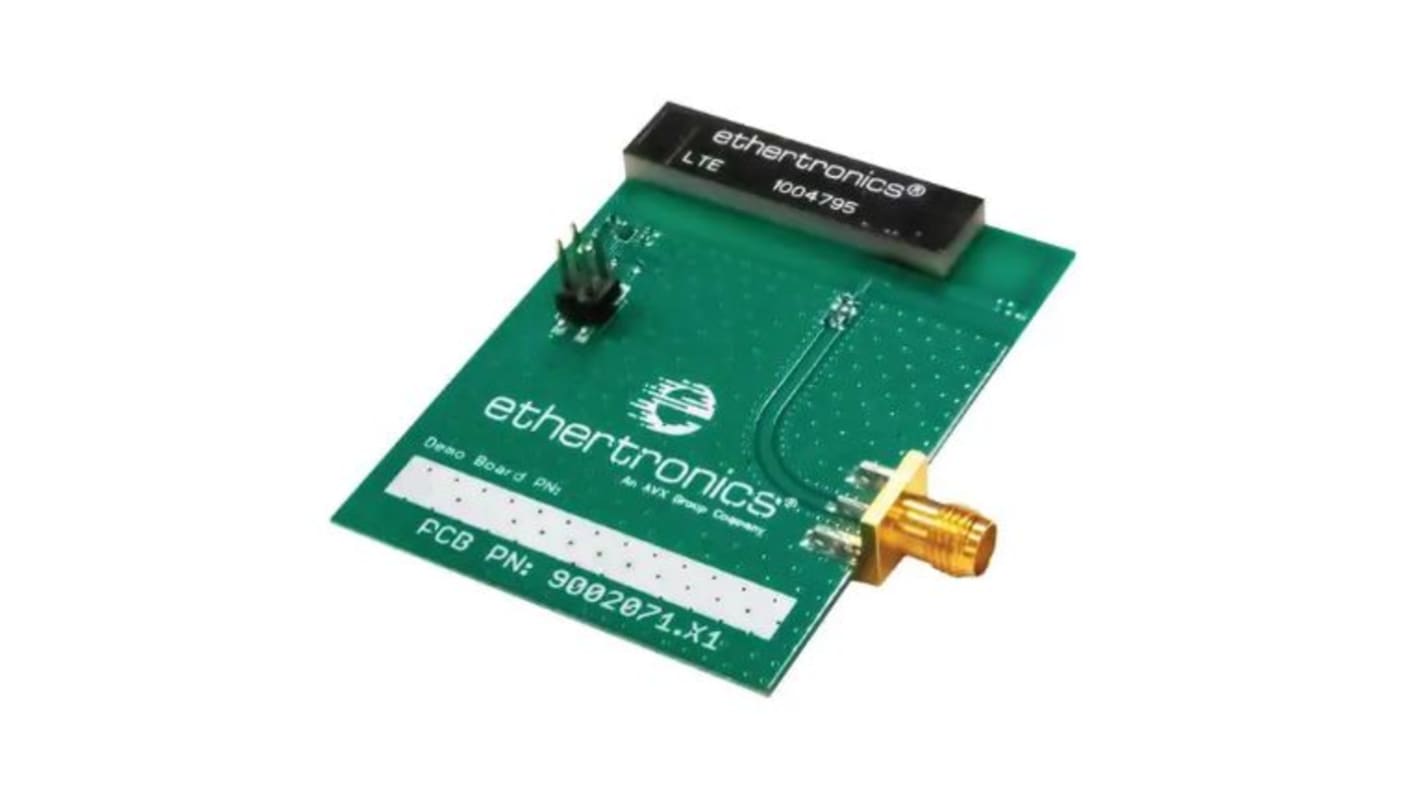

AVX Evaluation Board 1004795 with EC646 KYOCERA LTE Evaluation Board for Cellular HeadHeadsets, Embedded design Circuit
- RS Stock No.:
- 242-3560
- Mfr. Part No.:
- 1004795-EC646-01
- Brand:
- AVX
Available to back order for despatch when stock is available
Added
Price Each (On a Reel of 20)
£32.547
(exc. VAT)
£39.056
(inc. VAT)
| Units | Per unit | Per Reel* |
| 20 - 20 | £32.547 | £650.94 |
| 40 - 80 | £31.245 | £624.90 |
| 100 + | £28.642 | £572.84 |
| *price indicative | ||
- RS Stock No.:
- 242-3560
- Mfr. Part No.:
- 1004795-EC646-01
- Brand:
- AVX
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The AVX Antenna Band Switching Solution on Small EVB (LTE Antenna + Switch) using standard products allows faster time-to-market. The Evaluation Board has a small size of 45.5 x 60 mm, which allows engineers test the antenna performance on a typical size of IoT devices, reducing the number of iterations and improving the accuracy. The EVB uses the standard FR4 embedded LTE antenna 1004795 together with the chipset EC646 for band switching or aperture tuning. The Antennas may look alike on the outside, but the important difference is inside.
Stay-in-Tune
Quicker Time-to-Market
Dimensions (mm) 45.5 x 60.0
Connector SMA (female)
Weight (grams) 10.5
Operating Temperature -40°C to +85°C
Quicker Time-to-Market
Dimensions (mm) 45.5 x 60.0
Connector SMA (female)
Weight (grams) 10.5
Operating Temperature -40°C to +85°C
Specifications
Attribute | Value |
|---|---|
| RF Technology | LTE |
| Classification | Evaluation Board |
| Technology | RF Switch |
| Kit Classification | Evaluation Board |
| For Use With | Cellular HeadHeadsets, Embedded design Circuit |
| Featured Device | KYOCERA |
| Kit Name | Evaluation Board 1004795 with EC646 |
| Frequency | 700 → 960MHz |
