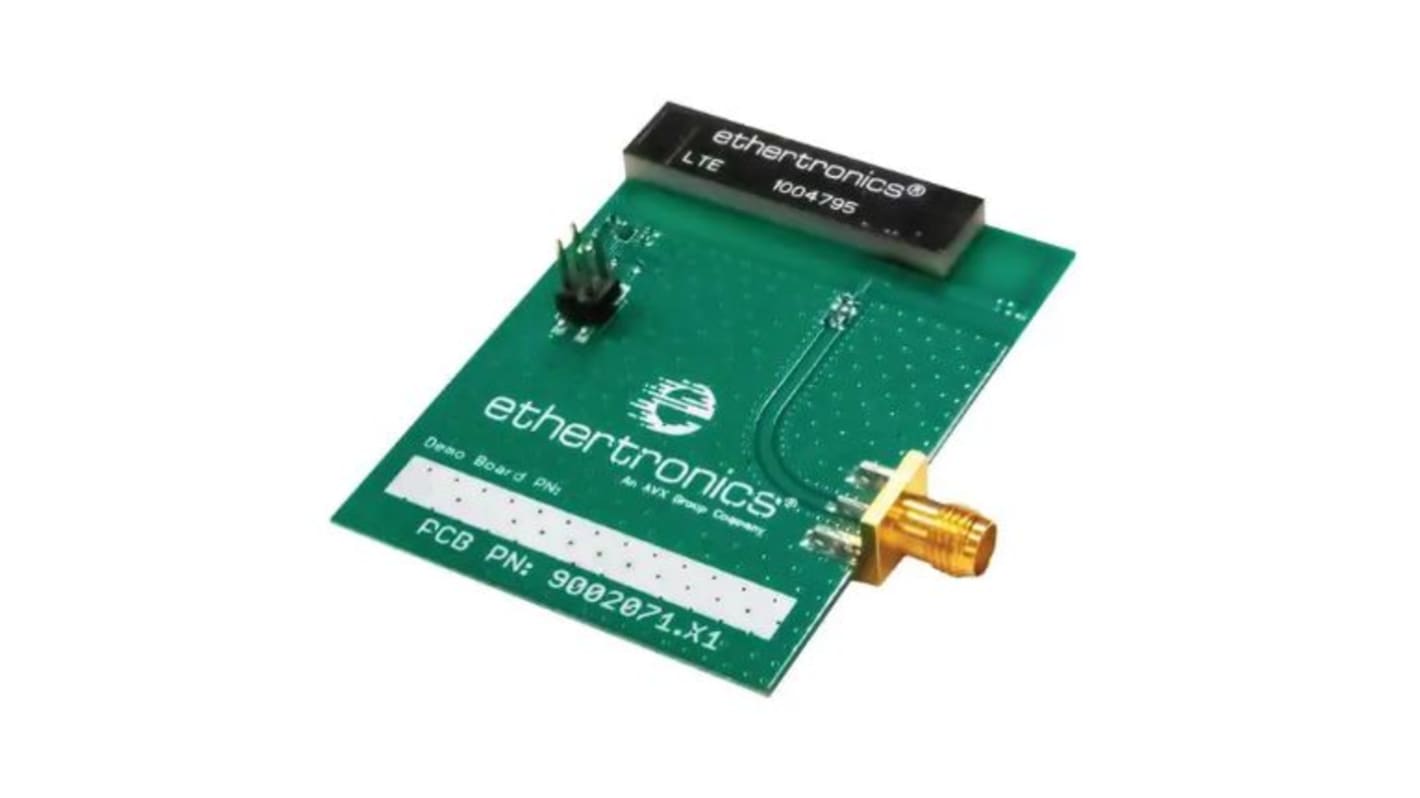

AVX Evaluation Board 1004795 with EC646 KYOCERA LTE Evaluation Board for Cellular HeadHeadsets, Embedded design Circuit
- RS Stock No.:
- 242-3561
- Mfr. Part No.:
- 1004795-EC646-01
- Brand:
- AVX
Subtotal (1 unit)*
£34.23
(exc. VAT)
£41.08
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 18 unit(s), ready to ship
Units | Per unit |
---|---|
1 + | £34.23 |
*price indicative
- RS Stock No.:
- 242-3561
- Mfr. Part No.:
- 1004795-EC646-01
- Brand:
- AVX
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | AVX | |
Classification | Evaluation Board | |
RF Technology | LTE | |
Technology | RF Switch | |
Kit Classification | Evaluation Board | |
For Use With | Cellular HeadHeadsets, Embedded design Circuit | |
Featured Device | KYOCERA | |
Kit Name | Evaluation Board 1004795 with EC646 | |
Frequency | 700 → 960MHz | |
Select all | ||
---|---|---|
Brand AVX | ||
Classification Evaluation Board | ||
RF Technology LTE | ||
Technology RF Switch | ||
Kit Classification Evaluation Board | ||
For Use With Cellular HeadHeadsets, Embedded design Circuit | ||
Featured Device KYOCERA | ||
Kit Name Evaluation Board 1004795 with EC646 | ||
Frequency 700 → 960MHz | ||
- COO (Country of Origin):
- CN
The AVX Antenna Band Switching Solution on Small EVB (LTE Antenna + Switch) using standard products allows faster time-to-market. The Evaluation Board has a small size of 45.5 x 60 mm, which allows engineers test the antenna performance on a typical size of IoT devices, reducing the number of iterations and improving the accuracy. The EVB uses the standard FR4 embedded LTE antenna 1004795 together with the chipset EC646 for band switching or aperture tuning. The Antennas may look alike on the outside, but the important difference is inside.
Stay-in-Tune
Quicker Time-to-Market
Dimensions (mm) 45.5 x 60.0
Connector SMA (female)
Weight (grams) 10.5
Operating Temperature -40°C to +85°C
Quicker Time-to-Market
Dimensions (mm) 45.5 x 60.0
Connector SMA (female)
Weight (grams) 10.5
Operating Temperature -40°C to +85°C
