- RS Stock No.:
- 246-9530
- Brand:
- RS PRO
711 In stock - FREE next working day delivery available
Added
Price Each
£4.08
(exc. VAT)
£4.90
(inc. VAT)
Units | Per unit |
1 - 4 | £4.08 |
5 - 9 | £3.96 |
10 - 24 | £3.80 |
25 + | £3.62 |
- RS Stock No.:
- 246-9530
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

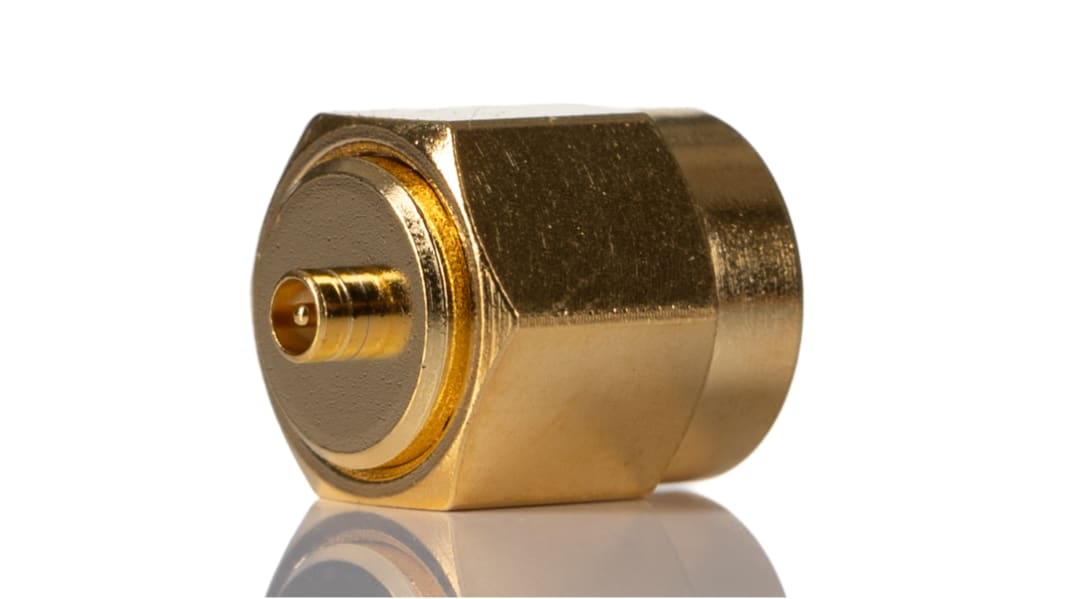

RS PRO Coaxial Adapter, SMA Plug to UFL Socket, 6 GHz
The RS PRO SMA (sub miniature A) to UFL Socket coaxial adapter is designed for the efficient and secure connection of coaxial cable assemblies.
Other applications can include repairs to devices, panel passthroughs and connection extensions.
The RS PRO coax adapter features a 6GHz operating range, gold-plated Brass contacts for excellent wear resistance and a total length of only 10mm.
UFL connectors are miniature RF connectors that are very small in size and are most commonly used in applications such as laptops, smart phones where space is extremely limited.
Other applications can include repairs to devices, panel passthroughs and connection extensions.
The RS PRO coax adapter features a 6GHz operating range, gold-plated Brass contacts for excellent wear resistance and a total length of only 10mm.
UFL connectors are miniature RF connectors that are very small in size and are most commonly used in applications such as laptops, smart phones where space is extremely limited.
Features and benefits
- SMA Plug to UFL Socket
- Straight orientation
- 10mm
- Impedance of 50Ω
- Working Voltage of 500V
- Insulation resistance of up to 1000MΩ
- Operating temperature range of -65°C to +125°C
Approvals and Standards: CE, ROHS
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
---|---|
Adapter Type | SMA Plug to UFL Socket |
Adapter Type A | SMA |
Adapter Type B | UFL |
Gender A | Plug |
Gender B | Socket |
Impedance | 75Ω |
Body Orientation | Straight |
Operating Frequency | 6GHz |
Contact Plating | Gold |
Length | 10mm |
Body Plating | Nickel |
Cable Type | Coaxial |
Contact Material | Copper |
