- RS Stock No.:
- 246-9492
- Brand:
- RS PRO
1719 In stock - FREE next working day delivery available
78 available from Europe for delivery within 1 working day(s).
Added
Price Each
£2.33
(exc. VAT)
£2.80
(inc. VAT)
Units | Per unit |
1 - 4 | £2.33 |
5 - 9 | £2.26 |
10 - 24 | £2.17 |
25 + | £2.07 |
- RS Stock No.:
- 246-9492
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

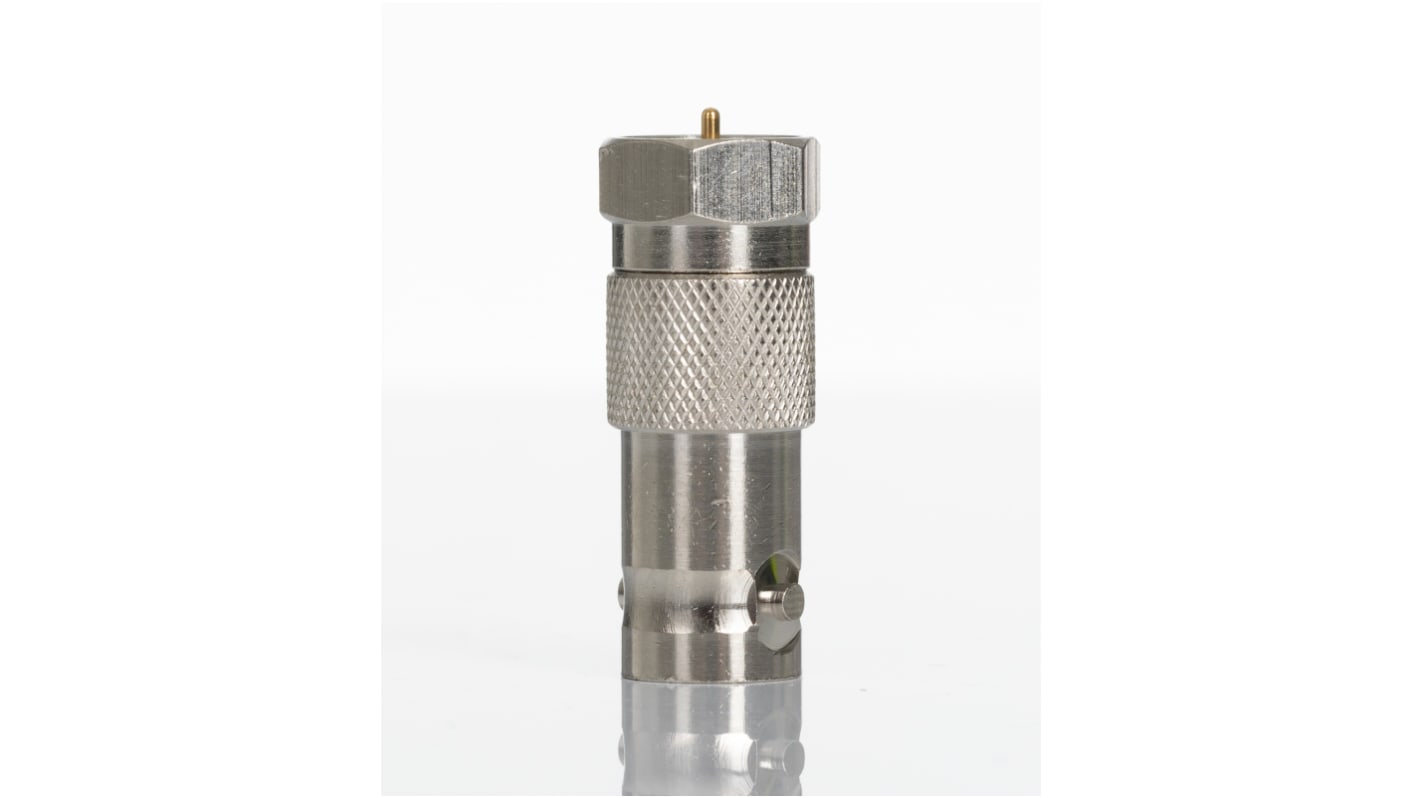

RS PRO Coaxial Adapter, BNC Socket to Type F Plug, 1 GHz
The RS PRO BNC Socket to Type F Plug coaxial adapter is designed for the efficient and secure connection of coaxial cable assemblies through a panel mounting.
Other applications can include repairs to devices, panel passthroughs and connection extensions.
The RS PRO coax adapter features gold-plated Copper contacts for excellent wear resistance and a length of 30mm.
Coaxial adapters are suited to a wide range of industries and applications and are most commonly used in the radio and television industry, WiFi applications and equipment, GPS and antennas.
Other applications can include repairs to devices, panel passthroughs and connection extensions.
The RS PRO coax adapter features gold-plated Copper contacts for excellent wear resistance and a length of 30mm.
Coaxial adapters are suited to a wide range of industries and applications and are most commonly used in the radio and television industry, WiFi applications and equipment, GPS and antennas.
Features and benefits
- BNC Socket to F Plug
- Straight orientation
- 30mm
- Impedance of 75Ω
- Working Voltage of 500V
- Operating temperature range of -40°C to +85°C
Approvals and Standards: CE, ROHS
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
---|---|
Adapter Type | F Plug to BNC Socket |
Adapter Type A | Type F |
Adapter Type B | BNC |
Gender A | Plug |
Gender B | Socket |
Impedance | 75Ω |
Body Orientation | Straight |
Operating Frequency | 1GHz |
Contact Plating | Gold |
Length | 30mm |
Body Plating | Nickel |
Cable Type | Coaxial |
Contact Material | Copper |
