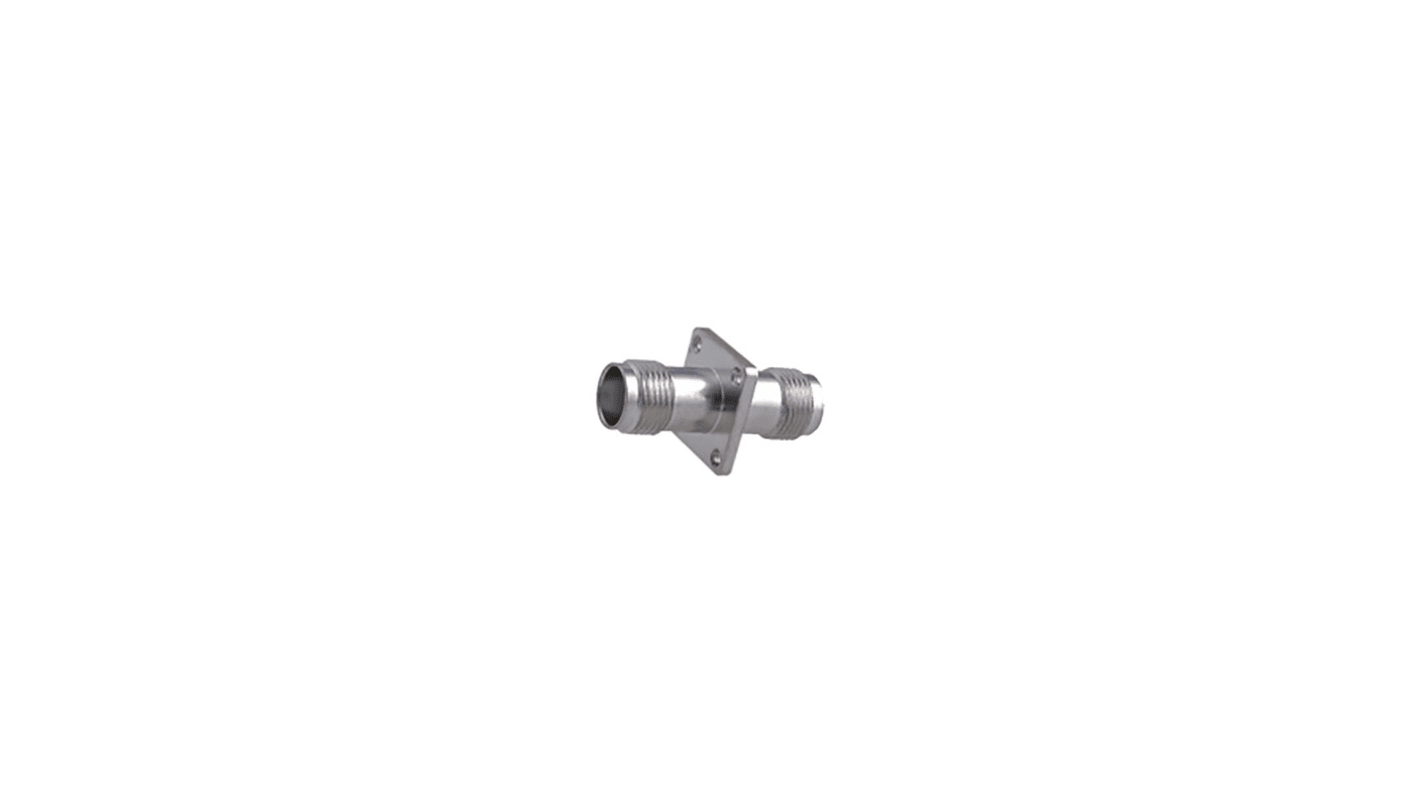

Huber+Suhner Straight 50 Ω Coaxial Adapter 11GHz Female Female
- RS Stock No.:
- 205-8959
- Distrelec Article No.:
- 302-21-963
- Mfr. Part No.:
- 37_TNC-50-0-2/133_NE
- Brand:
- Huber+Suhner
Bulk discount available
Subtotal (1 unit)*
£38.16
(exc. VAT)
£45.79
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £38.16 |
| 10 - 24 | £34.84 |
| 25 - 49 | £32.05 |
| 50 - 99 | £29.65 |
| 100 + | £26.71 |
*price indicative
- RS Stock No.:
- 205-8959
- Distrelec Article No.:
- 302-21-963
- Mfr. Part No.:
- 37_TNC-50-0-2/133_NE
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Huber+Suhner | |
| Product Type | Coaxial Adapter | |
| Converts From Type | TNC Jack | |
| Converts to Type | TNC Jack | |
| Impedance | 50Ω | |
| Mount Type | Flange | |
| Orientation | Straight | |
| Operating Frequency | 11GHz | |
| Polarity | Normal | |
| Contact Plating | Gold Plating | |
| Converts to Gender - Contact | Female | |
| Converts to Gender - Connector | Female | |
| Body Plating | Sucoplate | |
| Converts From Gender - Connector | Female | |
| Converts From Gender - Contact | Female | |
| Coupling Style | Threaded | |
| Cable Type | Coaxial | |
| Standards/Approvals | ISO 9001, AS/EN9100, IRIS, ISO 14001, ISO/TS 16949 | |
| Series | TNC - IEC 60169-17_MIL-STD-348A/313_CECC 22200 | |
| Contact Material | Beryllium Copper Alloy | |
| Select all | ||
|---|---|---|
Brand Huber+Suhner | ||
Product Type Coaxial Adapter | ||
Converts From Type TNC Jack | ||
Converts to Type TNC Jack | ||
Impedance 50Ω | ||
Mount Type Flange | ||
Orientation Straight | ||
Operating Frequency 11GHz | ||
Polarity Normal | ||
Contact Plating Gold Plating | ||
Converts to Gender - Contact Female | ||
Converts to Gender - Connector Female | ||
Body Plating Sucoplate | ||
Converts From Gender - Connector Female | ||
Converts From Gender - Contact Female | ||
Coupling Style Threaded | ||
Cable Type Coaxial | ||
Standards/Approvals ISO 9001, AS/EN9100, IRIS, ISO 14001, ISO/TS 16949 | ||
Series TNC - IEC 60169-17_MIL-STD-348A/313_CECC 22200 | ||
Contact Material Beryllium Copper Alloy | ||
The Huber & Suhner coaxial adapters has 50 Ohm impedance. It has 11 GHz impedance frequency. The RF Coaxial adapter is a single piece component allowing the connection of two different pieces of equipment that cannot be joined directly.
Impedance 50 O
Interface frequency max. 11 GHz
VSWR DC - 9 GHz
= 1.09 + 0.16 f (GHz)
Frequency range 9 to 11 GHz
Return loss = 7 dB
Number of mattings 500
Weight 0.0153 kg
Operating temperature -65 °C to 165 °C
