- RS Stock No.:
- 716-4791
- Mfr. Part No.:
- 37_N-50-0-1/133_NE
- Brand:
- Huber+Suhner
Available to back order for despatch 15/05/2024
Added
Price Each
£41.40
(exc. VAT)
£49.68
(inc. VAT)
Units | Per unit |
1 - 14 | £41.40 |
15 - 49 | £37.26 |
50 - 99 | £34.16 |
100 - 249 | £31.05 |
250 + | £29.02 |
- RS Stock No.:
- 716-4791
- Mfr. Part No.:
- 37_N-50-0-1/133_NE
- Brand:
- Huber+Suhner
Technical Reference
Legislation and Compliance
Product Details

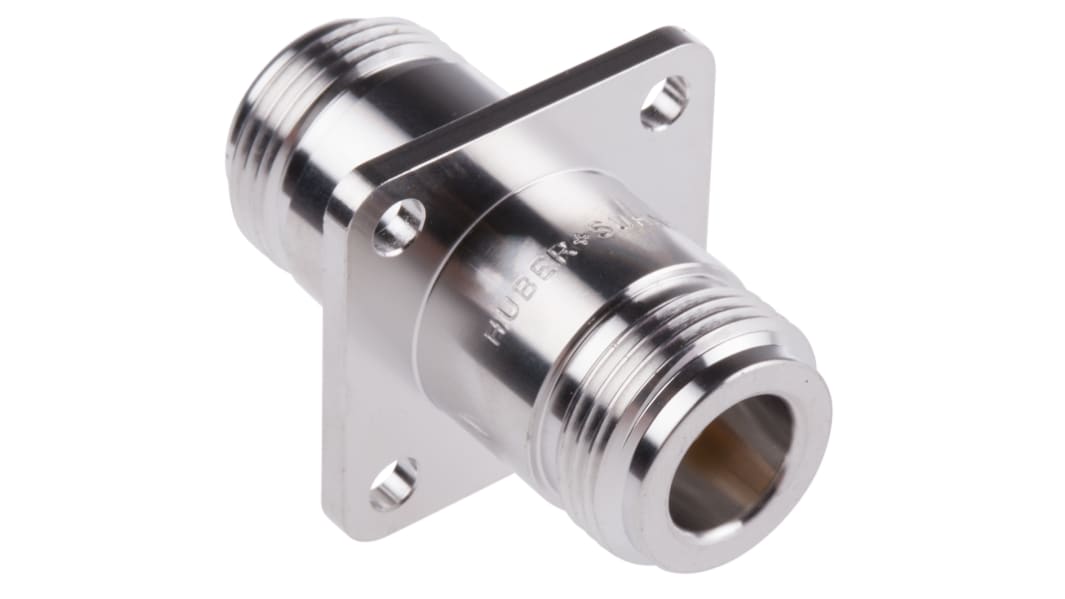

Huber+Suhner 50 Ohm N Series RF Coaxial Adapters
A range of 50 Ohm N series RF coaxial adapters with a variety of configurations including N plug to N plug, N jack to N jack and N plug to N jack with straight, elbow and T orientations and bulkhead mount options. Stock number 716-4811 is a N series T adapter with a jack-jack-plug configuration. These 50 Ohm N series RF coaxial adapters include N-precision to N-precision adapters for use in test and measurement applications (stock numbers 716-4849, 716-4855, 716-4877 and 716-4892. These N series precision adapters have an interface standard according to IEC 60169-16_MIL-STD-348A/402_CECC 22210.
Standards
Interface to IEC 61169-16_MIL-STD-348A/304_CECC 22210
Precision Interface to IEC 60169-16_MIL-STD-348A/402_CECC 22210
Precision Interface to IEC 60169-16_MIL-STD-348A/402_CECC 22210
N Series Huber+Suhner
Specifications
Attribute | Value |
---|---|
Adapter Type A | N |
Adapter Type B | N |
Gender A | Female |
Gender B | Female |
Impedance | 50Ω |
Body Orientation | Straight |
Polarity | Normal |
Operating Frequency | 11GHz |
Contact Plating | Gold over Nickel |
Length | 38mm |
Body Plating | White Bronze |
Contact Material | Beryllium Copper |
