Fluke A3003FC Clamp Meter Wireless, 100mA dc CAT III 1000V
- RS Stock No.:
- 881-2763
- Mfr. Part No.:
- FLK-A3003FC
- Brand:
- Fluke
Subtotal (1 unit)*
£703.97
(exc. VAT)
£844.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 6 unit(s) shipping from 17 November 2025
- Plus 4 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £703.97 |
*price indicative
- RS Stock No.:
- 881-2763
- Mfr. Part No.:
- FLK-A3003FC
- Brand:
- Fluke
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Absolute Maximum DC Current Measurement | 100mA dc | |
| Connectivity | Wireless | |
| Model Number | A3003FC | |
| DC Current Measurement Resolution | 100mA | |
| Best DC Current Accuracy | ±(2% rdg +5 Digits) | |
| Clamp Meter Type | DC Current Clamp Meter | |
| Jaw Capacity Busbars | 64mm | |
| Functions Measured | DC Current | |
| Minimum Operating Temperature | -10°C | |
| Height | 14mm | |
| Safety Category Level | CAT III, CAT IV | |
| Dimensions | 165 x 63.5 x 14mm | |
| Length | 165mm | |
| Power Source | Battery | |
| Width | 64mm | |
| Safety Category Voltage | 600 V, 1000V | |
| Battery Type | AA | |
| Weight | 650g | |
| Battery Life | 120 h | |
| Maximum Operating Temperature | +50°C | |
| Display Type | LCD | |
| Safety Category | CAT III 1000 V, CAT IV 600V | |
| Select all | ||
|---|---|---|
Brand Fluke | ||
Absolute Maximum DC Current Measurement 100mA dc | ||
Connectivity Wireless | ||
Model Number A3003FC | ||
DC Current Measurement Resolution 100mA | ||
Best DC Current Accuracy ±(2% rdg +5 Digits) | ||
Clamp Meter Type DC Current Clamp Meter | ||
Jaw Capacity Busbars 64mm | ||
Functions Measured DC Current | ||
Minimum Operating Temperature -10°C | ||
Height 14mm | ||
Safety Category Level CAT III, CAT IV | ||
Dimensions 165 x 63.5 x 14mm | ||
Length 165mm | ||
Power Source Battery | ||
Width 64mm | ||
Safety Category Voltage 600 V, 1000V | ||
Battery Type AA | ||
Weight 650g | ||
Battery Life 120 h | ||
Maximum Operating Temperature +50°C | ||
Display Type LCD | ||
Safety Category CAT III 1000 V, CAT IV 600V | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
Fluke a3003 FC Wireless 2000 A DC Current Clamp Meter
The a3003 FC Wireless DC Current Clamp Meter is a fully functional current clamp meter that wirelessly relays measurements to other Fluke Connect™ enabled master units.
Measures from 10 A to 2000 A DC
Large jaw size (64 mm) for measuring large, high current conductors
Use the logging function for the recording and saving up to 65,000 measurements
Large jaw size (64 mm) for measuring large, high current conductors
Use the logging function for the recording and saving up to 65,000 measurements
Standards
IEC 61010-1, 600 V CAT IV / 1000 V CAT III, 3rd edition
Supplied with

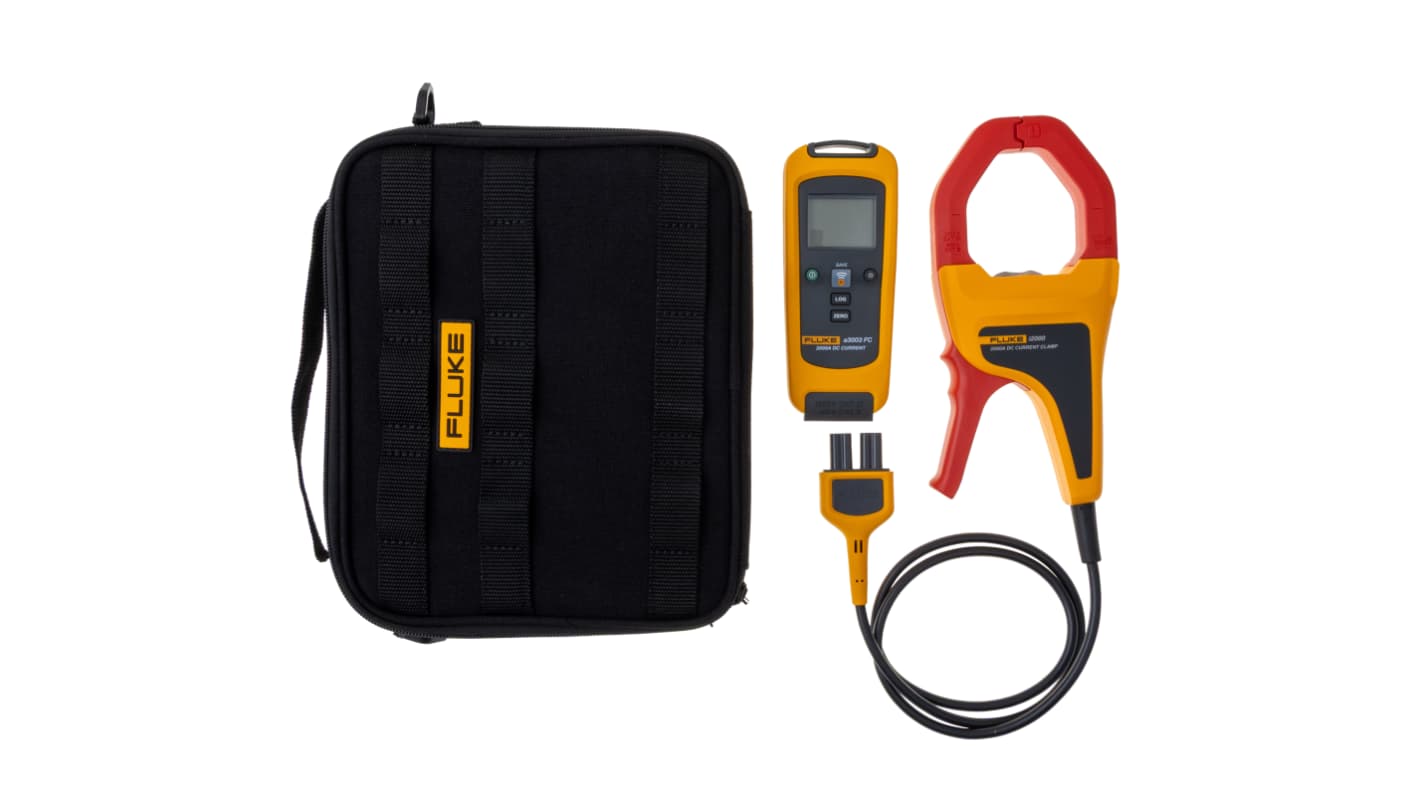

Fluke a3003 FC, DC current module, batteries, hanging strap magnet and quick start guide.
Fluke CONNECT™
Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field.
The Fluke Connect mobile app is available for Android™ (4.3 and up) and iOS (4s and later) and works with over 20 different Fluke products, the largest suite of connected test tools in the world. And more is on the way. Go to the Fluke website to find out more.
Make the best decisions faster than ever before by viewing all temperature, mechanical, electrical and vibration measurements for each equipment asset in one place.
(Not compatible with Fluke CNX test tools)
The Fluke Connect mobile app is available for Android™ (4.3 and up) and iOS (4s and later) and works with over 20 different Fluke products, the largest suite of connected test tools in the world. And more is on the way. Go to the Fluke website to find out more.
Make the best decisions faster than ever before by viewing all temperature, mechanical, electrical and vibration measurements for each equipment asset in one place.
(Not compatible with Fluke CNX test tools)
