Fluke A3001 FC Clamp Meter Wireless, Max Current 2500A ac CAT III 1000V With RS Calibration

View all Clamp Meters

Subtotal (1 unit)*

£323.68

(exc. VAT)

£388.42

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 13 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£323.68

*price indicative

RS Stock No.:
810-9102
Mfr. Part No.:
FLK-A3001 FC
Brand:
Fluke
Find similar products by selecting one or more attributes.
Select all

Brand

Fluke

Absolute Maximum AC Current Measurement

2500A ac

Connectivity

Wireless

Model Number

A3001 FC

Calibrated

RSCAL

AC Current Measurement Resolution

100mA

Clamp Meter Type

AC Current Clamp Meter

Best AC Current Accuracy

±(3% rdg +5 Digits)

Functions Measured

AC Current

True RMS

Yes

Jaw Capacity Busbars

254mm

Width

63.5mm

Power Source

Battery

Safety Category Voltage

600 V, 1000V

Battery Type

AA

Maximum Operating Temperature

+50°C

Display Type

LCD

Dimensions

14 x 63.5 x 165mm

Safety Category

CAT III 1000 V, CAT IV 600V

Minimum Operating Temperature

-10°C

Height

165mm

Weight

220g

Safety Category Level

CAT III, CAT IV

Battery Life

400 h

Length

14mm

RoHS Status: Exempt

COO (Country of Origin):
CN

Fluke a3001 FC Wireless iFlex AC Current Module Fluke CONNECT™


The Fluke a3001 FC Wireless iFlex AC Current Module is a fully functional true-RMS current meter that wirelessly relays measurements to other Fluke Connect™ enabled master units.

The iFlex™ Wireless Current Module allows you to measure around awkward sized conductors or get into tight spaces and makes wire access easier
Measure up to 2500 A ac
Use as a standalone meter or as part of the system
Logging function for recording and saving up to
65000 readings
Inrush function

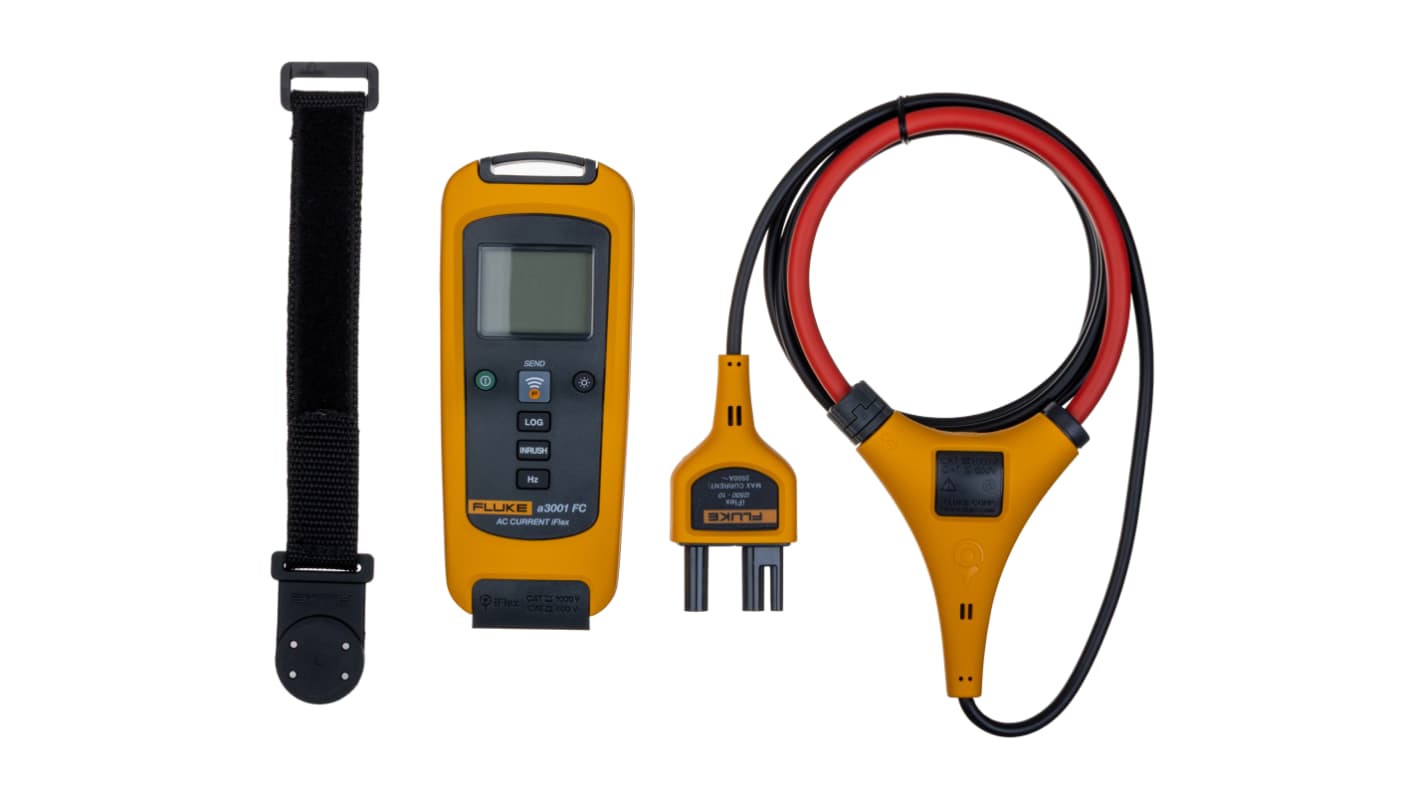

Supplied with

One true-rms flexible current meter and one iFlex i2500-10 Flexible Current Probe.

FLUKE Clamp Meter, 0 to 2500A AC Measuring Range, 220g Weight - 3000 FC Series - FLK-A3001 FC


Keen to keep your handheld measuring instrument in touch with your smartphone? Try this wireless current clamp meter from FLUKE. It conveniently sends measurements to a device equipped with FLUKE's Connect system, so you can easily save results on your mobile or share them with your colleagues. For safety, its wireless function lets you position your testing instrument rather than yourself near live electrical circuits to safely take readings from a distance. You're also free to get on with other tasks while your data automatically downloads. This clamp meter's backlit display makes results visible in most light conditions.

Features & Benefits


• Use as a standalone device or in a system, for versatility
• Light weight of 220g for easy transportation
• Large memory capacity stores up to 65,000 readings
• Electromagnetic compatibility for minimal electrical interference

Applications


• Pharmaceutical manufacturing
• Industrial process control
• Power utilities
• Public infrastructure

What's the operating temperature range of this clamp meter?


It performs in operating temperatures between -10°C and +50°C, making it reliable for use in harsh conditions.


Fluke CONNECT™


Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field.
The Fluke Connect mobile app is available for Android™ (4.3 and up) and iOS (4s and later) and works with over 20 different Fluke products, the largest suite of connected test tools in the world. And more is on the way. Go to the Fluke website to find out more.
Make the best decisions faster than ever before by viewing all temperature, mechanical, electrical and vibration measurements for each equipment asset in one place.
(Not compatible with Fluke CNX test tools)
