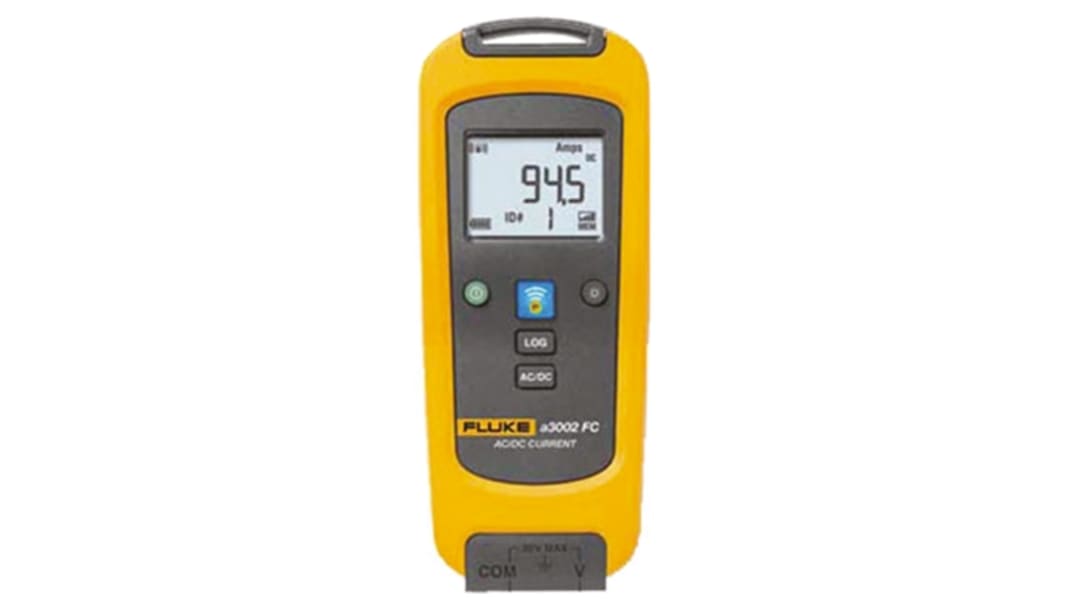

Fluke A3002 FC Clamp Meter Wi-Fi, 1000A dc, Max Current 600A ac CAT III 1000V
- RS Stock No.:
- 811-1379
- Mfr. Part No.:
- FLK-A3002 FC
- Brand:
- Fluke
Subtotal (1 unit)*
£160.59
(exc. VAT)
£192.71
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £160.59 |
*price indicative
- RS Stock No.:
- 811-1379
- Mfr. Part No.:
- FLK-A3002 FC
- Brand:
- Fluke
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Absolute Maximum AC Current Measurement | 600A ac | |
| Absolute Maximum DC Current Measurement | 1000A dc | |
| Model Number | A3002 FC | |
| Connectivity | Wi-Fi | |
| AC Current Measurement Resolution | 100mA | |
| DC Current Measurement Resolution | 100mA | |
| Best DC Current Accuracy | ±(0.5% rdg + 3Digits) | |
| Clamp Meter Type | AC/DC Clamp Meter | |
| Best AC Current Accuracy | ±(1% rdg + 3Digits) | |
| True RMS | Yes | |
| Functions Measured | AC Current, DC Current | |
| Dimensions | 38 x 66 x 160mm | |
| AC Current Measurement Range | 600 A | |
| Minimum Operating Temperature | -10°C | |
| Height | 160mm | |
| Weight | 255g | |
| Safety Category Level | CAT III, CAT IV | |
| Battery Life | 400 h | |
| Length | 38mm | |
| Width | 66mm | |
| Safety Category Voltage | 600 V, 1000V | |
| Battery Type | AA | |
| Maximum Operating Temperature | +50°C | |
| Display Type | LCD | |
| Safety Category | CAT III 1000 V, CAT IV 600V | |
| Power Source | Battery | |
| DC Current Measurement Range | 1000 A | |
| Select all | ||
|---|---|---|
Brand Fluke | ||
Absolute Maximum AC Current Measurement 600A ac | ||
Absolute Maximum DC Current Measurement 1000A dc | ||
Model Number A3002 FC | ||
Connectivity Wi-Fi | ||
AC Current Measurement Resolution 100mA | ||
DC Current Measurement Resolution 100mA | ||
Best DC Current Accuracy ±(0.5% rdg + 3Digits) | ||
Clamp Meter Type AC/DC Clamp Meter | ||
Best AC Current Accuracy ±(1% rdg + 3Digits) | ||
True RMS Yes | ||
Functions Measured AC Current, DC Current | ||
Dimensions 38 x 66 x 160mm | ||
AC Current Measurement Range 600 A | ||
Minimum Operating Temperature -10°C | ||
Height 160mm | ||
Weight 255g | ||
Safety Category Level CAT III, CAT IV | ||
Battery Life 400 h | ||
Length 38mm | ||
Width 66mm | ||
Safety Category Voltage 600 V, 1000V | ||
Battery Type AA | ||
Maximum Operating Temperature +50°C | ||
Display Type LCD | ||
Safety Category CAT III 1000 V, CAT IV 600V | ||
Power Source Battery | ||
DC Current Measurement Range 1000 A | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
Fluke a3002 FC Wireless AC/DC Current Module Fluke CONNECT™
The Fluke a3002 FC Wireless AC/DC Current Clamp Module is designed to be used with the i410 or i1010 AC/DC current clamps (not included with module). The a3002 FC AC/DC current module wirelessly relays measurements to other Fluke Connect™ enabled master units.
Measure up to 400 A AC or 400 A DC with i410 (sold separately)
Measure up to 600 A AC or 1000 A DC with i1010 (sold separately)
Use as a standalone meter or as part of the system
Logging function for recording and saving up to 65000 readings
Measure up to 600 A AC or 1000 A DC with i1010 (sold separately)
Use as a standalone meter or as part of the system
Logging function for recording and saving up to 65000 readings
FLUKE Current Module, 400 Hours Battery Life, 255g Weight - 3000 FC Series - FLK-A3002 FC
Store and log data from your measurement devices with this current module from FLUKE. It pairs with the i410 (237-4218) and i1010 (459-3001) current clamps to record read values. These can then be sent to devices enabled with FLUKE Connect software, including your smartphone and Ti401 thermal camera (186-4696). The instrument is WiFi-compatible for convenient data transmission. Thanks to its backlit LCD screen, you can keep an eye on readings, even in dark spots. It weighs just 255g, so it won't be a burden to carry around when you're on the go.
Features & Benefits
• Measuring ceilings of 600A AC and 1kA DC make it fit for use in heavy-duty applications
• Memory capacity of 65,000 readings for long-term data storage
• Powered by two AA batteries that provide up to 400 hours of operating life, giving you long-lasting service
• Memory capacity of 65,000 readings for long-term data storage
• Powered by two AA batteries that provide up to 400 hours of operating life, giving you long-lasting service
Applications
• HVAC systems
• Power transmission stations
• Oil and gas plants
• Power transmission stations
• Oil and gas plants
Is this module finger-safe?
Yes, its IP42 rating means it's protected from objects larger than 1mm in size. It also indicates the unit is shielded against falling drops of water.
Fluke CONNECT™
Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field.
The Fluke Connect mobile app is available for Android™ (4.3 and up) and iOS (4s and later) and works with over 20 different Fluke products, the largest suite of connected test tools in the world. And more is on the way. Go to the Fluke website to find out more.
Make the best decisions faster than ever before by viewing all temperature, mechanical, electrical and vibration measurements for each equipment asset in one place.
(Not compatible with Fluke CNX test tools)
The Fluke Connect mobile app is available for Android™ (4.3 and up) and iOS (4s and later) and works with over 20 different Fluke products, the largest suite of connected test tools in the world. And more is on the way. Go to the Fluke website to find out more.
Make the best decisions faster than ever before by viewing all temperature, mechanical, electrical and vibration measurements for each equipment asset in one place.
(Not compatible with Fluke CNX test tools)
