Fluke 902 FC Clamp Meter, 200 μA 600 A 600 V dc 600 V ac CAT III, CAT IV Non-Contact Voltage Detector, RSCAL

View all Clamp Meters

Subtotal (1 unit)*

£459.00

(exc. VAT)

£550.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£459.00

*price indicative

RS Stock No.:
917-6698
Mfr. Part No.:
FLUKE-902 FC
Brand:
Fluke
Find similar products by selecting one or more attributes.
Select all

Brand

Fluke

Product Type

Clamp Meter

Maximum DC Current Measurement

200μA

Resistance Resolution

1Ω

Maximum AC Voltage Measurement

600V ac

Maximum DC Voltage Measurement

600V dc

Maximum Resistance Measurement

6mΩ

Model Number

902 FC

Resistance Measurement Accuracy

1 % rgd ± 5 % Digits

AC Current Resolution

0.1A

DC Voltage Resolution

100 mV dc

AC Voltage Resolution

100mV ac

Minimum Operating Temperature

-10°C

AC Current Accuracy

±2 % rdg + 5 Digits

Temperature Resolution

0.1°C

AC Voltage Accuracy

±1 % rdg + 5 Digits

DC Current Accuracy

±1 % rdg + 4 Digits

DC Current Resolution

0.1μA

DC Voltage Accuracy

±1 % rdg + 5 Digits

Temperature Measurement Accuracy

1 % rgd ± 8 Digits %

Clamp Meter Type

HVAC Clamp Meter

Maximum Operating Temperature

50°C

Height

230mm

Length

45.4mm

Weight

419g

Standards/Approvals

IEC 61010-1IEC 61010-2-032: CAT III 1000 V / CAT IV 600 VIEC 61010-2-033: CAT III 1000 V / CAT IV 600 VIEC 60529: IP30non-operatingFCC ID:T68-FBLEIC:6627A-FBLEIEC 61326-1IEC 61326-2-2CISPR 11: Group 1Class AKCC: Class A EquipmentFCC: 47 CFR 15 subpart B

Width

83.7mm

Functions Measured

AC Current, DC Current, Capacitance, AC Voltage, Temperature, Resistance, Continuity, DC Voltage

True RMS

Yes

Non-Contact Voltage Detector

Yes

Maximum Temperature Measurement

400°C

Maximum AC Current Measurement

600A

Calibrated

RSCAL

Battery Type

AA Alkaline

Safety Category Level

CAT III, CAT IV

Power Source

Battery

Safety Category Voltage

600, 300V

Battery Life

12h

Display Type

LCD

RoHS Status: Exempt

COO (Country of Origin):
CN

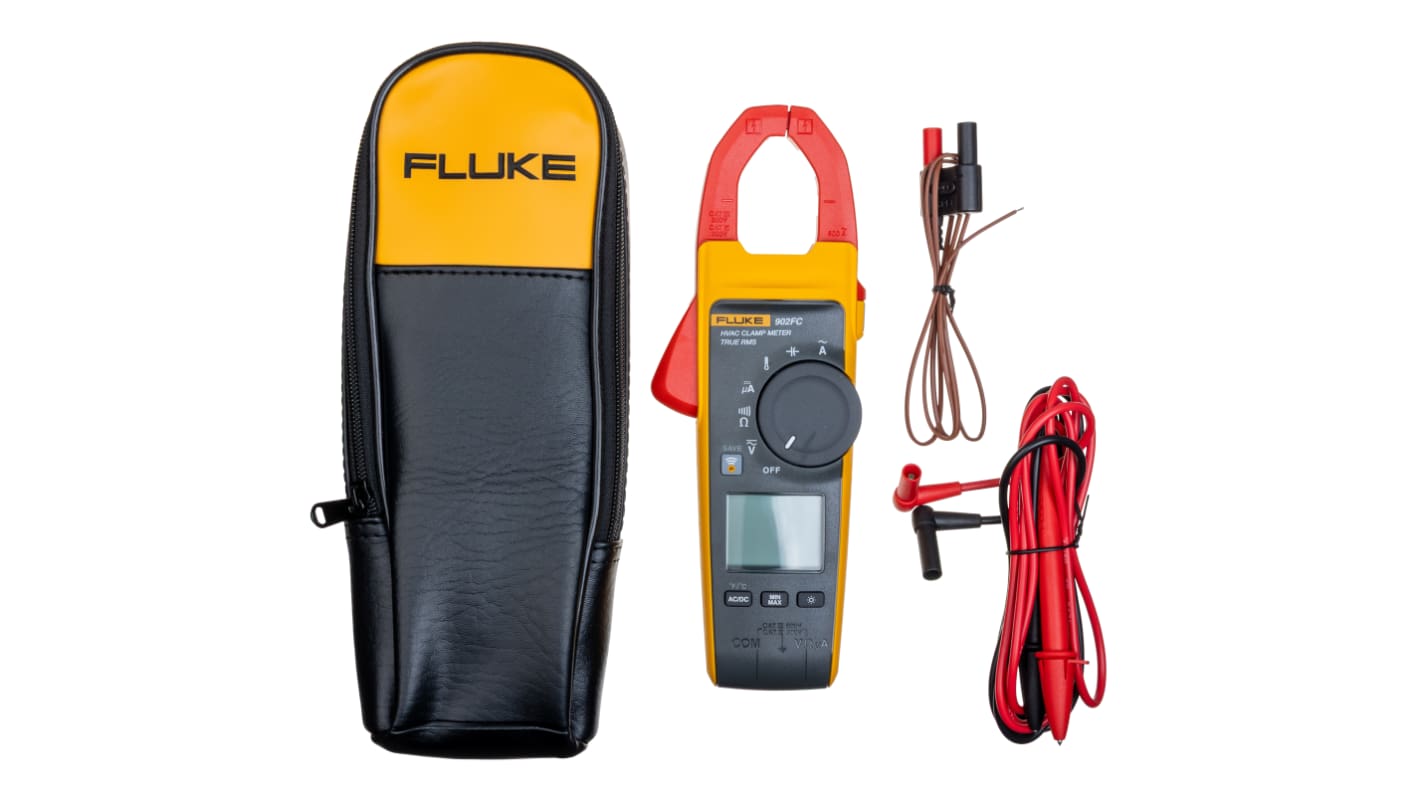

Fluke Clamp Meter, 600A Maximum AC Current Measurement, 600V Maximum AC Voltage Measurement - FLUKE-902 FC


This clamp meter is a wireless HVAC test instrument designed to measure electrical and thermal parameters on site while enabling remote data capture. It provides true‑RMS readings for accurate assessment of non‑linear signals and integrates with a wireless system to transmit measurements for field analysis and reporting.

Features & Benefits


• 600A AC jaw range delivers high‑current diagnostics for large circuits
• 600V AC/DC capability allows safe measurement of typical service voltages
• True‑RMS measurement ensures accurate readings on non‑sinusoidal waveforms
• Temperature span to 400°C supports heating element and flue checks
• μA DC range measures low‑level flame sensor currents precisely
• NCV built into the tool permits live‑voltage detection without contact

**Applications**


• Suitable for commissioning and fault‑finding on HVAC air‑handling units
• Ideal for verifying compressor and fan motor currents on site
• Used for checking flame sensor microcurrents in gas burners
• Can be used to capture temperature and capacitance during maintenance
• Used with preventative maintenance programmes to log historic measurements

How are measurement records captured and shared during inspections?


Measurements transmit wirelessly to Cloud storage where they can be trended and exported, and live readings may be viewed remotely on a compatible mobile device.

What battery arrangement and runtime should a field Engineer expect?


The instrument runs from two AA alkaline cells and provides around 12 hours’ operation under typical use.

How does the meter cope with fluctuating signals during motor start‑up?


Min/max recording captures transient peaks automatically while crest‑factor handling maintains accuracy at elevated waveform distortion.

What protection ratings and environmental limits apply to the instrument?


It meets IEC safety categories for 600V and 300V installations and operates between −10°C and +50°C with specified humidity limits for reliable field use.
