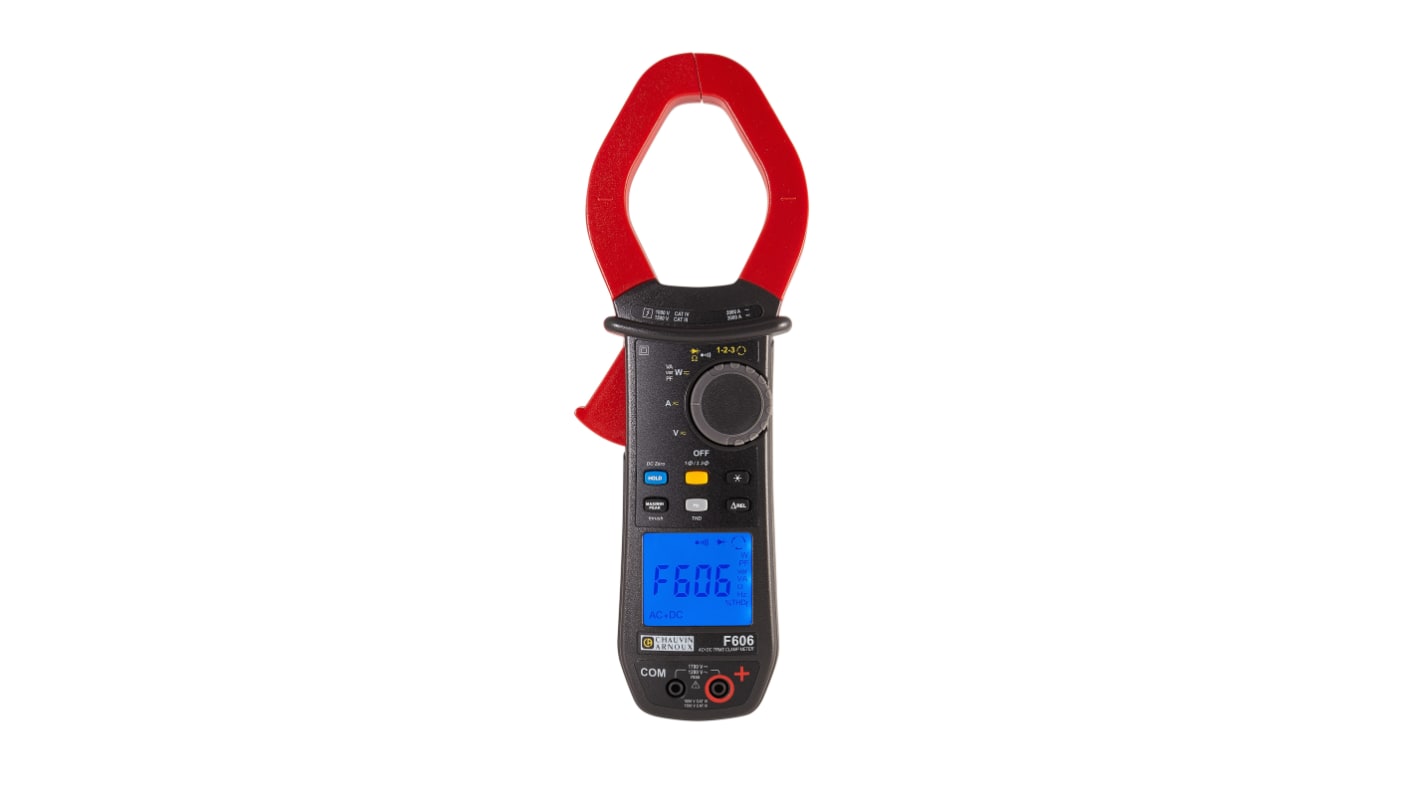

Chauvin Arnoux F606 Clamp Meter, 3000A dc, Max Current 3000A ac CAT III 1000V With RS Calibration

View all Clamp Meters
Currently unavailable
Sorry, we don't know when this will be back in stock.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Chauvin Arnoux F606 Clamp Meter, 3000A dc, Max Current 2000A ac CAT III 1500V
RS Stock No.
766-0624

Each

£595.03

(exc. VAT)

£714.04

(inc. VAT)

RS Stock No.:
766-2936
Mfr. Part No.:
P01120965
Brand:
Chauvin Arnoux
Find similar products by selecting one or more attributes.
Select all

Brand

Chauvin Arnoux

Absolute Maximum AC Current Measurement

3000A ac

Absolute Maximum DC Current Measurement

3000A dc

Absolute Maximum AC Voltage Measurement

1400V ac

Absolute Maximum DC Voltage Measurement

1400V dc

Absolute Maximum Resistance Measurement

99.99W

Model Number

F606

Calibrated

RSCAL

Best DC Current Accuracy

±1% + 3 Digits

Clamp Meter Type

AC/DC Clamp Meter

Best AC Current Accuracy

±1% +3 digits

Best AC Voltage Accuracy

±1% + 3 Digits

Best DC Voltage Accuracy

±1% + 3 Digits

True RMS

Yes

Functions Measured

AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature

Weight

640g

Maximum Conductor Size

60mm

Height

296mm

Dimensions

111 x 41 x 296mm

Length

111mm

Safety Category Level

CAT III, CAT IV

Power Source

Battery

Display Type

LCD

Safety Category

CAT III 1000 V, CAT IV 1000V

Battery Type

AA

Safety Category Voltage

1000V

Width

41mm

COO (Country of Origin):
CN

F605 AC/DC TRMS Clampmeter


The F605 clampmeter is designed for the high-power LV market in sectors such as elctrical power distribution, chemical and petrochemical industries, metallurgy, transport
The main applications are maintenance, testing, monitoring, diagnostics, sizing connection
Equipped with a fast 12-bit TRMS digital acquisition system
The large backlit triple display makes it easy to read in all circumstances
Automatic AC/DC detection
W/VA/var and PF power values
THD-f and THD-r
Resistance and audible continuity
Min, Max and Peak± analysis on all functions
Phase rotation
Relative and differential measurements
TrueInrush current measurements
IP54 protection

Clamp multimeter F606


2,000 A TRMS AC+DC multimeter clamp
With protection against electric shocks up to 12 kV, the F600 Series fulfils the most demanding safety criteria (CAT IV 1,000 V) and offers a high protection rating allowing users to work in total safety on all LV installations.
The F600 Series is ideal for high-power applications such as electrical power distribution, chemical and petrochemical industries, metallurgy, rail transport, etc.

Equipped with a fast 12-bit TRMS digital acquisition system, F606 clamps offer particularly accurate measurements whatever the signal's waveform.

Specifications:


• Clamping diameter: 60 mm
• Current: 2,000 A AC / 3,000 A DC
• Voltage up to 1,200 VAC / 1,700 VDC
• Resistance and audible continuity
• Power values (W, var, VA, PF) and harmonics (THDf, THDr)
• "2-wire method" phase rotation
• Automatic AC/DC detection
• TrueInrush current measurement
• Min, MAX, Peak+, Peak-
• RELative (ΔX) and differential (ΔX/X) measurements
• CAT IV 1,000 V / CAT III 1,500 V
• IP54 protection rating
