RS PRO Clamp Meter, 999.9 A 999.9 A 999.99 V dc 999.99 V ac CAT III, CAT IV Non-Contact Voltage Detector RSCAL

View all Clamp Meters

Subtotal (1 unit)*

£415.91

(exc. VAT)

£499.09

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 16 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£415.91

*price indicative

RS Stock No.:
124-2007
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Clamp Meter

Maximum DC Current Measurement

999.9A

Maximum AC Voltage Measurement

999.99V ac

Maximum DC Voltage Measurement

999.99V dc

Maximum Resistance Measurement

99.99kΩ

DC Current Accuracy

±1.7 % rdg + 2 Digits

AC Voltage Accuracy

±1 % rdg + 5 Digits

AC Current Accuracy

±1.5 % rdg + 5 Digits

Minimum Operating Temperature

0°C

Temperature Measurement Accuracy

± (1% + 2°F), ± (1% + 2°C) (-50°C-99.9°C),± (1% + 1°C) (100°C-399.9°C,400°C-1000°C), °F (212.0°F-751.9°F,752°F-1832°F), ± (1% + 4°F) (-58°F-211.9°F)

DC Voltage Accuracy

±0.7 % rdg + 2 Digits

Clamp Meter Type

AC/DC Clamp Meter

Maximum Operating Temperature

50°C

Height

242mm

Length

87.5mm

Width

50.5mm

Standards/Approvals

EN 613261, EN50419:2006, IEC 610101

Weight

435g

Functions Measured

Resistance, Total Harmonic Distortion, Power Factor, Power, Current, DC, Individual Harmonics, Temperature, Capacitance, Diode, Voltage, Frequency, Inrush Current, Continuity

True RMS

Yes

Non-Contact Voltage Detector

Yes

Calibrated

RSCAL

Maximum AC Current Measurement

999.9A

Maximum Temperature Measurement

1000°C

Maximum Conductor Size

42mm

Safety Category Voltage

1000V dc

Safety Category Level

CAT III, CAT IV

Battery Type

9V Alkaline

Battery Life

50h

Display Type

Digital

Power Source

Battery

COO (Country of Origin):
TW

RS Pro IPM242 Power Clampmeter


From RS PRO, this IPM242 clamp meter serves as a first line of defence for spot checking and verifying system conditions before deploying more specialised tools. Featuring a full range of diagnostic capabilities including phase sequence, power & power factor, total harmonics distortion & individual harmonics, inrush current and low pass filter, They are rated CAT IV 600 V, CAT III 1000 V with voltage measurement up to 1000 V ac/dc. The new innovative navigation system eliminates confusing push buttons, and replaces them with a single joystick allowing the selection of functions directly on the display.

It functions as a multimeter and analyzer with a clamp that is Ideal for multifunctions including current and voltage measurements.

Battery-powered for maximum portability, and with a large backlit screen, this current clamp meter is Ideal for on-the-go applications in almost any environment.

It is also supplied in a carry case to keep the clampmeter safe and secure during transit.

Features and Benefits

• 10000 Count digital display

• Active display backlight and analogue bargraph

• VoltSense (Non-contact Voltage measurement)

• True RMS reading on AC and AC+DC mode

• Auto torch-light for viewing easily while clamping conductors

• AC 600 Amp capability

• Auto AC-DC 1000 V capability and selection

• Auto Ohms/Continuity/Diode selection

• 100 kΩ resistance capability

• Continuity beeper

• Frequency counter

• Power and power factor measurement

• Total harmonics distortion and % harmonics 1 to 25

• Capacitance capability

• °C / °F temperature measurement function

• DC μA for flame rod testing

• Inrush current

• Peak HOLD

• MIN/MAX HOLD

• Smart Data HOLD

• Phase rotation indication

• Low pass filter

• Auto power off

• Safety Standard: IEC 61010-1 CAT IV 600 V / CAT. III 1000 V

Applications

This multifunction current clamp meter is designed for current measurement in electrical testing, and combines a digital multimeter with a clamping current sensor. The nature of the clamp means that it can fit around a wire at any point to sense AC and DC Current as well as inrush current. This has the advantage of allowing electricians to take a reading from a wire without touching it, which is both more convenient and safer than other methods.

They are used for measuring high levels of current in service and maintenance applications. They are also used when installing electrical equipment.

True RMS (Root Mean Square) reading has advantages over average RMS reading in that it compensates for interfering electronic loads or distorted sinewaves to give an accurate reading.

Why RS PRO?

RS PRO aims to be your go-to brand when you need reliability, quality, and affordability. We source high-quality tools and parts from trusted sources and employ expert testing to build a brand you can rely on.

When it comes to test and measurement equipment, RS PRO has an extensive range of solutions. From electrical to environmental measurement, we offer calibrated and multi-function instruments to suit your needs.

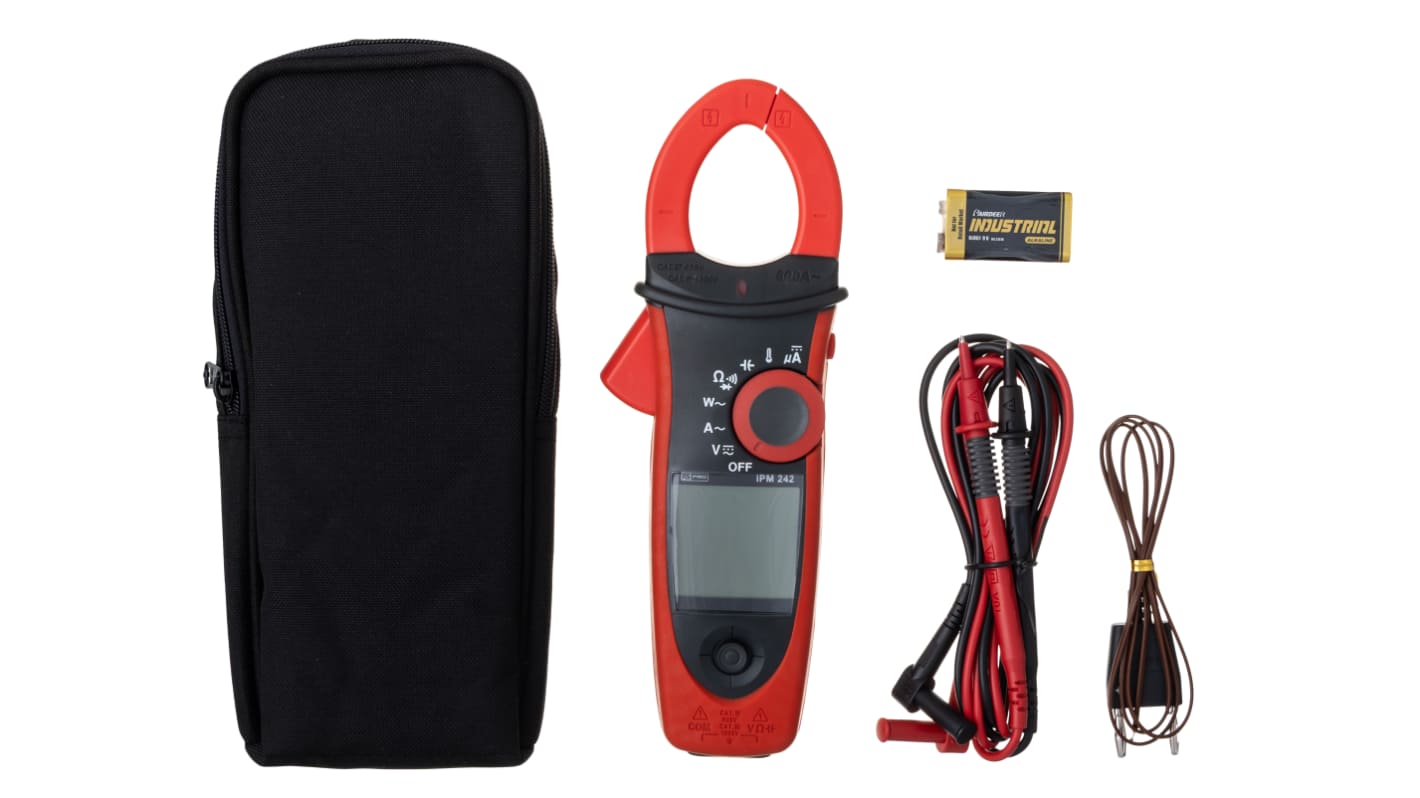

Supplied with

IPM242 power clamp meter, test leads set (1 x black & 1 x red), temperature probe, carrying case,
9 V alkaline battery (supplied and pre-installed) and instruction manual
