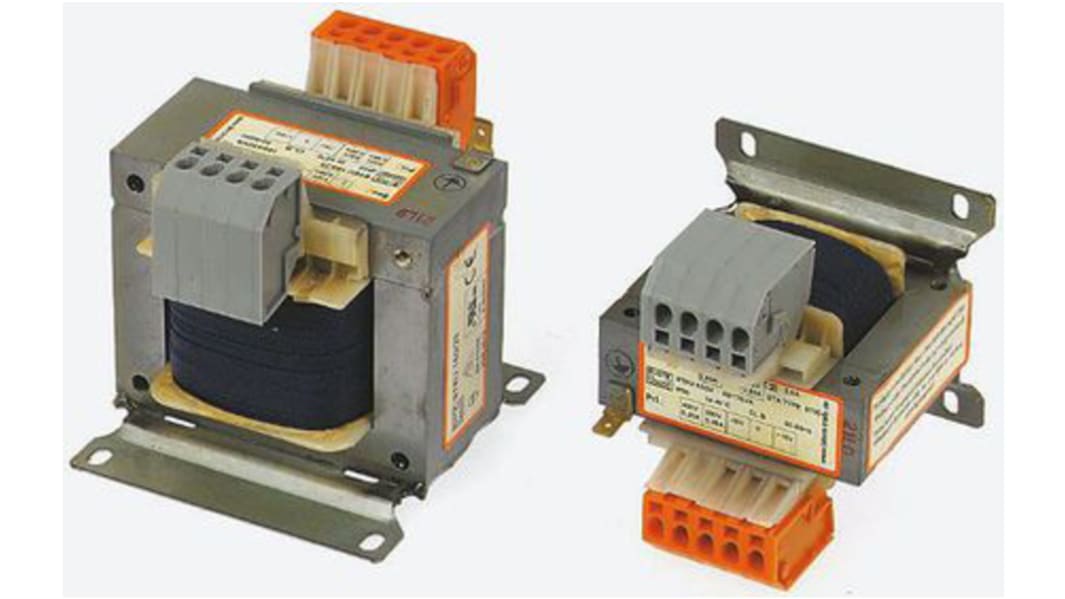

Block 1.6kVA 2 Output Chassis Mounting Transformer, 2 x 115V ac
- RS Stock No.:
- 436-9864
- Mfr. Part No.:
- STEU1600/23
- Brand:
- Block
Bulk discount available
Subtotal (1 unit)*
£417.34
(exc. VAT)
£500.81
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £417.34 |
| 25 + | £401.89 |
*price indicative
- RS Stock No.:
- 436-9864
- Mfr. Part No.:
- STEU1600/23
- Brand:
- Block
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Block | |
| Primary Voltage Rating | 230/400V ac | |
| Secondary Voltage Rating | 2 x 115V ac | |
| Power Rating | 1.6kVA | |
| Number of Outputs | 2 | |
| Length | 192mm | |
| Width | 192mm | |
| Depth | 161mm | |
| Dimensions | 192 x 181 x 161mm | |
| Weight | 21kg | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Maximum Temperature | +40°C | |
Select all | ||
|---|---|---|
Brand Block | ||
Primary Voltage Rating 230/400V ac | ||
Secondary Voltage Rating 2 x 115V ac | ||
Power Rating 1.6kVA | ||
Number of Outputs 2 | ||
Length 192mm | ||
Width 192mm | ||
Depth 161mm | ||
Dimensions 192 x 181 x 161mm | ||
Weight 21kg | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Maximum Temperature +40°C | ||
- COO (Country of Origin):
- DE
Safety Isolating Transformer
Safety isolating and isolating control transformers
Twin secondary winding for series or parallel connection
63,100,160 and 250VA transformers can be mounted on standard 35mm DIN rail
All units have 4 hole panel mount fixings
Easy installation 4mm² cage clamp terminals
Insulation catagory Class B
Twin secondary winding for series or parallel connection
63,100,160 and 250VA transformers can be mounted on standard 35mm DIN rail
All units have 4 hole panel mount fixings
Easy installation 4mm² cage clamp terminals
Insulation catagory Class B
Primary connections 0V, -15V, +15V, 230V, 400V. The + 15 and -15V allows you to offset the primary Voltage by 15V
Low inrush current
High efficiency, low regulation
Low inrush current
High efficiency, low regulation
Standards
EN 61558, VDE0570
Approvals
UL Recognised Component for Canada & US
Approvals
UL Recognised Component for Canada & US
Standards
EN 61558, VDE0570
