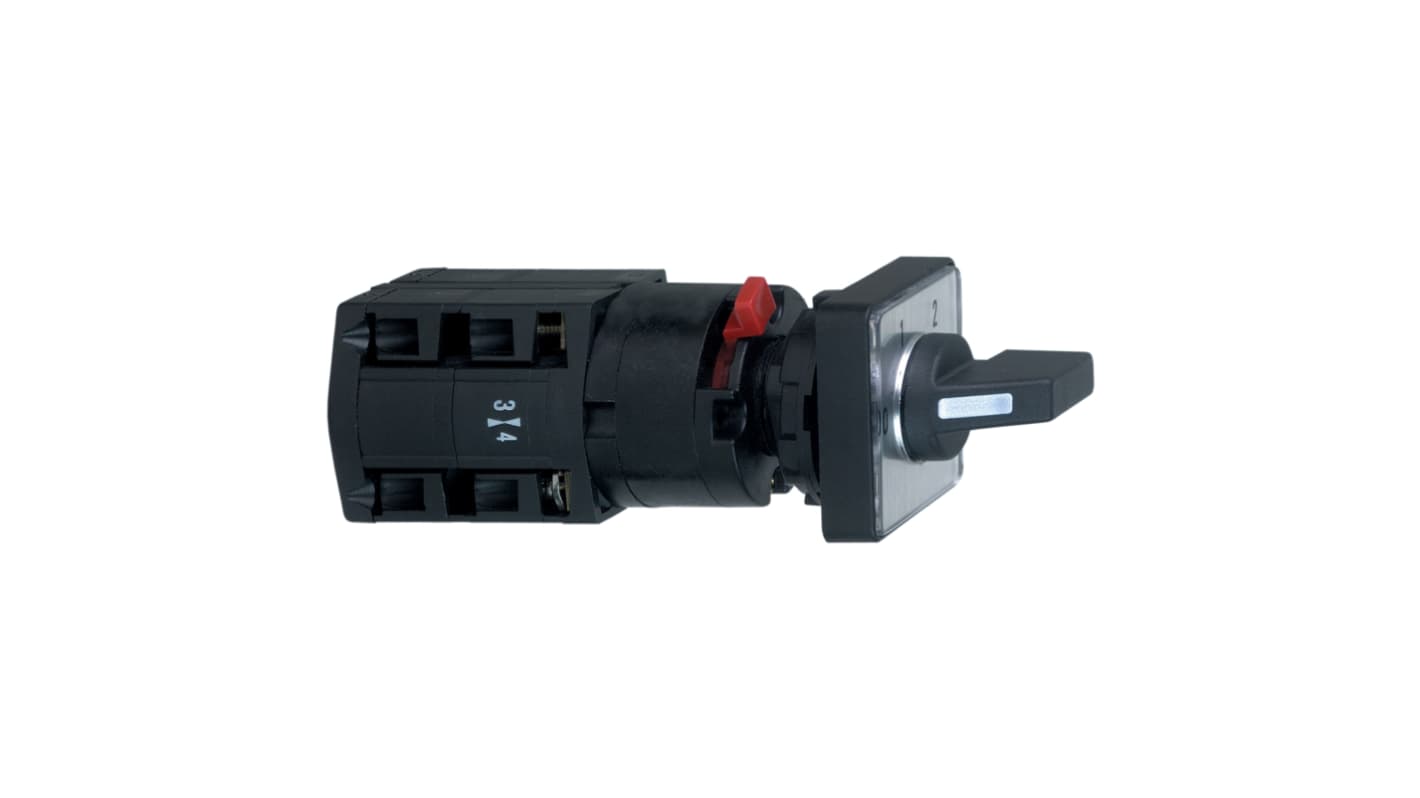

Schneider Electric 3 Position 60 °, Handle Actuator 10 A
- RS Stock No.:
- 655-181
- Mfr. Part No.:
- K10D012UCH
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£36.70
(exc. VAT)
£44.04
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £36.70 |
*price indicative
- RS Stock No.:
- 655-181
- Mfr. Part No.:
- K10D012UCH
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Rotary Cam Switch | |
| Series | K1 | |
| Electrical Phase | 3, 1 | |
| Mount Type | Front | |
| Number of Positions | 3 | |
| Angle of Throw | 60 ° | |
| Contact Current | 10A | |
| Minimum Operating Temperature | -20°C | |
| Actuator Type | Handle | |
| Maximum Operating Temperature | 55°C | |
| Hazardous Area Certification | NO | |
| Depth | 88mm | |
| Standards/Approvals | RoHS, WEEE, REACH, EAN | |
| Width | 3mm | |
| Length | 41mm | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Rotary Cam Switch | ||
Series K1 | ||
Electrical Phase 3, 1 | ||
Mount Type Front | ||
Number of Positions 3 | ||
Angle of Throw 60 ° | ||
Contact Current 10A | ||
Minimum Operating Temperature -20°C | ||
Actuator Type Handle | ||
Maximum Operating Temperature 55°C | ||
Hazardous Area Certification NO | ||
Depth 88mm | ||
Standards/Approvals RoHS, WEEE, REACH, EAN | ||
Width 3mm | ||
Length 41mm | ||
- COO (Country of Origin):
- AT
The Schneider Electric Cam switch is designed for robust electrical control, specifically suited for front mounting in panel cut-outs of Ø 16 or 22 mm. This high-performance 2-pole changeover switch offers a reliable solution for managing electrical loads with a maximum switching angle of 60°. With an IP65 rating for the operating head and IP20 for the contact block, it ensures protection against dust and water ingress, confirming its durability even in harsh environments. Its compact dimensions simplify installation, while its diverse switching positions enhance functionality, making it an ideal choice for versatile applications across various sectors.
Front mounting with a fixing mode compatible with Ø 16 or 22 mm holes
Compact design with an overall width and height of 30 mm and depth of 88 mm
Electrical durabilities up to 100 million cycles for long-term reliability
Rated operational current of 10 A at 400 V AC for high-capacity applications
Conforms to IEC standards, ensuring compliance and safety
Mechanical durability rated at 1,000,000 cycles for enhanced endurance
Includes a black handle for easy operation and functionality
Designed with slow-break contact operation for improved performance
Equipped with captive screw clamp terminals to accommodate 2 x 1.5 mm² connections
Wide ambient operating temperature range of -20 to 55 °C ensures versatility in installation
