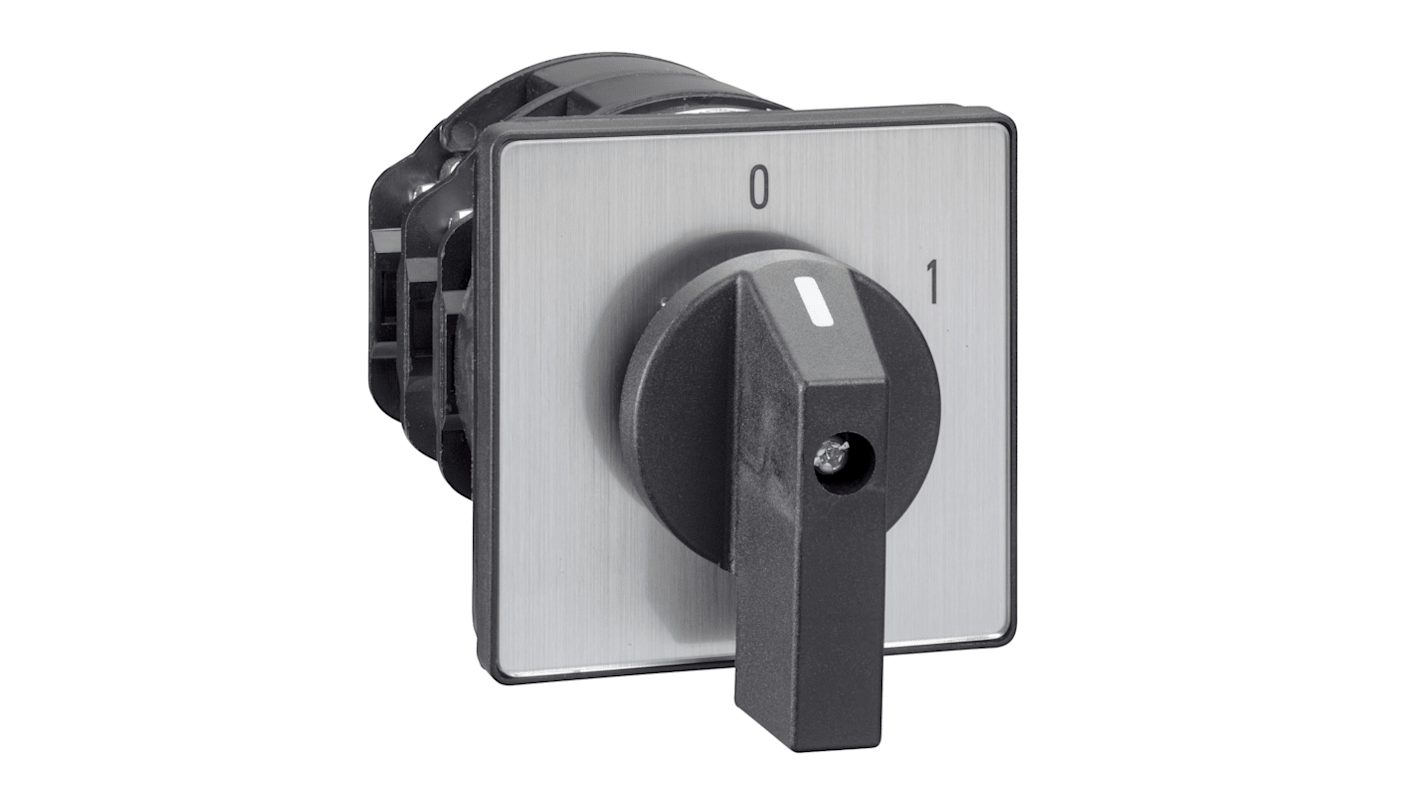

Schneider Electric 3 Position 60 °, Rotary Handle Actuator 150 A
- RS Stock No.:
- 119-323
- Mfr. Part No.:
- K150H004UP
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£902.92
(exc. VAT)
£1,083.50
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £902.92 |
*price indicative
- RS Stock No.:
- 119-323
- Mfr. Part No.:
- K150H004UP
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Series | Harmony K | |
| Product Type | Cam Switch | |
| Electrical Phase | 1, 3 | |
| Mount Type | Screw | |
| Number of Positions | 3 | |
| Terminal Type | Screw Clamp | |
| Number of Poles | 4 | |
| Angle of Throw | 60 ° | |
| IP Rating | IP40 | |
| Contact Current | 150A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Contact Voltage | 690V | |
| Actuator Type | Rotary Handle | |
| Depth | 205mm | |
| Length | 88mm | |
| Width | 88mm | |
| Standards/Approvals | RoHS, IEC 60947-3 | |
| Hazardous Area Certification | NO | |
| Mechanical Life | 300000Cycles | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Series Harmony K | ||
Product Type Cam Switch | ||
Electrical Phase 1, 3 | ||
Mount Type Screw | ||
Number of Positions 3 | ||
Terminal Type Screw Clamp | ||
Number of Poles 4 | ||
Angle of Throw 60 ° | ||
IP Rating IP40 | ||
Contact Current 150A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Contact Voltage 690V | ||
Actuator Type Rotary Handle | ||
Depth 205mm | ||
Length 88mm | ||
Width 88mm | ||
Standards/Approvals RoHS, IEC 60947-3 | ||
Hazardous Area Certification NO | ||
Mechanical Life 300000Cycles | ||
The Schneider Electric high-quality cam changeover switch is an essential component for ensuring efficient electrical operations. With a 4-pole design, 60° switching angle, and a maximum current rating of 150 A, this switch offers reliable performance for various applications.
Features a 4-pole design for versatile switching capabilities
Can handle a maximum current of 150 A for robust performance
Provides IP40 protection for added safety
Includes captive screw clamp terminals for easy electrical connections
