Schneider Electric, DP 2 Position 60° Rotary Cam Switch, 440V ac, 10A, Handle Actuator
- RS Stock No.:
- 218-175
- Mfr. Part No.:
- K10B002ACH
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£28.52
(exc. VAT)
£34.22
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £28.52 |
*price indicative
- RS Stock No.:
- 218-175
- Mfr. Part No.:
- K10B002ACH
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Pole and Throw Configuration | DP | |
Cam Switch Type | Rotary Cam Switch | |
Series | Harmony | |
Electrical Phase | 1 | |
Maximum Current | 10A | |
Maximum Voltage | 440V ac | |
Number of Positions | 2 | |
Terminal Type | Screw | |
Angle of Throw | 60° | |
Depth | 76mm | |
Actuator Type | Handle | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Pole and Throw Configuration DP | ||
Cam Switch Type Rotary Cam Switch | ||
Series Harmony | ||
Electrical Phase 1 | ||
Maximum Current 10A | ||
Maximum Voltage 440V ac | ||
Number of Positions 2 | ||
Terminal Type Screw | ||
Angle of Throw 60° | ||
Depth 76mm | ||
Actuator Type Handle | ||
RoHS Status: Exempt
- COO (Country of Origin):
- AT

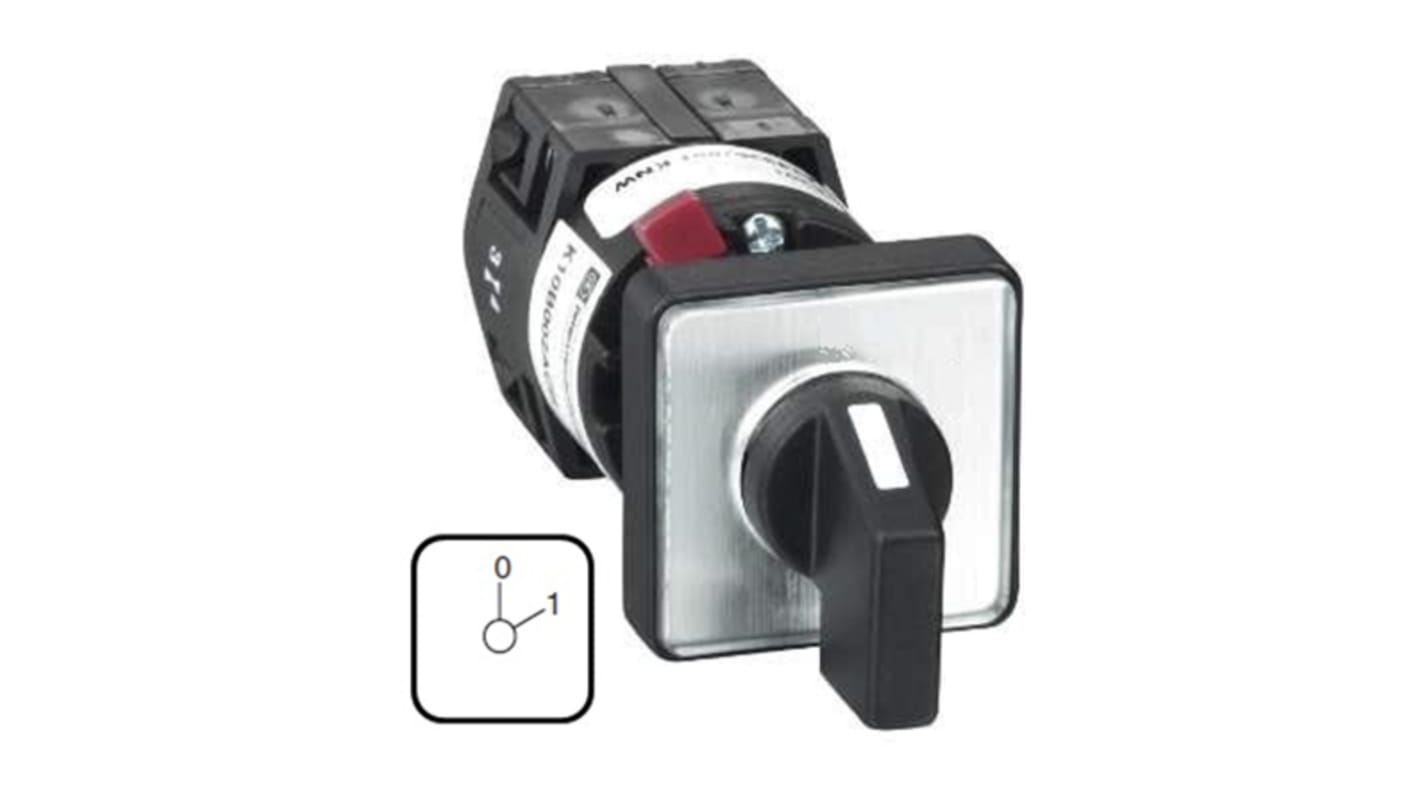

Schneider Electric Rotary Cam Switch, 2 Positions, 10A Maximum Current - Harmony K Series - K10B002ACH
To switch equipment on and off, or control other functions, choose this rotary cam switch from Schneider Electric. Simply turn the knob 60° clockwise to manually open a circuit and activate machinery. It comes supplied with a contact block so it's simple to install, and it's front-mounted, which makes it easy to access and operate. The metal legend has the two positions clearly marked in black so you can see when a process or machine is running.
• Operating temperature range between -20°C and +55°C for use in harsh conditions
• Slow break contacts ensure a higher minimum actuation speed and prevent delays in starting or stopping functions
• Captive screw clamp terminals keep electrical connections secure for reliable and effective operations
• Slow break contacts ensure a higher minimum actuation speed and prevent delays in starting or stopping functions
• Captive screw clamp terminals keep electrical connections secure for reliable and effective operations
Applications
• Control panels
• Medical and diagnostic equipment
• Agricultural machinery
• Medical and diagnostic equipment
• Agricultural machinery
What is a rotary switch?
Rotary switches control equipment by rotating between multiple positions, letting you select different electrical circuits or states within a device. Conventional switches, by contrast, typically access only two positions (on and off).
