Moflash A2EX Series Brass Nickel Plated Brass Cable Gland, M20 Thread, 11mm min., 15mm max., IP66, IP68
- RS Stock No.:
- 901-0646
- Mfr. Part No.:
- 50201
- Brand:
- Moflash
Subtotal (1 unit)*
£13.08
(exc. VAT)
£15.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 70 unit(s) ready to ship
- Plus 39 unit(s) ready to ship from another location
- Plus 40 unit(s) shipping from 17 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £13.08 |
*price indicative
- RS Stock No.:
- 901-0646
- Mfr. Part No.:
- 50201
- Brand:
- Moflash
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Moflash | |
Thread Size | M20 | |
Maximum Cable Diameter | 15mm | |
Minimum Cable Diameter | 11mm | |
Material | Nickel Plated Brass | |
Colour | Brass | |
Series | A2EX | |
IP Rating | IP66, IP68 | |
Locknut Included | No | |
Hazardous Area Certification | ATEX | |
Maximum Operating Temperature | +95°C | |
Minimum Operating Temperature | -20°C | |
Operating Temperature Range | -20 → +95 °C | |
Select all | ||
---|---|---|
Brand Moflash | ||
Thread Size M20 | ||
Maximum Cable Diameter 15mm | ||
Minimum Cable Diameter 11mm | ||
Material Nickel Plated Brass | ||
Colour Brass | ||
Series A2EX | ||
IP Rating IP66, IP68 | ||
Locknut Included No | ||
Hazardous Area Certification ATEX | ||
Maximum Operating Temperature +95°C | ||
Minimum Operating Temperature -20°C | ||
Operating Temperature Range -20 → +95 °C | ||

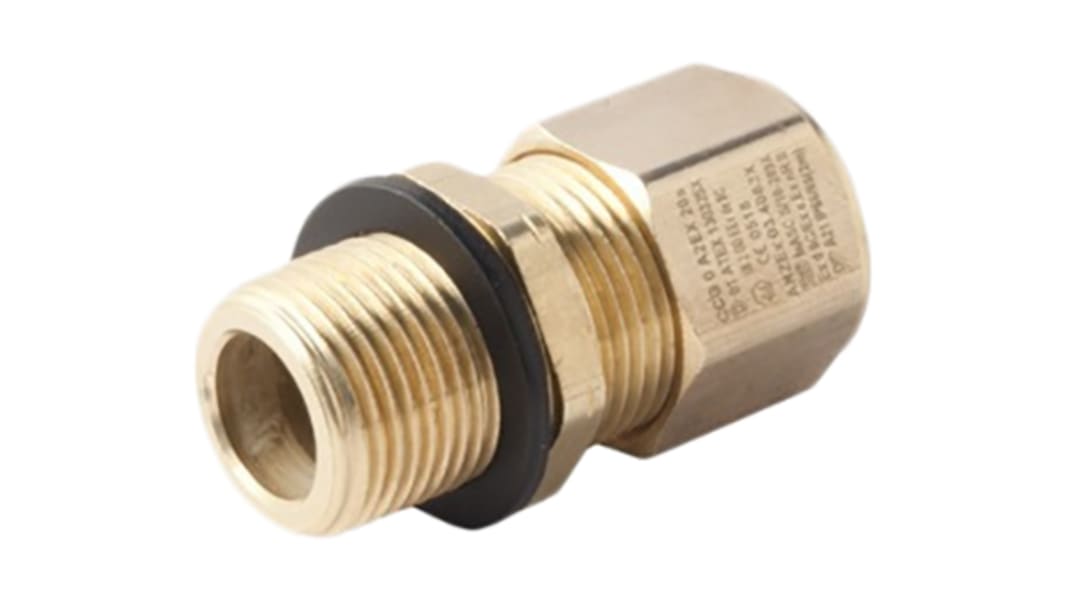

Moflash Cable Gland Without Locknut, 15mm, M20 Thread Size - A2EX Series - 50201
Use this cable gland from Moflash for cables laid outdoors, in harsh environments or passed through plating or bulkheads. It's suitable for use with all types of power, data and telecommunication cabling with diameters of 11 to 15mm. The gland's tough nickel-plated brass construction provides superior strength and conductivity combined with corrosion resistance. The elastomer seal gives excellent protection against dust and fluids, so you can use this product in harsh industrial or outdoor environments and be confident of a long service life.
Features and Benefits
• Inner seals on the cable sheath give superior protection against fluids and gases
• Operating temperature ranges between -20°C and +95°C for use in demanding environments
• Endcap safety gauge for correct gland selection
• Ingress protection ratings of IP66 and IP68 mean it's dust-tight and water-resistant
• Operating temperature ranges between -20°C and +95°C for use in demanding environments
• Endcap safety gauge for correct gland selection
• Ingress protection ratings of IP66 and IP68 mean it's dust-tight and water-resistant
Application Information
• Oil and gas industries
• Marine environments
• Manufacturing
• Marine environments
• Manufacturing
How does a cable gland work?
A cable gland has a central tubular body through which cabling can pass. A nut compresses a cone-shaped attachment, which secures the cable and fixes a seal onto it.
