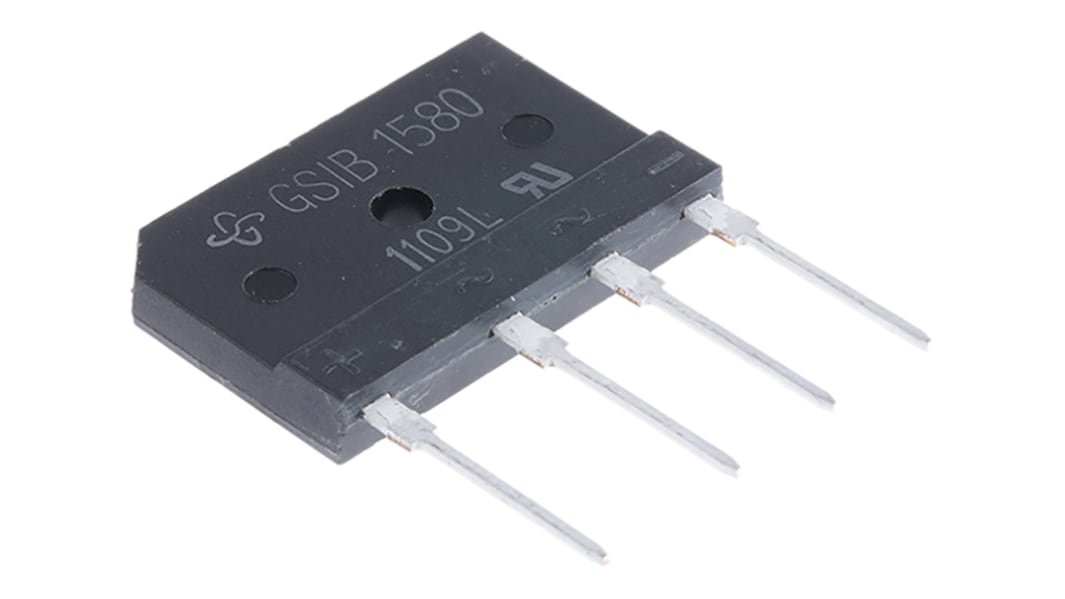

Vishay Bridge Rectifier, 3.5A, 800V, 4-Pin
- RS Stock No.:
- 700-5465
- Mfr. Part No.:
- GSIB1580-E3/45
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 2 units)*
£4.92
(exc. VAT)
£5.90
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 2 left, ready to ship
- Plus 18 left, shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £2.46 | £4.92 |
| 20 - 98 | £2.26 | £4.52 |
| 100 - 198 | £2.095 | £4.19 |
| 200 - 498 | £1.965 | £3.93 |
| 500 + | £1.85 | £3.70 |
*price indicative
- RS Stock No.:
- 700-5465
- Mfr. Part No.:
- GSIB1580-E3/45
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Peak Average Forward Current | 3.5A | |
| Bridge Type | Single Phase | |
| Peak Reverse Repetitive Voltage | 800V | |
| Mounting Type | Through Hole | |
| Package Type | GSIB-5S | |
| Pin Count | 4 | |
| Configuration | Single | |
| Peak Non-Repetitive Forward Surge Current | 300A | |
| Maximum Operating Temperature | +150 °C | |
| Minimum Operating Temperature | -55 °C | |
| Peak Forward Voltage | 950mV | |
| Peak Reverse Current | 10µA | |
| Length | 30mm | |
| Dimensions | 30 x 4.6 x 20mm | |
| Height | 20mm | |
| Width | 4.6mm | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Peak Average Forward Current 3.5A | ||
Bridge Type Single Phase | ||
Peak Reverse Repetitive Voltage 800V | ||
Mounting Type Through Hole | ||
Package Type GSIB-5S | ||
Pin Count 4 | ||
Configuration Single | ||
Peak Non-Repetitive Forward Surge Current 300A | ||
Maximum Operating Temperature +150 °C | ||
Minimum Operating Temperature -55 °C | ||
Peak Forward Voltage 950mV | ||
Peak Reverse Current 10µA | ||
Length 30mm | ||
Dimensions 30 x 4.6 x 20mm | ||
Height 20mm | ||
Width 4.6mm | ||
SIL PCB Mounting, GSIB-5 Series, Vishay Semiconductor
GSIB-5 series bridge rectifiers in SIL PCB Mounting package from Vishay Semiconductor
Thin Single In-Line GSIB-5 package
Glass passivated chip junction
High surge current capability
High dielectric strength case of 2500Vrms
Soldering pins for Printed Circuit Board (PCB) through-hole mounting
Glass passivated chip junction
High surge current capability
High dielectric strength case of 2500Vrms
Soldering pins for Printed Circuit Board (PCB) through-hole mounting
Approvals
UL file E54214
Bridge Rectifiers - Vishay Semiconductor
The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.
