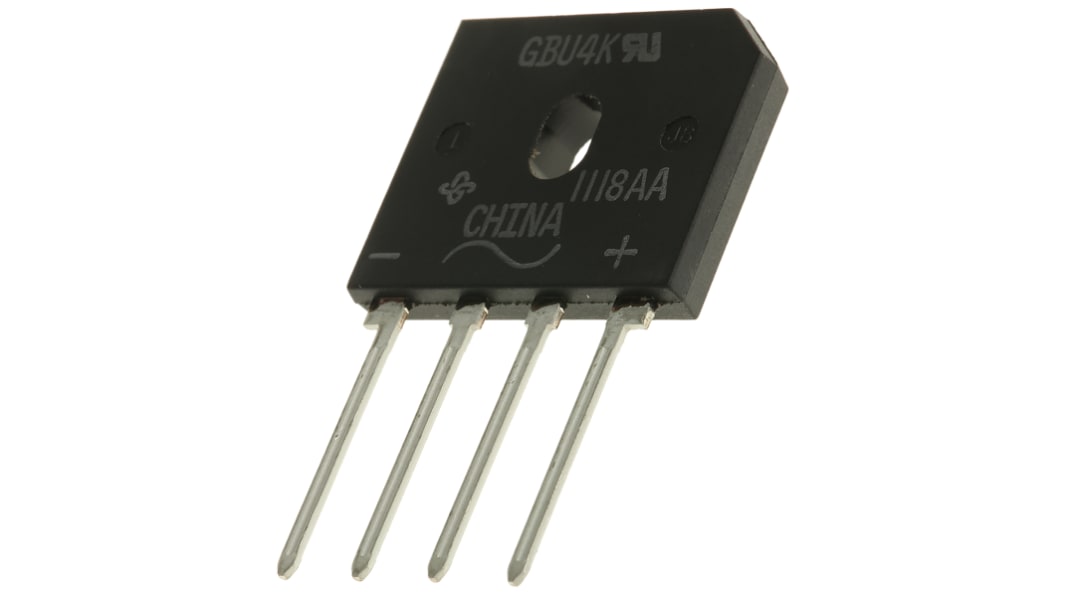

Vishay Bridge Rectifier, 4A, 800V, 4-Pin

RS Stock No.:: 700-5437
Mfr. Part No.:: GBU4K-E3/45
Brand:: Vishay

Vishay Bridge Rectifier, 4A, 800V, 4-Pin

15 In stock - FREE next working day delivery available

20 available from Europe for delivery within 2 working day(s).

Price Each (In a Pack of 5)

£1.49

(exc. VAT)

£1.79

(inc. VAT)

Units	Per unit	Per Pack*
5 - 45	£1.49	£7.45
50 - 120	£1.34	£6.70
125 - 245	£1.266	£6.33
250 - 495	£1.118	£5.59
500 +	£1.042	£5.21

*price indicative

RS Stock No.:: 700-5437
Mfr. Part No.:: GBU4K-E3/45
Brand:: Vishay

Technical Reference

Legislation and Compliance

Product Details

SIL PCB Mounting, GBU Series, Vishay Semiconductor

GBU series bridge rectifiers in SIL PCB Mounting package from Vishay Semiconductor

Glass passivated junction
High surge current capability
High case dielectric strength of 1500Vrms
Soldering pins for Printed Circuit Board (PCB) through-hole mounting

Approvals

UL file E54214

Bridge Rectifiers - Vishay Semiconductor

The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.

Specifications

Attribute	Value
Peak Average Forward Current	4A
Bridge Type	Single Phase
Peak Reverse Repetitive Voltage	800V
Mounting Type	Through Hole
Package Type	GBU
Pin Count	4
Configuration	Single
Peak Non-Repetitive Forward Surge Current	150A
Maximum Operating Temperature	+150 °C
Minimum Operating Temperature	-55 °C
Peak Forward Voltage	1V
Peak Reverse Current	5µA
Dimensions	22.3 x 3.56 x 18.8mm
Length	22.3mm
Width	3.56mm
Height	18.8mm
