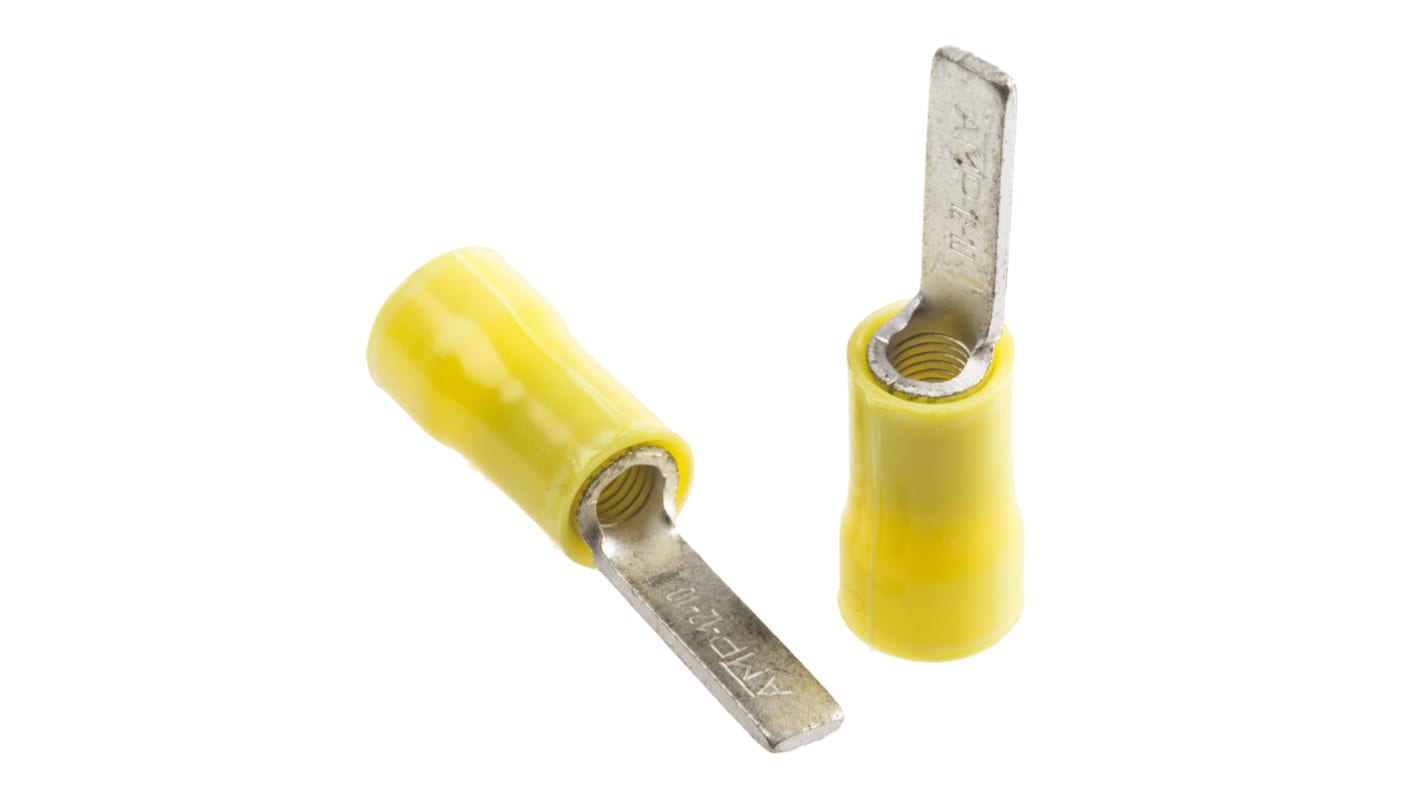

TE Connectivity, PLASTI-GRIP Insulated Crimp Blade Terminal 11.8 mm Blade Length, 12 AWG to 10 AWG, Yellow
- RS Stock No.:
- 278-9294
- Mfr. Part No.:
- 131445
- Brand:
- TE Connectivity
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 100 units)*
£68.10
(exc. VAT)
£81.70
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 600 unit(s) shipping from 27 July 2026
- Plus 2,700 unit(s) shipping from 03 August 2026
- Plus 2,000 unit(s) shipping from 09 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 100 | £0.681 | £68.10 |
| 200 - 200 | £0.66 | £66.00 |
| 300 + | £0.64 | £64.00 |
*price indicative
- RS Stock No.:
- 278-9294
- Mfr. Part No.:
- 131445
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | PLASTI-GRIP | |
| Product Type | Crimp Blade Terminal | |
| Insulation | Insulated | |
| Insulation Material | Polyvinyl Chloride | |
| Minimum Wire Size mm² | 2.6mm² | |
| Minimum Wire Size AWG | 12AWG | |
| Maximum Wire Size mm² | 6.6mm² | |
| Overall Length | 29.4mm | |
| Maximum Wire Size AWG | 10AWG | |
| Blade Length | 11.8mm | |
| Blade Width | 4.2mm | |
| Inside Diameter | 6.4mm | |
| Blade Thickness | 1.02mm | |
| Hooked | No | |
| Standards/Approvals | No | |
| Colour | Yellow | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series PLASTI-GRIP | ||
Product Type Crimp Blade Terminal | ||
Insulation Insulated | ||
Insulation Material Polyvinyl Chloride | ||
Minimum Wire Size mm² 2.6mm² | ||
Minimum Wire Size AWG 12AWG | ||
Maximum Wire Size mm² 6.6mm² | ||
Overall Length 29.4mm | ||
Maximum Wire Size AWG 10AWG | ||
Blade Length 11.8mm | ||
Blade Width 4.2mm | ||
Inside Diameter 6.4mm | ||
Blade Thickness 1.02mm | ||
Hooked No | ||
Standards/Approvals No | ||
Colour Yellow | ||
Contact Plating Tin | ||
Contact Material Copper | ||
TE Connectivity PLASTI-GRIP Blade Wire Crimp Terminals
PLASTI-GRIP blade wire crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP blade crimp terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funnelled entry on the wire barrel enables the stripped wire to be inserted more easily.
Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²
TE Connectivity Plasti-Grip Terminals
Note
Not for use with double wire
