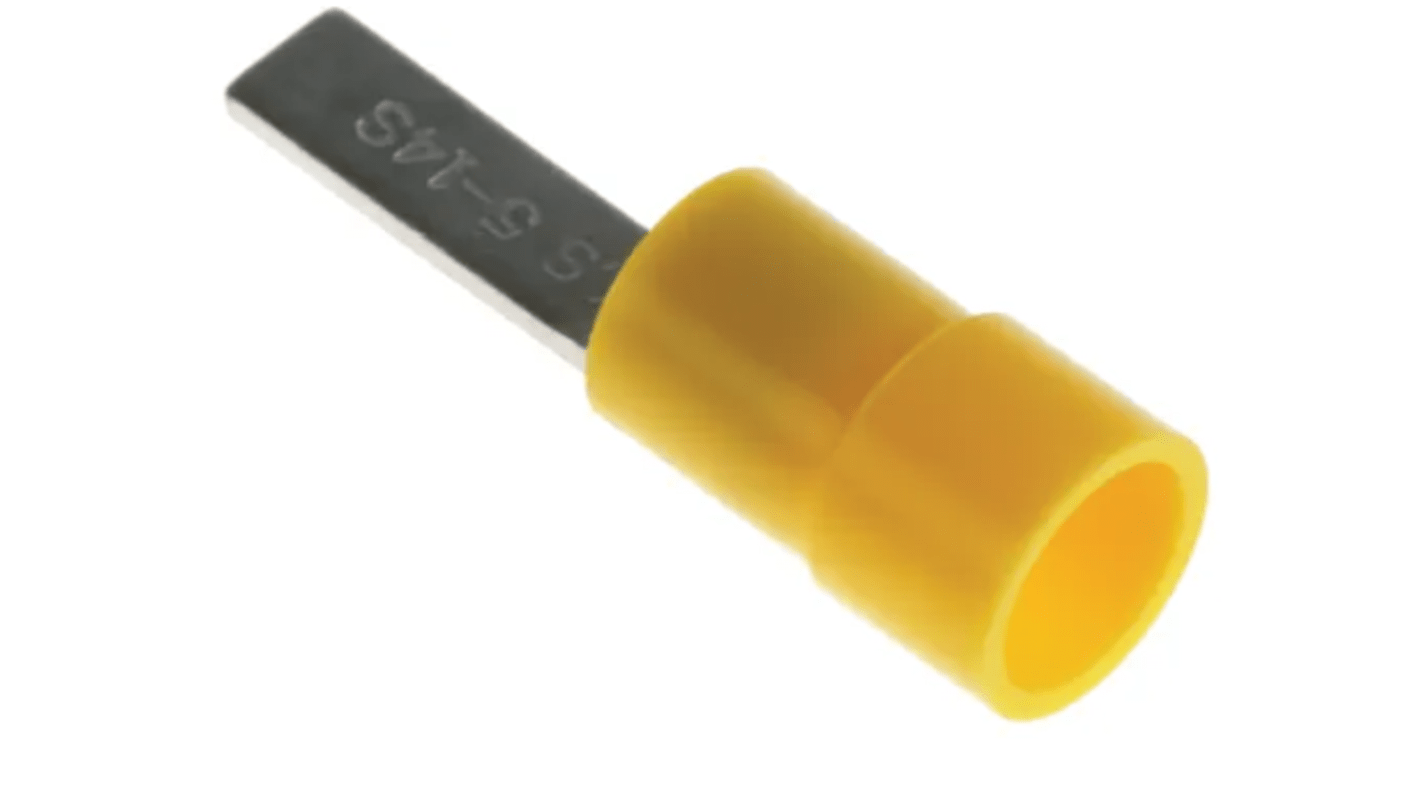

RS PRO Insulated Crimp Blade Terminal 14mm Blade Length, 4mm² to 6mm², 12AWG to 10AWG, Yellow

View all Blade Terminals
Bulk discount available

Subtotal (1 bag of 500 units)*

£78.00

(exc. VAT)

£93.50

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 6,000 unit(s) shipping from 27 October 2025
  • Plus 6,000 unit(s) shipping from 06 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
500 - 4500£0.156£78.00
5000 - 9500£0.135£67.50
10000 +£0.114£57.00

*price indicative

RS Stock No.:
270-7468
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Gender

Male

Insulation

Insulated

Insulation Material

Vinyl

Shrouded/Unshrouded

Unshrouded

Minimum Wire Size mm²

4mm²

Maximum Wire Size mm²

6mm²

Minimum Wire Size AWG

12AWG

Maximum Wire Size AWG

10AWG

Overall Length

27mm

Blade Length

14mm

Inner Diameter

6.4mm

Blade Width

4mm

Blade Thickness

1mm

Hooked

No

Colour

Yellow

Contact Plating

Tin

Contact Material

Copper

COO (Country of Origin):
TW

RS PRO Insulated Crimp Blade Terminal 14 mm Blade Length, 4 mm² to 6 mm², 12 AWG to 10 AWG, Yellow


From the RS PRO crimp terminal series, this unshrouded crimp blade terminal is a solderless solution to terminating your stranded single-wire electrical connections. It has a tight-fitting design that protects the metal interior from corrosion.

Made from a tin-plated copper contact material, the crimp blade gives you a reliable electrical connection. The blade itself measures 4 mm in length and has a thickness of 1 mm. It's insulated by flared vinyl that protects your connection from damage. It has an overall length of 27 mm and an inner diameter of 6.4 mm.

This yellow model is made for wire sizes of 4 mm² to 6 mm² and will suit an American Wire Gauge ranging from 10 AWG to 12 AWG. It’s commonly used by electricians for its simplicity and versatility as a means of crimping.

Features and Benefits


  • Unshrouded male crimp blade terminal

  • Copper contact material with tin plating

  • Vinyl insulation material

  • Wire size of 4 mm² to 6 mm²

  • American Wire Gauge of 10 AWG to 12 AWG

  • Blade thickness of 1 mm with 4 mm length

  • Overall length of 27 mm

  • Inner diameter of 6.4 mm

  • Yellow colour

RS PRO


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size


Per Unit, RS stock no: 613-9823

Large Pack Size


RS stock no: 270-7468
