- RS Stock No.:
- 613-9801
- Brand:
- RS PRO
5000 In stock - FREE next working day delivery available
800 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 100)
£0.252
(exc. VAT)
£0.302
(inc. VAT)
Units | Per unit | Per Pack* |
100 - 900 | £0.252 | £25.20 |
1000 - 2400 | £0.227 | £22.70 |
2500 - 4900 | £0.206 | £20.60 |
5000 - 9900 | £0.189 | £18.90 |
10000 + | £0.176 | £17.60 |
*price indicative |
- RS Stock No.:
- 613-9801
- Brand:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

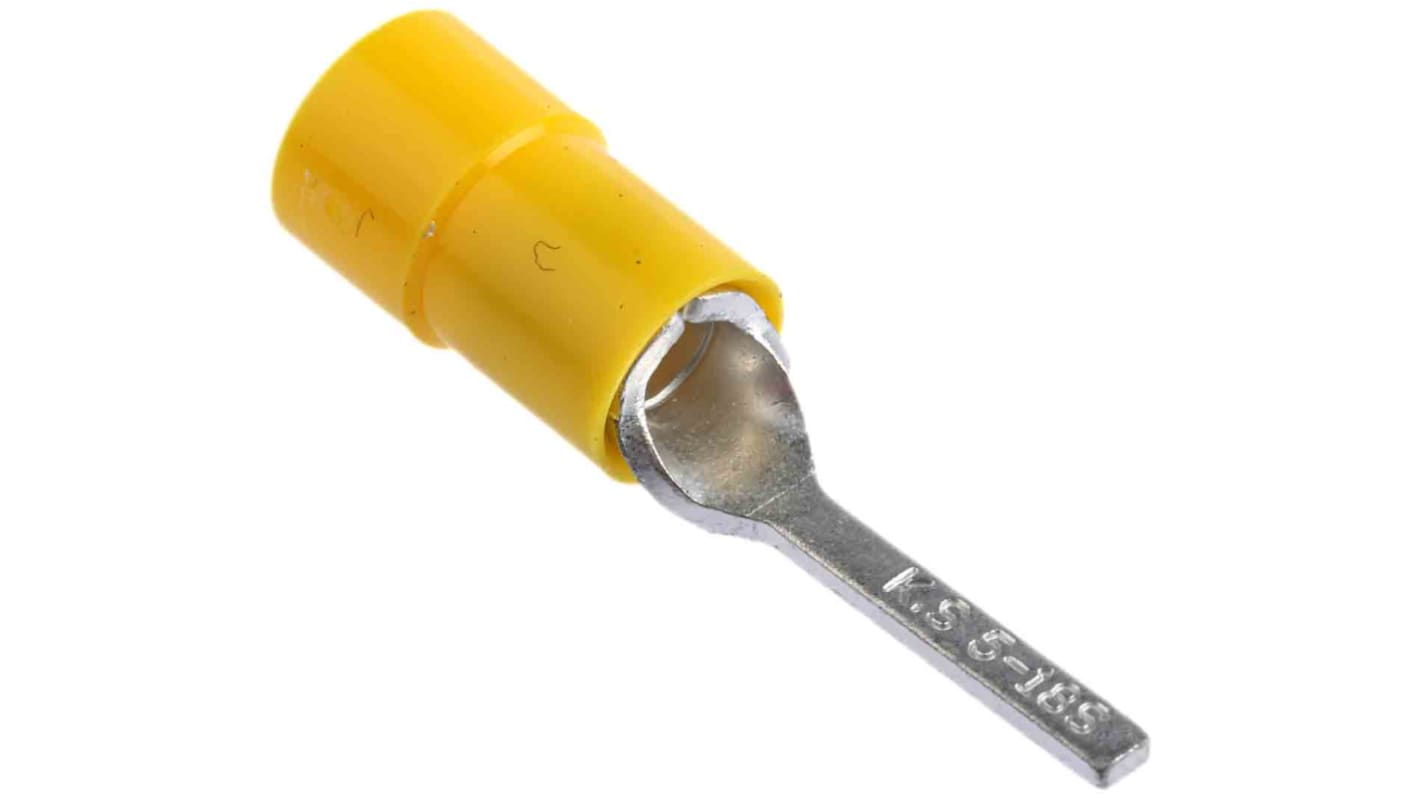

RS PRO Insulated Crimp Blade Terminal 18 mm Blade Length, 4 mm² to 6 mm², 12 AWG to 10 AWG, Yellow
Terminate your stranded single-wire electrical connections without the need for soldering using this RS PRO crimp terminal blade. It features a tight-fitting construction that prevents corrosion of the metal inside, so it will last a long time.
The crimp blade is made of tin-plated copper for a long-lasting and dependable electrical connection. To prevent damage to the connection, the blade is insulated with flared vinyl. The insulation's yellow colour makes it easy to identify different wire sizes within a colour-coded system. You'll find this versatile and easy-to-use component used by electricians.
The crimp blade is made of tin-plated copper for a long-lasting and dependable electrical connection. To prevent damage to the connection, the blade is insulated with flared vinyl. The insulation's yellow colour makes it easy to identify different wire sizes within a colour-coded system. You'll find this versatile and easy-to-use component used by electricians.
Features and Benefits
- Blade length of 18 mm
- Blade thickness of 1 mm
- Blade width of 2 mm
- Yellow colour
- Copper contact material
- Tin contact plating
- Male gender
- Not hooked
- Inner diameter of 6.4 mm
- Insulated
- Vinyl insulation material
- Maximum wire size of 10 AWG (American Wire Gauge)
- Minimum wire size of 12 AWG (American Wire Gauge)
- Maximum wire size of 6 mm²
- Minimum wire size of 4 mm²
- Overall length of 31 mm
- Unshrouded
Approvals
UL (E125401)
Specifications
Attribute | Value |
---|---|
Gender | Male |
Insulation | Insulated |
Insulation Material | Vinyl |
Minimum Wire Size mm² | 4mm² |
Shrouded/Unshrouded | Unshrouded |
Maximum Wire Size mm² | 6mm² |
Minimum Wire Size AWG | 12AWG |
Maximum Wire Size AWG | 10AWG |
Overall Length | 31mm |
Blade Length | 18mm |
Inner Diameter | 6.4mm |
Blade Width | 2mm |
Blade Thickness | 1mm |
Hooked | No |
Colour | Yellow |
Contact Plating | Tin |
Contact Material | Copper |
