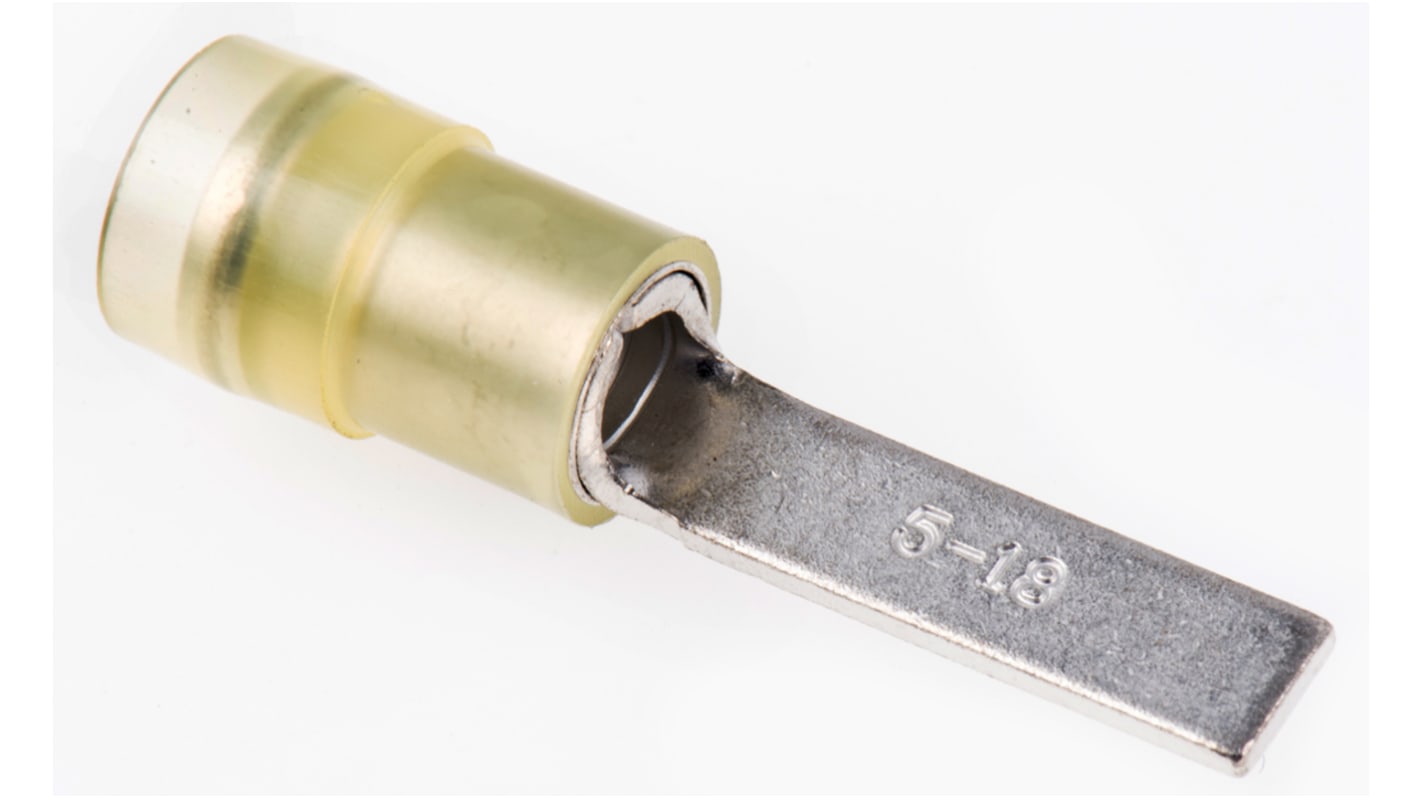

RS PRO Insulated Crimp Blade Terminal 18mm Blade Length, 4mm² to 6mm², 12AWG to 10AWG, Yellow
- RS Stock No.:
- 267-4518
- Brand:
- RS PRO
500 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 100)
£0.256
(exc. VAT)
£0.307
(inc. VAT)
| Units | Per unit | Per Pack* |
| 100 - 900 | £0.256 | £25.60 |
| 1000 - 2400 | £0.23 | £23.00 |
| 2500 - 4900 | £0.21 | £21.00 |
| 5000 - 9900 | £0.192 | £19.20 |
| 10000 + | £0.179 | £17.90 |
| *price indicative | ||
- RS Stock No.:
- 267-4518
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS PRO Insulated Double Crimp Blade Terminals
RS PRO range of insulated double crimp hook blade terminals made from brass with a copper-sleeved barrel. These connectors have nylon insulation with a sturdy design, for optimum convenience. Being available in various colours, there is a suitable version for your application. All models are highly reliable and of excellent quality.
For ease of assembly, these terminals can be fitted to the connection end without soldering and come preinstalled with vinyl that protects the wire from vibrations. This results in a strong and robust connection joint.
For ease of assembly, these terminals can be fitted to the connection end without soldering and come preinstalled with vinyl that protects the wire from vibrations. This results in a strong and robust connection joint.
Features & Benefits
- Gender: Male
- Insulation: Insulated
- Shrouded: Unshrouded
- Insulation Material: Nylon
- Various colours available
- Contact Material: Copper Contact Plating: Tin
Hook Blade Colour Code
- Red 0.5 - 1.5 mm²
- Blue 1 - 2.6 mm²
- Yellow 2.5 - 6.5 mm²
Note
Size quoted is blade length
Approvals
UL Listed; UL Listed for Canada
Note
Size quoted is blade length.
Approvals
UL Listed; UL Listed for Canada
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Shrouded/Unshrouded | Unshrouded |
| Minimum Wire Size mm² | 4mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Overall Length | 31mm |
| Inner Diameter | 7mm |
| Blade Length | 18mm |
| Blade Width | 4.5mm |
| Blade Thickness | 1mm |
| Hooked | No |
| Colour | Yellow |
| Contact Plating | Tin |
| Contact Material | Copper |
