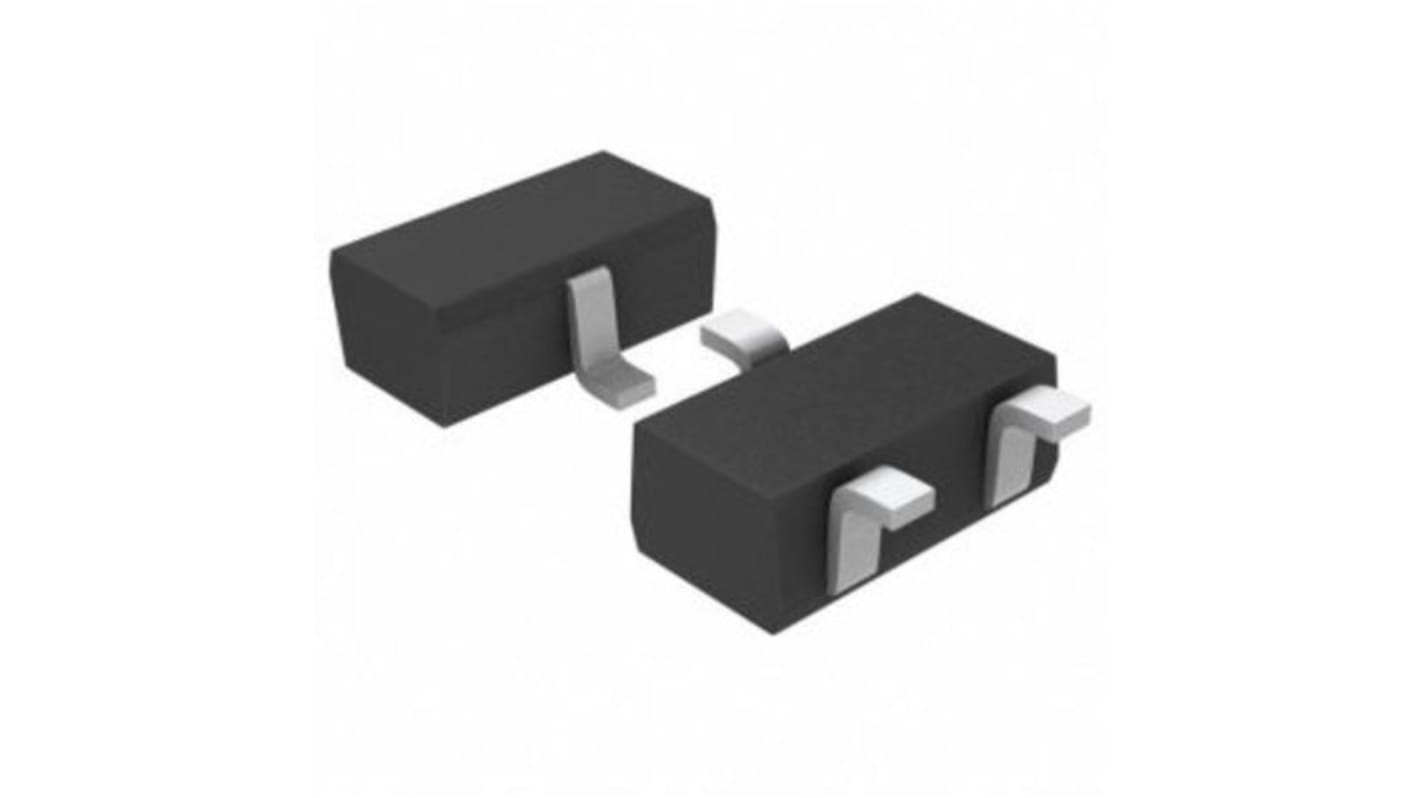

ROHM 2SD1781KT146Q Transistor, 800 A NPN, 32 V, 3-Pin SOT-346
- RS Stock No.:
- 215-9577
- Mfr. Part No.:
- 2SD1781KT146Q
- Brand:
- ROHM
Subtotal (1 reel of 3000 units)*
£120.00
(exc. VAT)
£150.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 3,000 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.04 | £120.00 |
*price indicative
- RS Stock No.:
- 215-9577
- Mfr. Part No.:
- 2SD1781KT146Q
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | 800A | |
| Maximum Collector Emitter Voltage Vceo | 32V | |
| Package Type | SOT-346 | |
| Mount Type | Surface | |
| Maximum Collector Base Voltage VCBO | 40V | |
| Maximum Power Dissipation Pd | 200mW | |
| Minimum Operating Temperature | -55°C | |
| Minimum DC Current Gain hFE | 120 | |
| Transistor Polarity | NPN | |
| Maximum Emitter Base Voltage VEBO | 5V | |
| Pin Count | 3 | |
| Maximum Operating Temperature | 150°C | |
| Width | 1.8 mm | |
| Length | 3mm | |
| Height | 1.3mm | |
| Standards/Approvals | No | |
| Series | 2SD1781K | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc 800A | ||
Maximum Collector Emitter Voltage Vceo 32V | ||
Package Type SOT-346 | ||
Mount Type Surface | ||
Maximum Collector Base Voltage VCBO 40V | ||
Maximum Power Dissipation Pd 200mW | ||
Minimum Operating Temperature -55°C | ||
Minimum DC Current Gain hFE 120 | ||
Transistor Polarity NPN | ||
Maximum Emitter Base Voltage VEBO 5V | ||
Pin Count 3 | ||
Maximum Operating Temperature 150°C | ||
Width 1.8 mm | ||
Length 3mm | ||
Height 1.3mm | ||
Standards/Approvals No | ||
Series 2SD1781K | ||
Automotive Standard No | ||
The Rohm medium power transistor having voltage rating of 32V. It is mainly used in low frequency amplifier and drivers.
High current
Compact package
