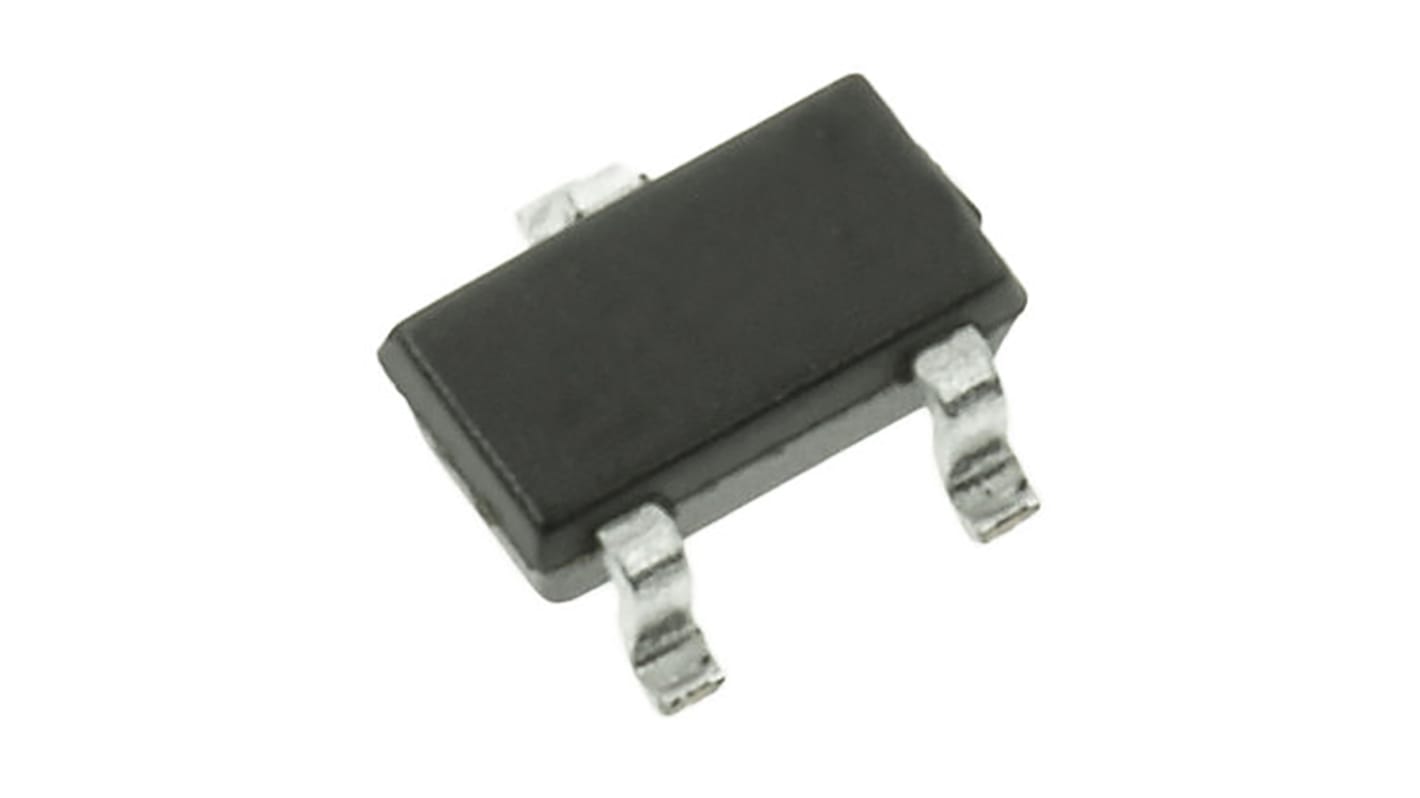

ROHM 2SC3906KT146E/R/S Transistor, 50 mA NPN, 120 V, 3-Pin SOT-346
- RS Stock No.:
- 320-8140
- Mfr. Part No.:
- 2SC3906KT146E/R/S
- Brand:
- ROHM
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 320-8140
- Mfr. Part No.:
- 2SC3906KT146E/R/S
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | 50mA | |
| Maximum Collector Emitter Voltage Vceo | 120V | |
| Package Type | SOT-346 (SC-59) | |
| Mount Type | Surface | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage VCBO | 120V | |
| Maximum Transition Frequency ft | 140MHz | |
| Transistor Polarity | NPN | |
| Minimum DC Current Gain hFE | 180 | |
| Maximum Emitter Base Voltage VEBO | 5V | |
| Maximum Power Dissipation Pd | 200mW | |
| Pin Count | 3 | |
| Maximum Operating Temperature | 150°C | |
| Series | 2SC3906K | |
| Standards/Approvals | No | |
| Height | 1.3mm | |
| Length | 3mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc 50mA | ||
Maximum Collector Emitter Voltage Vceo 120V | ||
Package Type SOT-346 (SC-59) | ||
Mount Type Surface | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage VCBO 120V | ||
Maximum Transition Frequency ft 140MHz | ||
Transistor Polarity NPN | ||
Minimum DC Current Gain hFE 180 | ||
Maximum Emitter Base Voltage VEBO 5V | ||
Maximum Power Dissipation Pd 200mW | ||
Pin Count 3 | ||
Maximum Operating Temperature 150°C | ||
Series 2SC3906K | ||
Standards/Approvals No | ||
Height 1.3mm | ||
Length 3mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- JP
NPN Small-Signal Transistor, Rohm
Bipolar Transistors, ROHM Semiconductor
