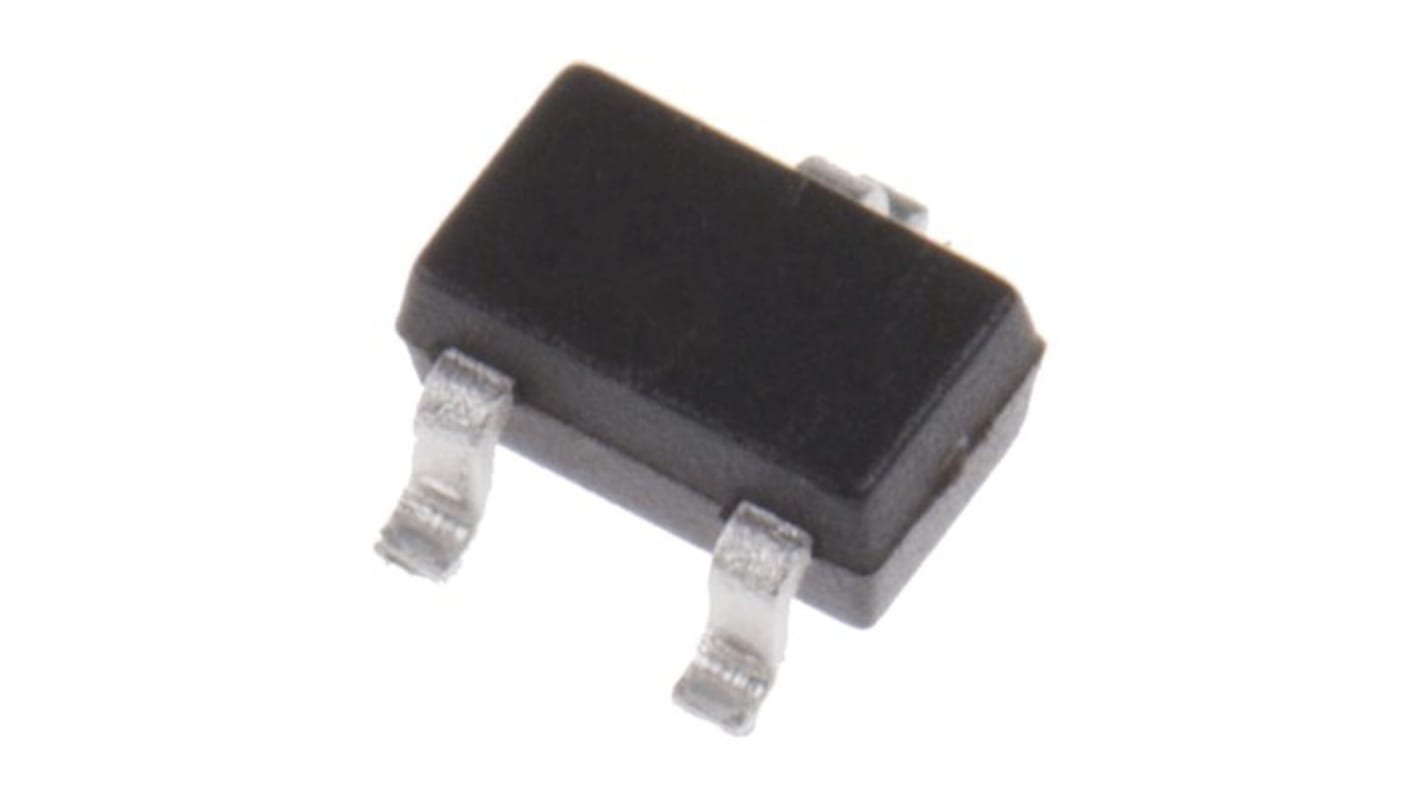

onsemi MUN5215T1G NPN Digital Transistor, 100 mA, 50 V, 3-Pin SOT-323

View all Bipolar Transistors
Bulk discount available

Subtotal (1 pack of 50 units)*

£3.75

(exc. VAT)

£4.50

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
50 - 450£0.075£3.75
500 - 950£0.065£3.25
1000 +£0.056£2.80

*price indicative

Packaging Options:
RS Stock No.:
186-8650
Mfr. Part No.:
MUN5215T1G
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Transistor Type

NPN

Maximum DC Collector Current

100 mA

Maximum Collector Emitter Voltage

50 V

Package Type

SOT-323 (SC-70)

Mounting Type

Surface Mount

Maximum Power Dissipation

310 mW

Transistor Configuration

Single

Pin Count

3

Number of Elements per Chip

1

Dimensions

2.2 x 1.35 x 0.9mm

Typical Input Resistor

10 kΩ

Maximum Operating Temperature

+150 °C

This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors, a series base resistor and a base-emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board space.

Simplifies Circuit Design
Reduces Board Space
Reduces Component Count
S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements, PPAP capable
These Devices are PbFree, Halogen Free/BFR Free
