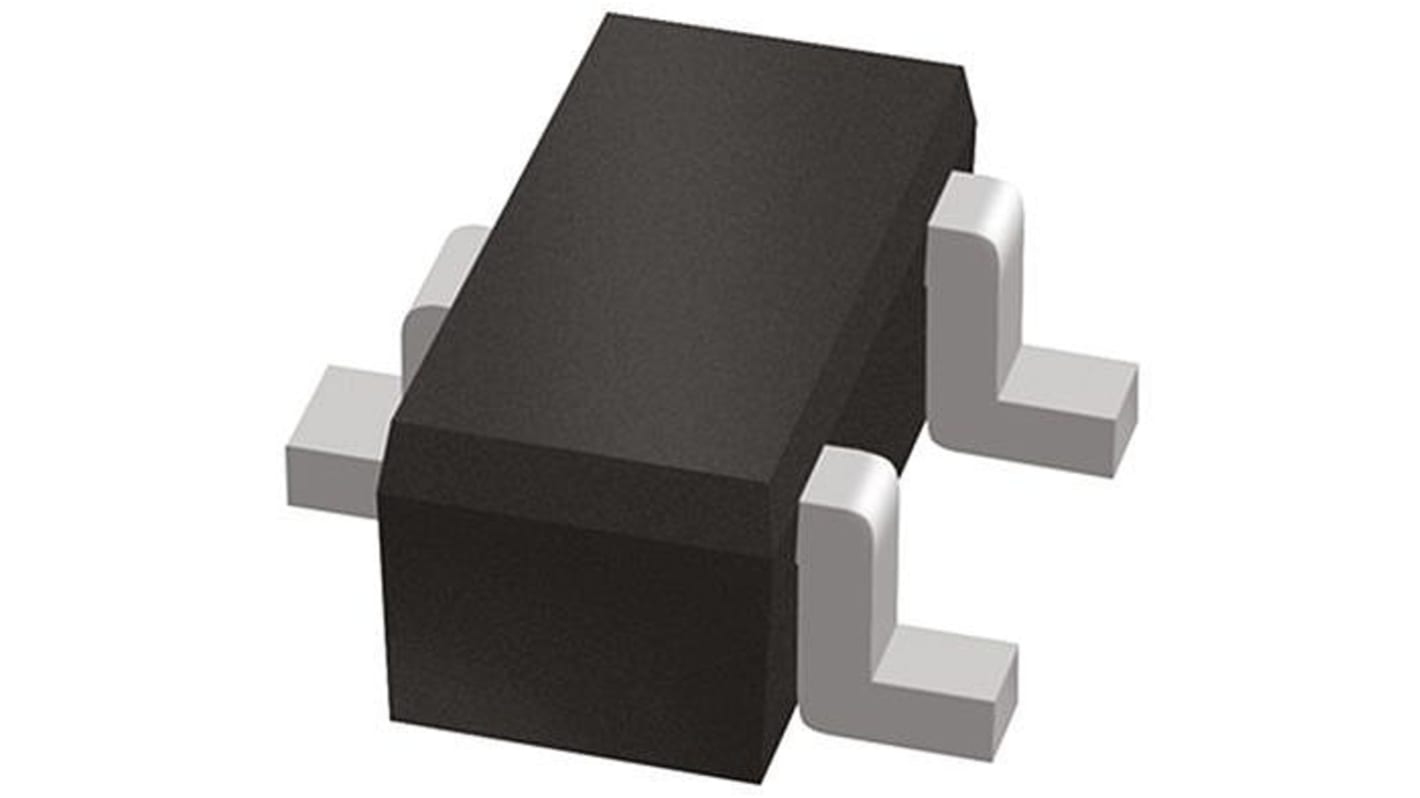

onsemi DTC123JET1G NPN Digital Transistor, 100 mA, 50 V, 3-Pin SOT-416
- RS Stock No.:
- 163-2122
- Mfr. Part No.:
- DTC123JET1G
- Brand:
- onsemi
Subtotal (1 reel of 3000 units)*
£66.00
(exc. VAT)
£78.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
3000 + | £0.022 | £66.00 |
*price indicative
- RS Stock No.:
- 163-2122
- Mfr. Part No.:
- DTC123JET1G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | onsemi | |
Transistor Type | NPN | |
Maximum DC Collector Current | 100 mA | |
Maximum Collector Emitter Voltage | 50 V | |
Package Type | SOT-416 (SC-75) | |
Mounting Type | Surface Mount | |
Maximum Power Dissipation | 300 mW | |
Transistor Configuration | Single | |
Maximum Emitter Base Voltage | 6 V | |
Pin Count | 3 | |
Number of Elements per Chip | 1 | |
Typical Input Resistor | 2.2 kΩ | |
Dimensions | 1.65 x 0.9 x 0.8mm | |
Typical Resistor Ratio | 0.047 | |
Maximum Operating Temperature | +150 °C | |
Select all | ||
---|---|---|
Brand onsemi | ||
Transistor Type NPN | ||
Maximum DC Collector Current 100 mA | ||
Maximum Collector Emitter Voltage 50 V | ||
Package Type SOT-416 (SC-75) | ||
Mounting Type Surface Mount | ||
Maximum Power Dissipation 300 mW | ||
Transistor Configuration Single | ||
Maximum Emitter Base Voltage 6 V | ||
Pin Count 3 | ||
Number of Elements per Chip 1 | ||
Typical Input Resistor 2.2 kΩ | ||
Dimensions 1.65 x 0.9 x 0.8mm | ||
Typical Resistor Ratio 0.047 | ||
Maximum Operating Temperature +150 °C | ||
- COO (Country of Origin):
- CN
Dual Resistor Digital NPN Transistors, ON Semiconductor
Standards
Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard.
Digital Transistors, ON Semiconductor
Resistor-equipped bipolar transistors, also known as Digital Transistors or Bias Resistor Transistors, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available.
