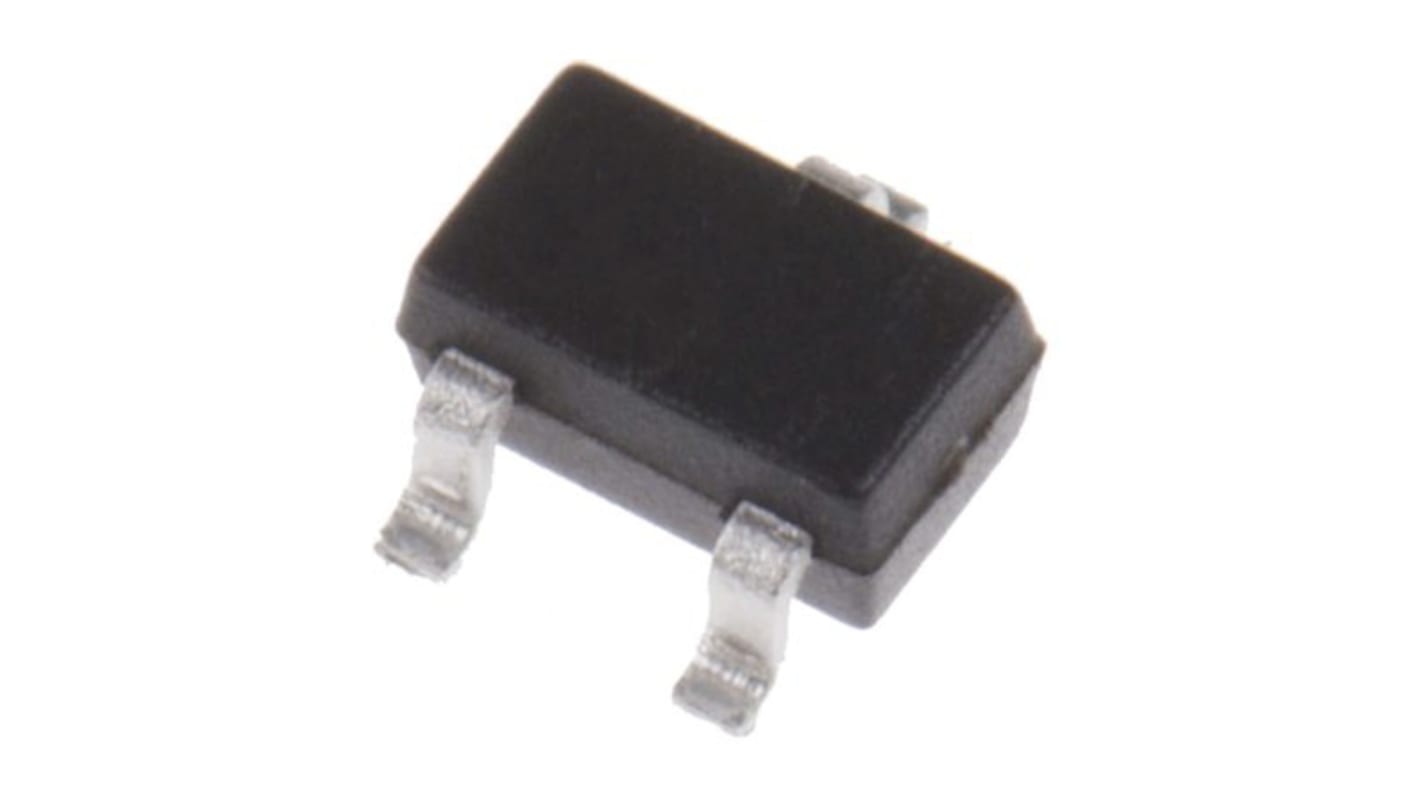

onsemi MUN5214T1G Digital Transistor, 50 V NPN Surface, 3-Pin

View all Bipolar Transistors
Bulk discount available

Subtotal (1 pack of 100 units)*

£5.40

(exc. VAT)

£6.50

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 5,900 unit(s) shipping from 01 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Pack*
100 - 400£0.054£5.40
500 - 900£0.046£4.60
1000 +£0.04£4.00

*price indicative

Packaging Options:
RS Stock No.:
186-8604
Mfr. Part No.:
MUN5214T1G
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Product Type

Digital Transistor

Maximum Collector Emitter Voltage Vceo

50V

Mount Type

Surface

Transistor Configuration

Single

Maximum Collector Base Voltage VCBO

50V

Maximum Power Dissipation Pd

310mW

Transistor Polarity

NPN

Minimum DC Current Gain hFE

80

Maximum Operating Temperature

150°C

Pin Count

3

Height

1mm

Length

2.2mm

Series

MUN5214

Standards/Approvals

No

Automotive Standard

AEC-Q101

This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias ResistorTransistor (BRT) contains a single transistor with a monolithic biasnetwork consisting of two resistors, a series base resistor and abase−emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRTcan reduce both system cost and board space.

Simplifies Circuit Design

Reduces Board Space

Reduces Component Count

S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements, PPAP capable

These Devices are PbFree, Halogen Free/BFR Free
