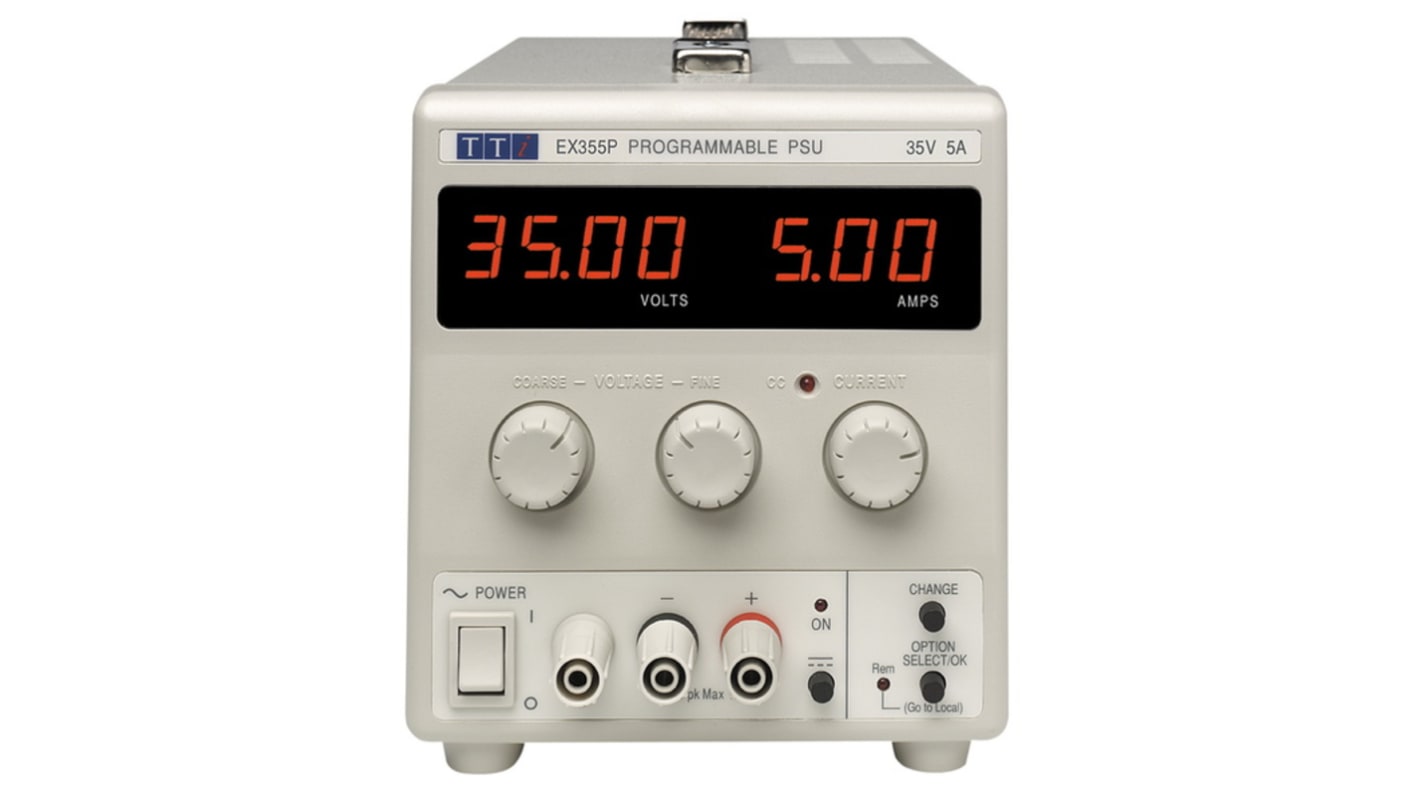

Aim-TTi Digital Bench Power Supply, 1-Output 0 V ac to 35V, 175 W

RS Stock No.:: 450-1210
Mfr. Part No.:: EX355P
Brand:: Aim-TTi

Aim-TTi Digital Bench Power Supply, 1-Output 0 V ac to 35V, 175 W

Subtotal (1 unit)*

£581.01

(exc. VAT)

£697.21

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit
1 +	£581.01

*price indicative

RS Stock No.:: 450-1210
Mfr. Part No.:: EX355P
Brand:: Aim-TTi

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Aim-TTi
	Product Type	Bench Power Supply
	Maximum Output Current	5A
	Number of Outputs	1
	Maximum Output Voltage	35V
	Power	175W
	Minimum Supply Voltage	230V ac
	Maximum Supply Voltage	230V ac
	Output Type	Digital
	Plug Type	IEC 320
	Supported Number of Displays	2
	Digital/Analogue	Digital
	Minimum Operating Temperature	5°C
	Maximum Operating Temperature	40°C
	Standards/Approvals	No
	Minimum Output Voltage	0V ac
	Minimum Output Current	5A
	Calibrated	UKAS

	Select all
	Brand Aim-TTi
	Product Type Bench Power Supply
	Maximum Output Current 5A
	Number of Outputs 1
	Maximum Output Voltage 35V
	Power 175W
	Minimum Supply Voltage 230V ac
	Maximum Supply Voltage 230V ac
	Output Type Digital
	Plug Type IEC 320
	Supported Number of Displays 2
	Digital/Analogue Digital
	Minimum Operating Temperature 5°C
	Maximum Operating Temperature 40°C
	Standards/Approvals No
	Minimum Output Voltage 0V ac
	Minimum Output Current 5A
	Calibrated UKAS

EL-R & EX-R Series Data Sheet

RoHS Status: Exempt

COO (Country of Origin):: GB

EX-R Series Single, Dual and Triple Output PSUs

The EX-R series of compact mixed-mode regulated power supplies offers output power from 175 → 420W. The models have high resolution four digit meters and switchable remote sense terminals.

Mixed-mode regulated with linear final regulation

Constant voltage or constant current with automatic cross-over

4 digit meters with 10mV and 1mA resolution

Switchable remote sense terminals for perfect regulation at the load

DC output switch enables voltage/current setup without load connected

Safety terminals accept fixed shroud 4mm plugs plus forks and wires

Silent fan-free convection cooling all models except EX2020R & EX4210R (intelligent fan cooling)

EX Series: EX355P

Opto-isolated RS-232 interface

Front panel controls can be locked out

The EX355P is a digitally controlled version of the EX355 with an isolated RS-232 interface. It offers a low cost solution for a basic programmable PSU, and will be sufficient for many applications where the sophistication and complexity of GPIB are not needed. A simple command set allows remote control of voltage, current and output along with read-back of metering values and operational status. Local control is via three rotary encoders providing rapid and accurate setting of voltage and current.
