Keysight Technologies Digital Bench Power Supply, 1-Output 35 V to 35V, 35 W, 1 A Max, RSCAL

RS Stock No.:: 175-1810
Mfr. Part No.:: E36104B
Brand:: Keysight Technologies

Keysight Technologies Digital Bench Power Supply, 1-Output 35 V to 35V, 35 W, 1 A Max, RSCAL

Subtotal (1 unit)*

£1,075.00

(exc. VAT)

£1,290.00

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

3 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1,075.00

*price indicative

RS Stock No.:: 175-1810
Mfr. Part No.:: E36104B
Brand:: Keysight Technologies

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Keysight Technologies
	Product Type	Bench Power Supply
	Number of Outputs	1
	Maximum Output Current	1A
	Maximum Output Voltage	35V
	Power	35W
	Minimum Supply Voltage	100V ac
	Output Type	Digital
	Maximum Supply Voltage	230V ac
	Plug Type	IEC 320 C14
	Digital/Analogue	Digital
	Minimum Operating Temperature	0°C
	Supported Number of Displays	1
	Maximum Operating Temperature	40°C
	Height	102mm
	Depth	365mm
	Width	106mm
	Standards/Approvals	UL, CSA
	Minimum Output Voltage	35V
	Minimum Output Current	1A
	Calibrated	RSCAL

	Select all
	Brand Keysight Technologies
	Product Type Bench Power Supply
	Number of Outputs 1
	Maximum Output Current 1A
	Maximum Output Voltage 35V
	Power 35W
	Minimum Supply Voltage 100V ac
	Output Type Digital
	Maximum Supply Voltage 230V ac
	Plug Type IEC 320 C14
	Digital/Analogue Digital
	Minimum Operating Temperature 0°C
	Supported Number of Displays 1
	Maximum Operating Temperature 40°C
	Height 102mm
	Depth 365mm
	Width 106mm
	Standards/Approvals UL, CSA
	Minimum Output Voltage 35V
	Minimum Output Current 1A
	Calibrated RSCAL

Datasheet

COO (Country of Origin):: MY

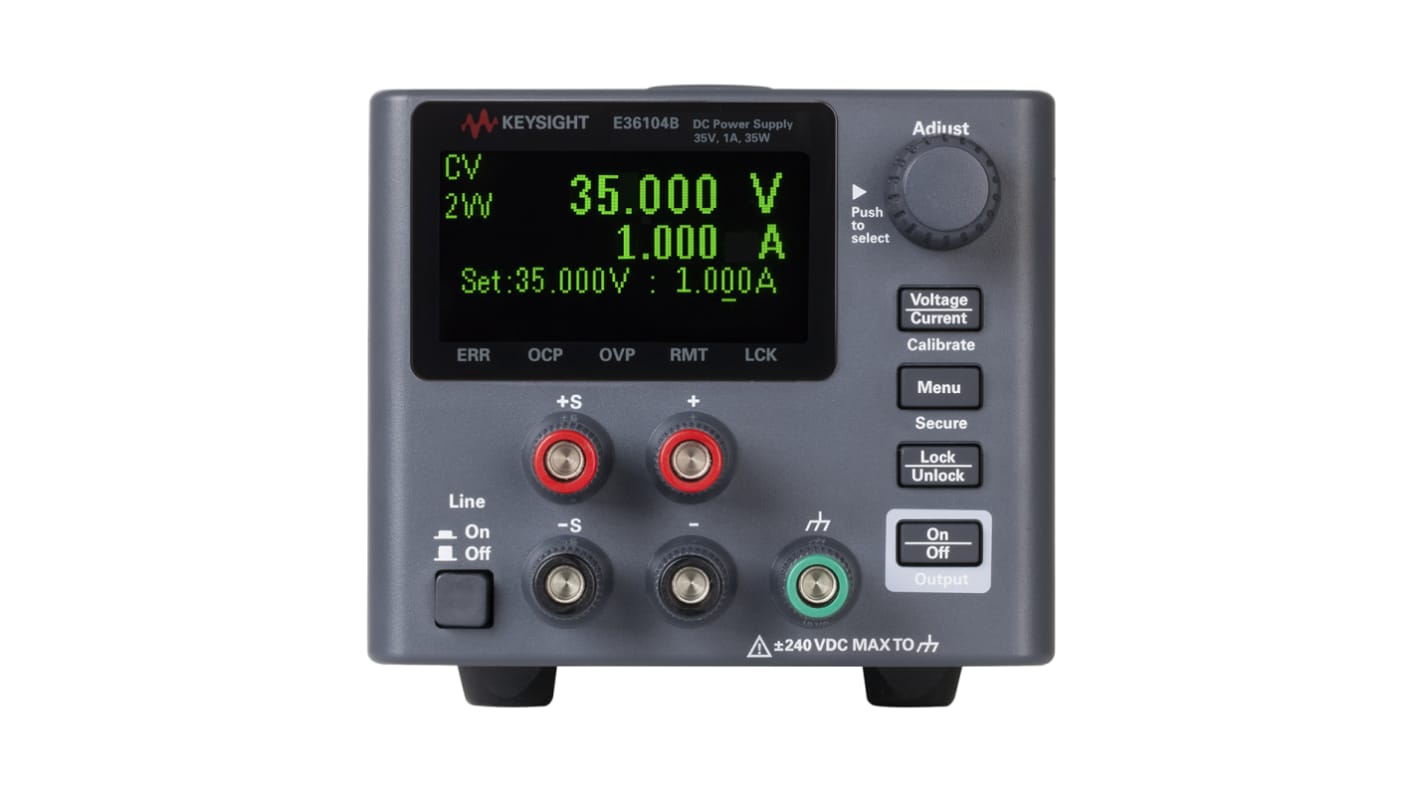

Keysight Technologies Bench Power Supply, OLED Display, 35W Power Rating - E36100B Series - E36104B

For safe energy delivery to your test tools, turn to this bench power supply unit from Keysight Technologies. It converts a supply voltage of 110, 115 or 230V AC to an output voltage of 35V DC, so it's just the thing for low-voltage networks and appliances. The output voltage is adjustable, making the unit a versatile piece of kit. Its high-contrast OLED display makes it a breeze to keep an eye on the task at hand, even when you're viewing the screen at an angle. Thanks to the clearly labelled switches and knobs, you won't have a problem finding your way around this device.

Features & Benefits

• Compact dimensions of 102 (H) x 106 (W) x 365mm (D) for installation in tight spaces

• Safe to use in challenging conditions, thanks to a broad operating temperature range between 0°C and +40°C

• Power rating of 35W for use in light-duty applications

Applications

• Measurement and instrumentation

• Electrical workshops

Can I control this bench power supply remotely?

Yes, it comes with a built-in web interface, giving you the option of convenient remote control.

Note

Manufacturer’s Warranty
