MPN

RS PRO CR2032 Battery Holder Surface Mount

RS Stock No.:: 185-4782
Brand:: RS PRO

RS PRO CR2032 Battery Holder Surface Mount

Subtotal (1 unit)*

£0.98

(exc. VAT)

£1.18

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 220 unit(s) shipping from 08 June 2026
Plus 40 unit(s) shipping from 08 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£0.98

*price indicative

RS Stock No.:: 185-4782
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Battery Holder
	Compatible Battery Size	CR2032
	Sub Type	Battery Holder
	Number of Cells	1
	Mount Type	PCB
	Body Material	Nylon
	Termination Type	Surface Mount
	Length	27.6mm
	Height	6.6mm
	Diameter	20mm
	Width	22.9mm
	Standards/Approvals	No
	Series	CH075

	Select all
	Brand RS PRO
	Product Type Battery Holder
	Compatible Battery Size CR2032
	Sub Type Battery Holder
	Number of Cells 1
	Mount Type PCB
	Body Material Nylon
	Termination Type Surface Mount
	Length 27.6mm
	Height 6.6mm
	Diameter 20mm
	Width 22.9mm
	Standards/Approvals No
	Series CH075

COO (Country of Origin):: CN

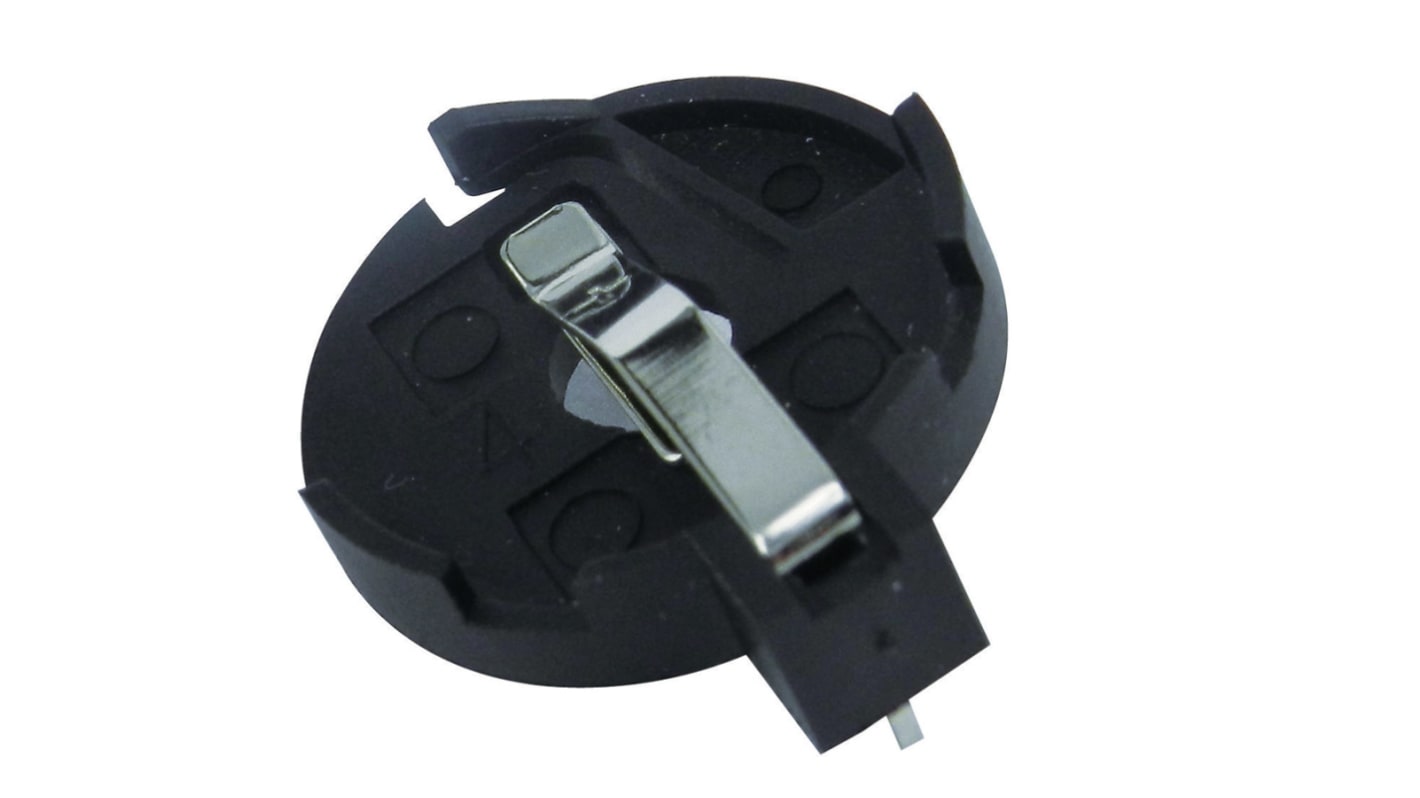

RS PRO Battery Holder

The RS PRO battery holder is suitable for a CR2032 battery and it has dimensions of 27.6mm x 6.6mm. It has a voltage rating of 500V (AC/DC) and a current rating of 2A.

Features and Benefits

• Material: Nylon 66 +15%GF

• Operating temperature ranges between -55°C and 105°C

• Contact: (+) electrode: Phosphor bronze 0.6mm thick tin plated over nickel and (-) electrode: Brass 0.6mm thick tin plated over nickel

• Insulation resistance: 1000megaohms

• Contact resistance: 30milliohms maximum

• Humidity: 40°C

Certifications

• UL 94V0 approved
