RS PRO CR1225 Battery Holder, PCB Mounted Contact

View all Battery Holders

Subtotal (1 unit)*

£0.95

(exc. VAT)

£1.14

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 40 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£0.95

*price indicative

Three packages of batteries displayed on a light peach background with a red round.
New Batteries, Maximum Power
Discover the new Duracell battery range—engineered for long-lasting performance, extended storage life, and intense power for high-drain devices. Power you can rely on, whenever you need it.
Shop New Batteries
RS Stock No.:
185-4777
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

For Battery Size

CR1225

Number of Cells

2

Mount

PCB

Type

Battery Holder

Maximum Cell Diameter

12.5mm

Dimensions

15 x 8mm

Terminal Contact Type

PCB Mounted

Body Material

PBT

Terminal Contact Material

Nickel Silver, Phosphor Bronze

COO (Country of Origin):
CN

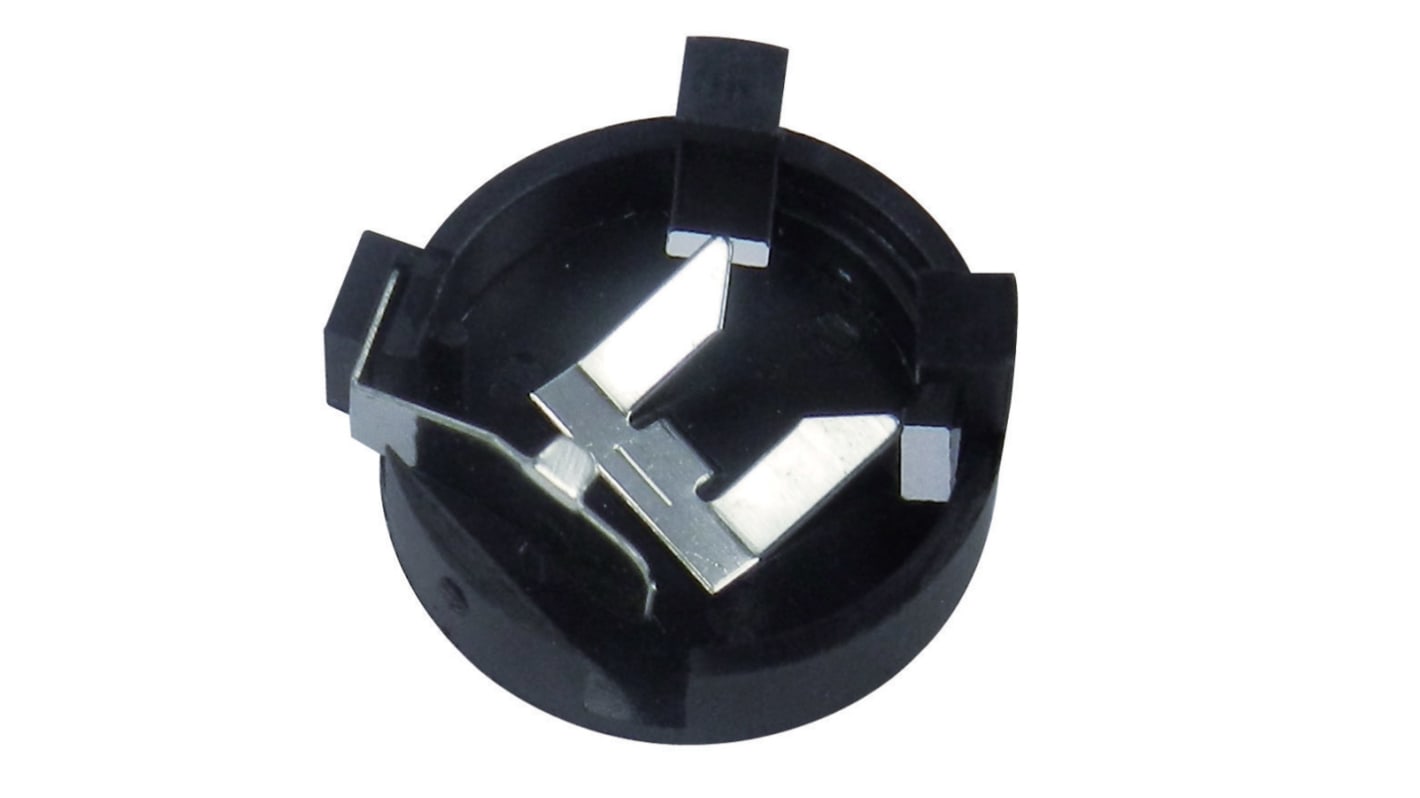

RS PRO Battery Holder


The RS PRO battery holder is suitable for a CR1225 battery and it has dimensions of 15mm (diameter) x 8mm. It has a voltage rating of 500V (AC/DC) and a current rating of 2A.

Features and Benefits


• Material: PBT +30% glass filled
• Operating temperature ranges between -55°C and 85°C
• Contact: Phosphor bronze 0.2mm thick tin plated over nickel
• Insulation resistance: 500megaohms
• Contact resistance: 30milliohms maximum
• Humidity: 40°C

Certifications


• UL 94V0 approved
