RS PRO CR2450 Battery Holder Surface Mount

RS Stock No.:: 185-4720
Distrelec Article No.:: 304-25-414
Brand:: RS PRO

RS PRO CR2450 Battery Holder Surface Mount

Subtotal (1 unit)*

£1.43

(exc. VAT)

£1.72

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

180 unit(s) ready to ship
Plus 29 unit(s) ready to ship from another location
Plus 215 unit(s) shipping from 16 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1.43

*price indicative

RS Stock No.:: 185-4720
Distrelec Article No.:: 304-25-414
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Compatible Battery Size	CR2450
	Product Type	Battery Holder
	Sub Type	Battery Holder
	Number of Cells	1
	Mount Type	PCB
	Body Material	Polybutylene Terephthalate
	Termination Type	Surface Mount
	Length	29.35mm
	Height	9.5mm
	Series	CH
	Diameter	24.5mm
	Width	26.75mm
	Standards/Approvals	No

	Select all
	Brand RS PRO
	Compatible Battery Size CR2450
	Product Type Battery Holder
	Sub Type Battery Holder
	Number of Cells 1
	Mount Type PCB
	Body Material Polybutylene Terephthalate
	Termination Type Surface Mount
	Length 29.35mm
	Height 9.5mm
	Series CH
	Diameter 24.5mm
	Width 26.75mm
	Standards/Approvals No

COO (Country of Origin):: CN

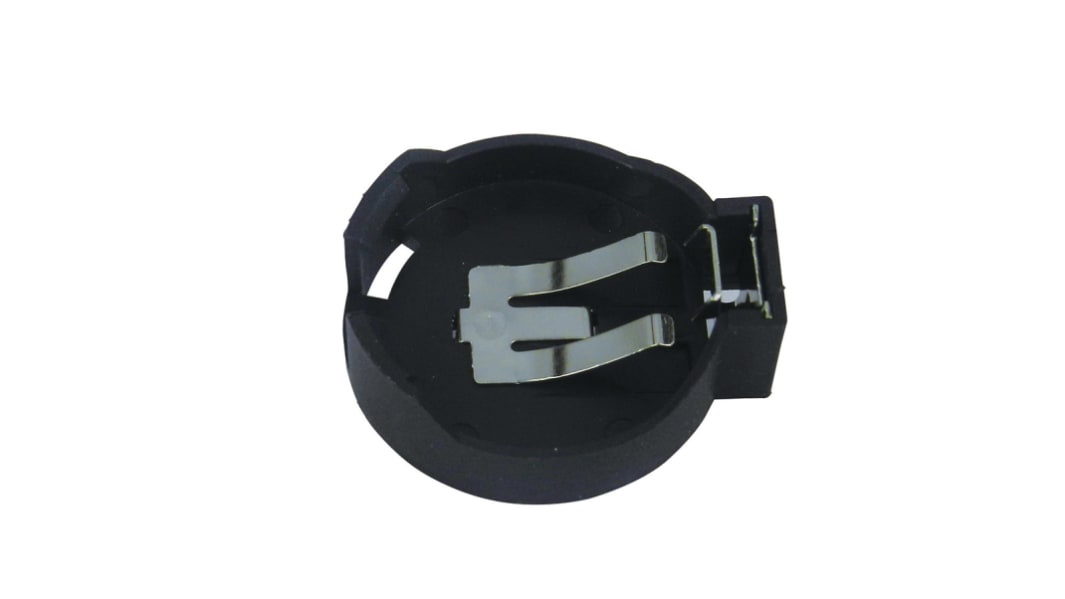

RS PRO Battery Holder

The RS PRO battery holder is suitable for a CR2325 battery and it has dimensions of 29.35mm x 26.75mm x 9.5mm. It has a voltage rating of 250V (AC/DC) and a current rating of 3A.

Features and Benefits

• Material: PBT +30%GF

• Operating temperature ranges between -40°C and 105°C

• Contact: Electrode: Phosphor bronze 0.2mm thick gold 1u plated over nickel 5u minimum

• Insulation resistance: 1000megaohms

• Contact resistance: 30milliohms maximum

• Humidity: 40°C

Certifications

• UL 94V0 approved
