RS PRO CR1220 Battery Holder Surface Mount

RS Stock No.:: 185-4778
Brand:: RS PRO

RS PRO CR1220 Battery Holder Surface Mount

Subtotal (1 unit)*

£0.98

(exc. VAT)

£1.18

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

100 unit(s) shipping from 18 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£0.98

*price indicative

RS Stock No.:: 185-4778
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Battery Holder
	Compatible Battery Size	CR1220
	Sub Type	Battery Holder
	Number of Cells	1
	Mount Type	PCB
	Body Material	Polybutylene Terephthalate
	Termination Type	Surface Mount
	Series	CH-23
	Height	5.4mm
	Standards/Approvals	No
	Diameter	12.5mm
	Width	15mm

	Select all
	Brand RS PRO
	Product Type Battery Holder
	Compatible Battery Size CR1220
	Sub Type Battery Holder
	Number of Cells 1
	Mount Type PCB
	Body Material Polybutylene Terephthalate
	Termination Type Surface Mount
	Series CH-23
	Height 5.4mm
	Standards/Approvals No
	Diameter 12.5mm
	Width 15mm

COO (Country of Origin):: CN

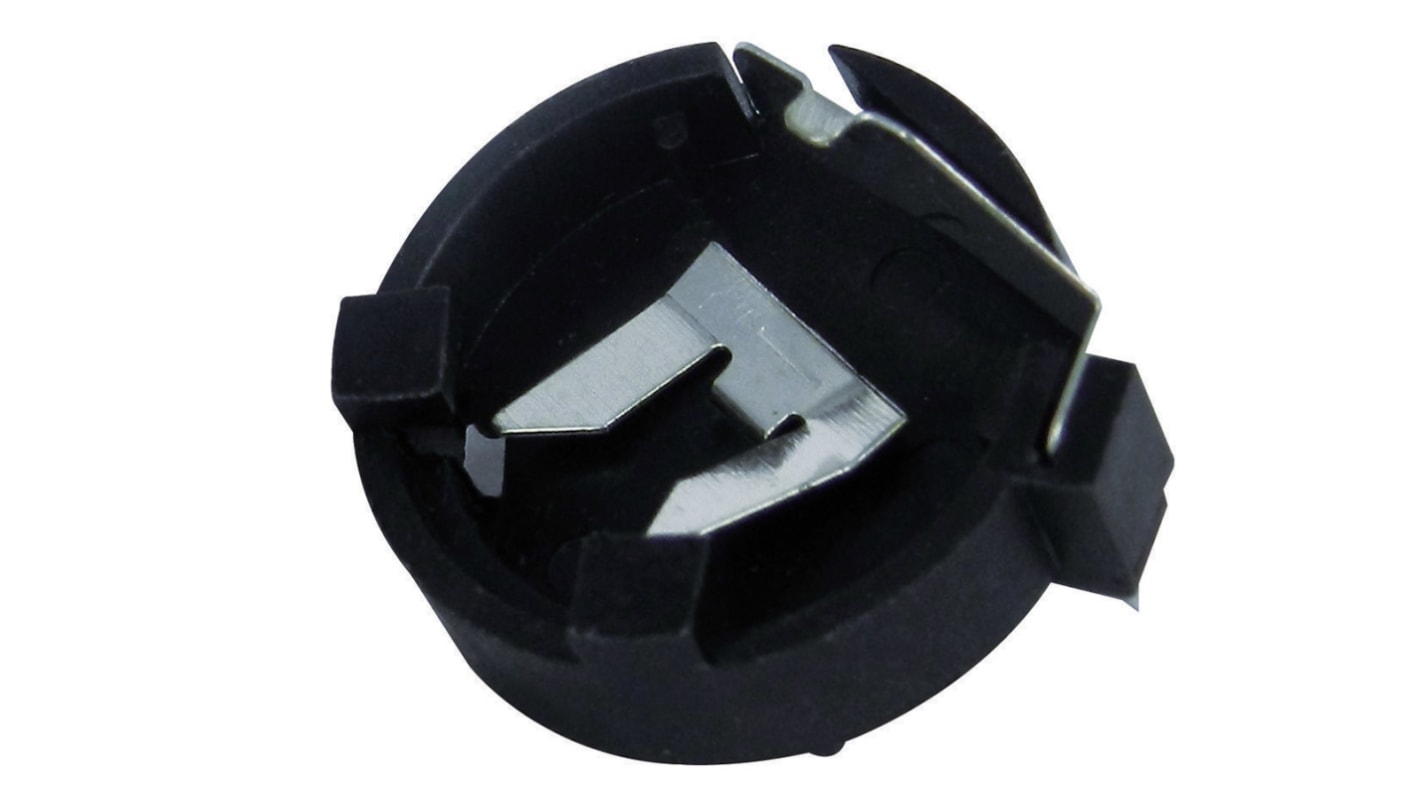

RS PRO Battery Holder

The RS PRO battery holder is suitable for a CR1220 battery and it has dimensions of 15mm (diameter) x 5.4mm. It has a voltage rating of 500V (AC/DC) and a current rating of 2A.

Features and Benefits

• Material: PBT +30% glass filled

• Operating temperature ranges between -55°C and 85°C

• Contact: Phosphor bronze 0.2mm thick tin plated over nickel

• Insulation resistance: 500megaohms

• Contact resistance: 30milliohms maximum

• Humidity: 40°C

Certifications

• UL 94V0 approved
