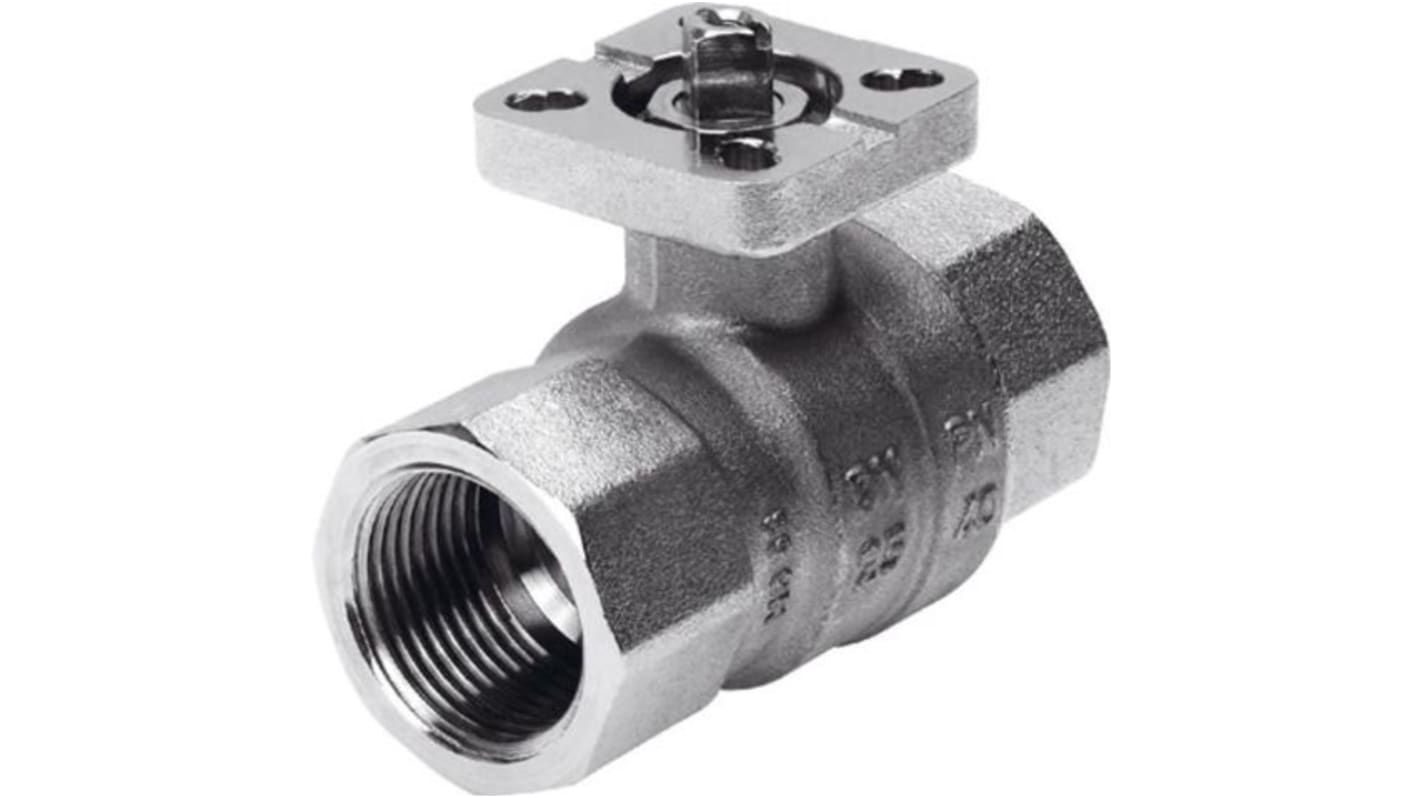

Festo Nickel Plated Brass Threaded, R Threaded, Ball Valve

RS Stock No.:: 203-5939
Mfr. Part No.:: VAPB-1/4-F-40-F03
Brand:: Festo

Festo Nickel Plated Brass Threaded, R Threaded, Ball Valve

Subtotal (1 unit)*

£22.37

(exc. VAT)

£26.84

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 06 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£22.37

*price indicative

RS Stock No.:: 203-5939
Mfr. Part No.:: VAPB-1/4-F-40-F03
Brand:: Festo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Inlet Connection Type	Threaded
	Product Type	Ball Valve
	Outlet Connection Type	Threaded
	Ball Material	Chrome Plated Brass
	Seal Material	Hydrogenated Nitrile Butadiene Rubber
	Outlet Port Size	1/4 in
	Body Material	Nickel Plated Brass
	Inlet Thread Standard	R
	Actuator Included	Yes
	Handle Material	Brass
	Maximum Operating Temperature	150°C
	Standards/Approvals	ISO8573-1:2010, ISO 5211, RoHS

	Select all
	Brand Festo
	Inlet Connection Type Threaded
	Product Type Ball Valve
	Outlet Connection Type Threaded
	Ball Material Chrome Plated Brass
	Seal Material Hydrogenated Nitrile Butadiene Rubber
	Outlet Port Size 1/4 in
	Body Material Nickel Plated Brass
	Inlet Thread Standard R
	Actuator Included Yes
	Handle Material Brass
	Maximum Operating Temperature 150°C
	Standards/Approvals ISO8573-1:2010, ISO 5211, RoHS

COO (Country of Origin):: IT

Festo Ball Valve, 40 mm Compression Fitting Size, 40 Bar Operating Pressure - VAPB-1/4-F-40-F03, Numeric Part Number: 534302

This ball valve by Festo is a versatile and reliable solution for controlling the flow of various media in industrial applications. With its durable chrome plated brass ball and nickel plated brass body, this valve offers high performance in demanding environments. The 40 mm compression fitting and 1/4 in thread ensure easy installation, while its high pressure rating of 40 Bar makes it suitable for a wide range of applications.

Features & Benefits

• Suitable for a wide range of applications in the automation, electronics, electrical, and mechanical industries

• 2-way design for versatile flow control

• Soft sealing principle for reliable operation

• Reversible flow direction for flexibility in installation

• Complies with RoHS regulations for environmental sustainability

Applications

• For use in compressed air systems in accordance with ISO8573-1:2010 standards

• Ideal for controlling inert gases, water, and neutral fluids

• Suitable for medium temperatures ranging from -20 to 150 °C

Can it handle high-pressure applications?

This ball valve is designed to operate at a maximum pressure of 40 Bar, making it ideal for high-pressure systems.

Is this valve suitable for use with different types of media?

Yes, this ball valve can handle compressed air, inert gases, water, and neutral fluids, providing versatility in various applications.

Will it fit my existing setup?

With a 40mm compression fitting and 1/4 in thread size, this valve is compatible with most standard installations.
