Festo Nickel Plated Brass Threaded, R Threaded, Ball Valve
- RS Stock No.:
- 203-5920
- Mfr. Part No.:
- VAPB-1 1/4-F-40-F0405
- Brand:
- Festo
Subtotal (1 unit)*
£49.46
(exc. VAT)
£59.35
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 4 unit(s) shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £49.46 |
*price indicative
- RS Stock No.:
- 203-5920
- Mfr. Part No.:
- VAPB-1 1/4-F-40-F0405
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Ball Valve | |
| Inlet Connection Type | Threaded | |
| Outlet Connection Type | Threaded | |
| Ball Material | Chrome Plated Brass | |
| Seal Material | Hydrogenated Nitrile Butadiene Rubber | |
| Outlet Port Size | 1.5 in | |
| Flow Factor Kv | 121m³/h | |
| Body Material | Nickel Plated Brass | |
| Inlet Thread Standard | R | |
| Actuator Included | Yes | |
| Maximum Operating Temperature | 150°C | |
| Handle Material | Brass | |
| Standards/Approvals | ISO8573-1:2010, ISO 5211, RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Ball Valve | ||
Inlet Connection Type Threaded | ||
Outlet Connection Type Threaded | ||
Ball Material Chrome Plated Brass | ||
Seal Material Hydrogenated Nitrile Butadiene Rubber | ||
Outlet Port Size 1.5 in | ||
Flow Factor Kv 121m³/h | ||
Body Material Nickel Plated Brass | ||
Inlet Thread Standard R | ||
Actuator Included Yes | ||
Maximum Operating Temperature 150°C | ||
Handle Material Brass | ||
Standards/Approvals ISO8573-1:2010, ISO 5211, RoHS | ||
- COO (Country of Origin):
- IT

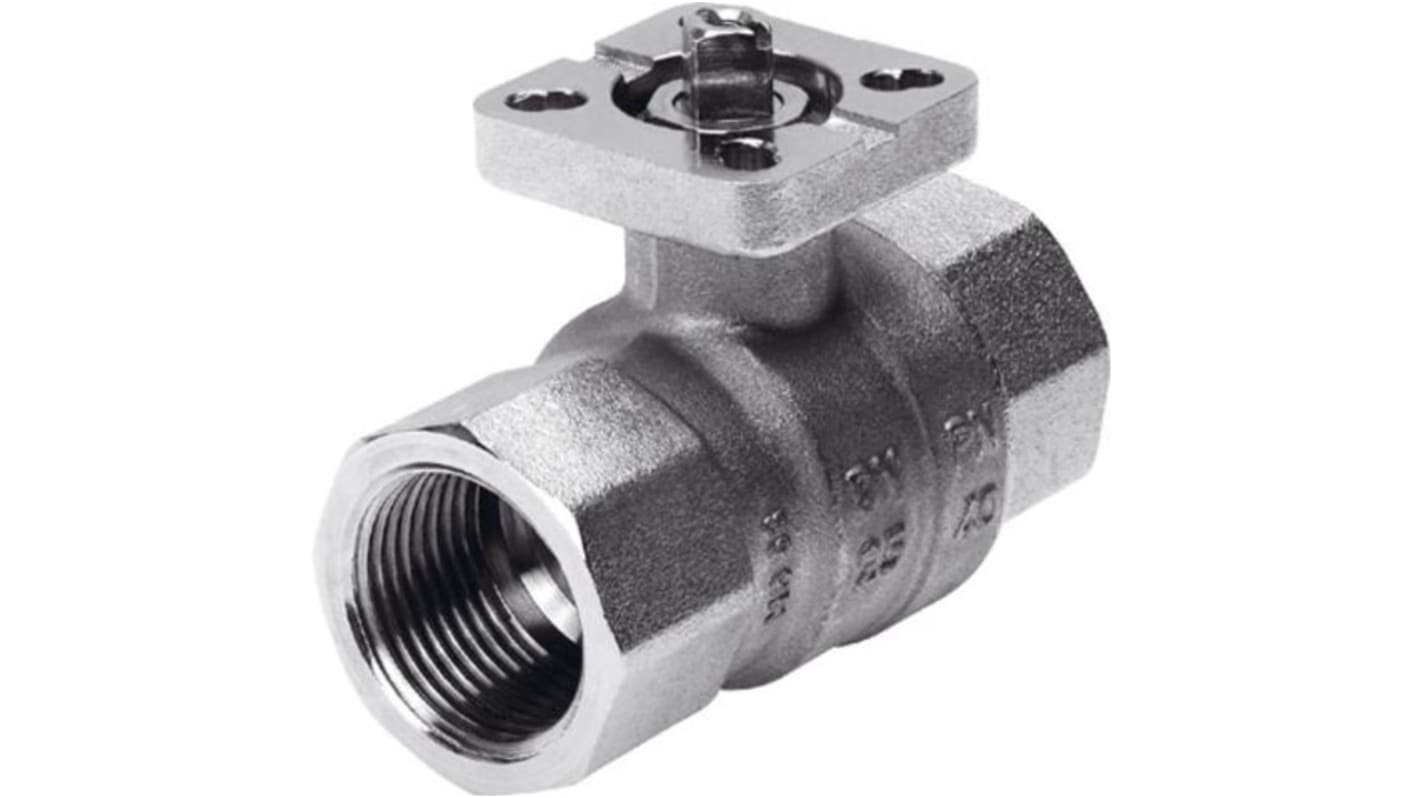

The Festo VAPB series pneumatic 2-way ball valve is a barrel with female thread of Rp1 1/4 connection. The valve is made of brass with F0405 top flange design. It has PN 40 nominal valve pressure.
Type of actuation = mechanical
Sealing principle = soft
Assembly position = any
Mounting type = line installation
