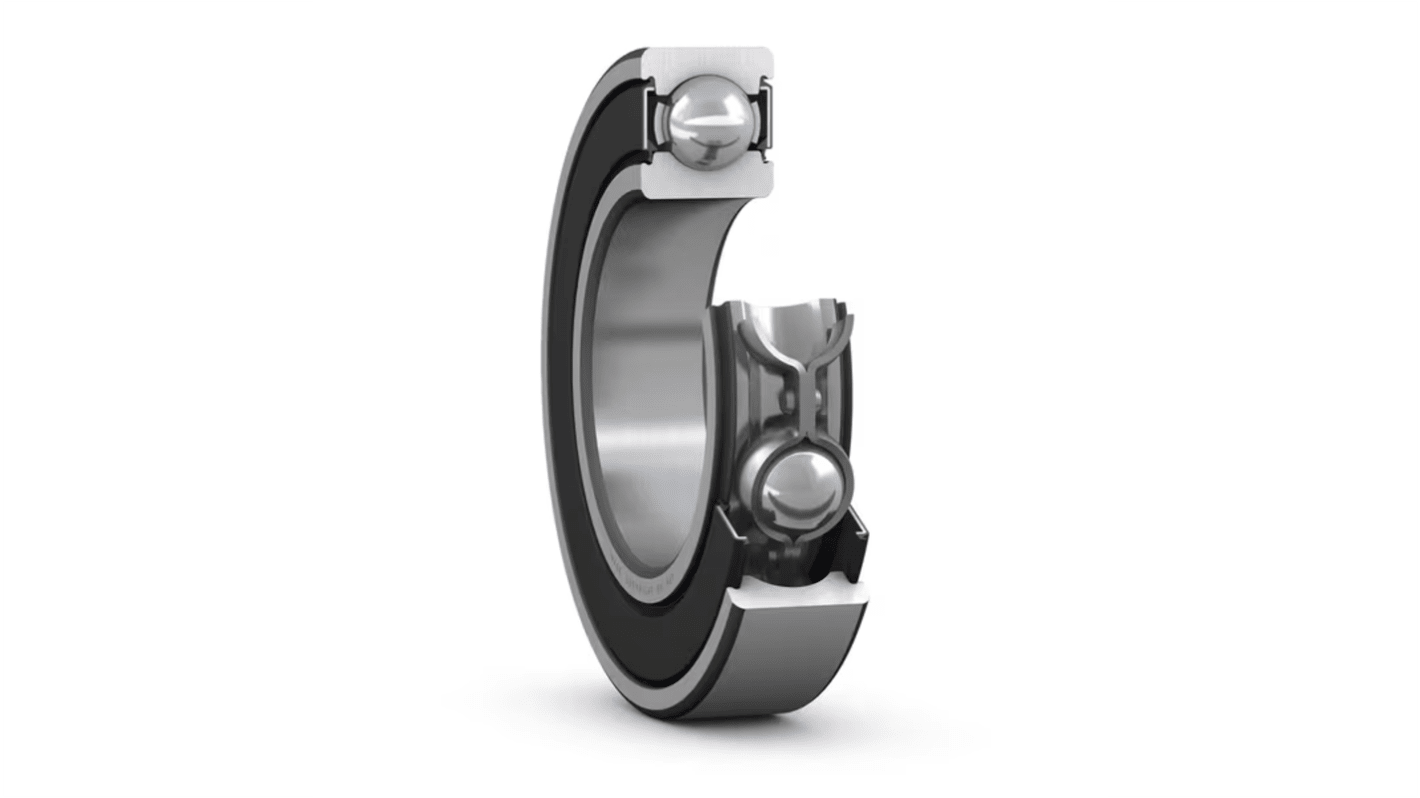

SKF 6301-2RSH/C3 Single Row Deep Groove Ball Bearing- Both Sides Sealed 12mm I.D, 37mm O.D
- RS Stock No.:
- 667-1229
- Mfr. Part No.:
- 6301-2RSH/C3
- Brand:
- SKF
Save 8% when you buy 25 units
Subtotal (1 unit)*
£5.50
(exc. VAT)
£6.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 56 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £5.50 |
5 - 9 | £5.27 |
10 - 24 | £5.16 |
25 + | £5.05 |
*price indicative
- RS Stock No.:
- 667-1229
- Mfr. Part No.:
- 6301-2RSH/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 12mm | |
Outside Diameter | 37mm | |
Race Width | 12mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 4.15kN | |
Dynamic Load Rating | 10.1kN | |
Bore Type | Parallel | |
Clearance Code | C3 | |
Bearing Series | 3 Medium | |
Race Type | Plain | |
Model Number p | 6301 | |
Partial Bearing Code | 6301 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 12mm | ||
Outside Diameter 37mm | ||
Race Width 12mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 4.15kN | ||
Dynamic Load Rating 10.1kN | ||
Bore Type Parallel | ||
Clearance Code C3 | ||
Bearing Series 3 Medium | ||
Race Type Plain | ||
Model Number p 6301 | ||
Partial Bearing Code 6301 | ||
RoHS Status: Exempt
SKF Ball Bearing, 12mm Inside Diameter, 37mm Outside Diameter - 6301-2RSH/C3
This deep groove ball bearing is designed for high-performance applications, featuring an internal diameter of 12mm and an external diameter of 37mm. This single row ball bearing, with both sides sealed and a race width of 12mm, is engineered to deliver reliable performance in various mechanical settings. It boasts a C3 clearance, ensuring a suitable fit for dynamic loads.
Features & Benefits
• High dynamic load rating of 10.1 kN ensures durability
• Dual seals protect against contaminants and prolong lifespan
• C3 clearance offers enhanced tolerances for thermal expansion
• Steel construction provides strength and corrosion resistance
• Suitable for high-speed applications, rated up to 14,000 r/min
• Compact design optimises space while maintaining performance
• Dual seals protect against contaminants and prolong lifespan
• C3 clearance offers enhanced tolerances for thermal expansion
• Steel construction provides strength and corrosion resistance
• Suitable for high-speed applications, rated up to 14,000 r/min
• Compact design optimises space while maintaining performance
Applications
• Utilised in electric motor assemblies for efficient performance
• Common in conveyor systems for steady materials handling
• Employed in automotive for reliable operation
• Suitable for machinery in automation settings for precise movements
• Integrated into industrial equipment for consistent efficiency
• Common in conveyor systems for steady materials handling
• Employed in automotive for reliable operation
• Suitable for machinery in automation settings for precise movements
• Integrated into industrial equipment for consistent efficiency
What advantages does the sealing arrangement provide?
The sealing arrangement on both sides protects against dust and moisture, enhancing longevity and maintaining optimal function in harsh environments. This dual-seal design prevents lubricant loss and provides superior protection against contamination.
How does the C3 clearance impact operational efficiency?
The C3 clearance allows for greater internal clearance, accommodating thermal expansion and reducing the risk of interference during operation. This feature enhances performance stability, especially under varying load conditions.
What load ratings does this bearing support?
The static load rating is 4.15 kN, while the dynamic load rating reaches 10.1 kN, making it suitable for applications with varying load requirements. This balance allows for both high-performance movements and static applications.
How can the speed rating influence application selection?
With a speed rating of 14,000 r/min, this bearing is ideal for high-speed operations, enabling efficient rotation and reduced operational wear. Selecting a bearing with an adequate speed rating ensures optimal performance in fast-moving applications.
