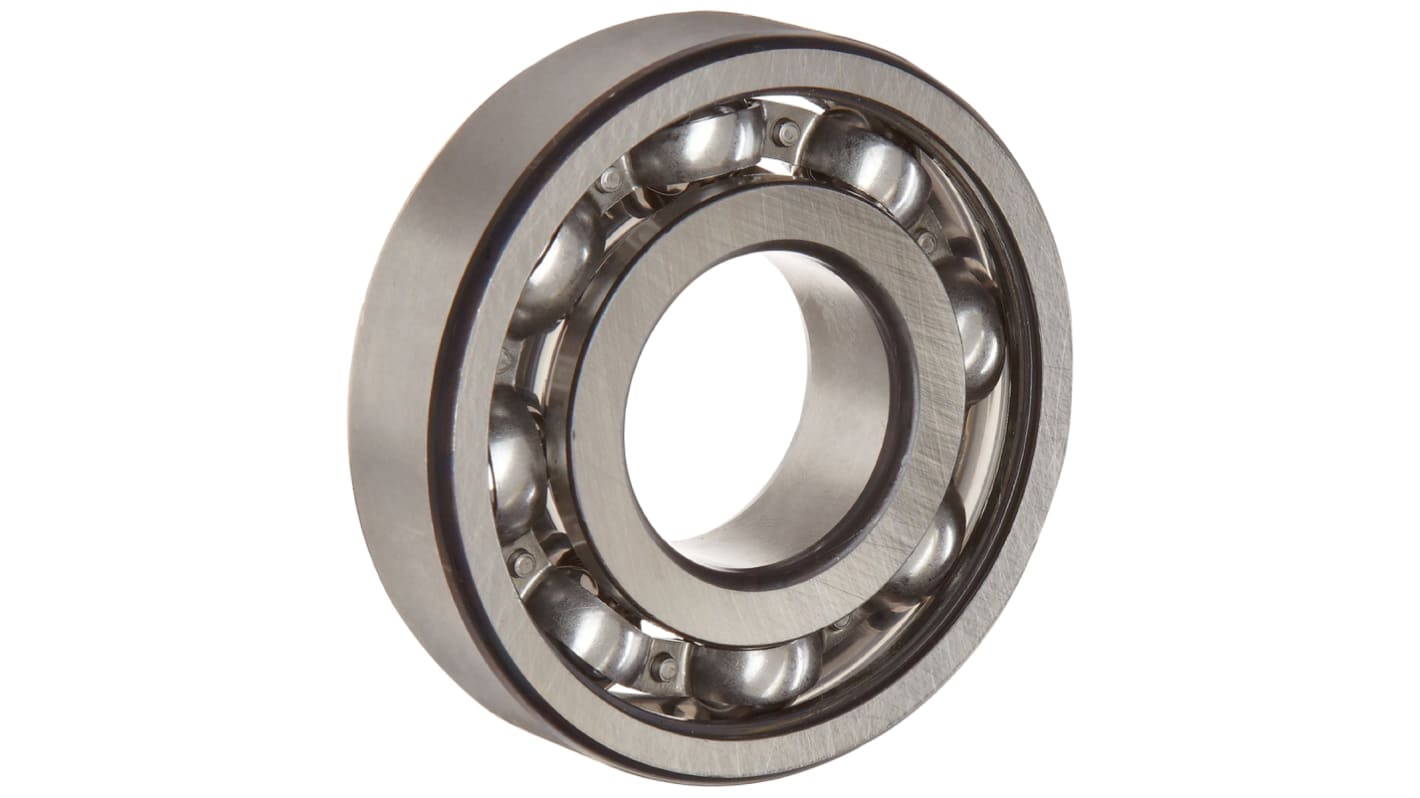

SKF 6301/C3 Single Row Deep Groove Ball Bearing- Open Type 12mm I.D, 37mm O.D
- RS Stock No.:
- 144-0849
- Mfr. Part No.:
- 6301/C3
- Brand:
- SKF
Save 8% when you buy 25 units
Subtotal (1 unit)*
£5.70
(exc. VAT)
£6.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 21 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £5.70 |
5 - 9 | £5.45 |
10 - 24 | £5.35 |
25 + | £5.22 |
*price indicative
- RS Stock No.:
- 144-0849
- Mfr. Part No.:
- 6301/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 12mm | |
Outside Diameter | 37mm | |
Race Width | 12mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 4.15kN | |
Dynamic Load Rating | 10.1kN | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Partial Bearing Code | 6301 | |
Race Material | Steel | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 12mm | ||
Outside Diameter 37mm | ||
Race Width 12mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 4.15kN | ||
Dynamic Load Rating 10.1kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Partial Bearing Code 6301 | ||
Race Material Steel | ||
Race Type Plain | ||
- COO (Country of Origin):
- IT
SKF Ball Bearing, Deep Groove Bearing Type, Plain Race, 12mm ID, 37mm OD - 6301/C3
Support the movement of your machinery with this single-row ball bearing from SKF. As a deep-groove type, it's suitable for supporting axial and radial loads and high speeds up to a continuous rate of 28,000r/min. Its design means it minimises friction, noise and vibration to reduce wear and improve your working environment. The cage, race and balls are made from steel, so this is a strong and durable option with reduced maintenance needs. It's designed with a greater internal clearance than standard bearings, to leave plenty of room for expansion of the metal. Use it with powerful motors and in applications that are subject to variable temperatures.
Features & Benefits
• Open-ended construction, making it easy to lubricate as needed
• Outside diameter of 37mm means it's compact and suited to smaller machines
• One-piece unit with a cylindrical bore for quick and easy fitting on shafts
• Outside diameter of 37mm means it's compact and suited to smaller machines
• One-piece unit with a cylindrical bore for quick and easy fitting on shafts
Applications
• Machine tools
• Packaging systems
• Domestic appliances
• Office equipment
• Packaging systems
• Domestic appliances
• Office equipment
What loads can this ball bearing safely handle?
The ball bearing has a dynamic load rating of 10.1kN. This means it can safely handle heavy loads while it's in motion.
