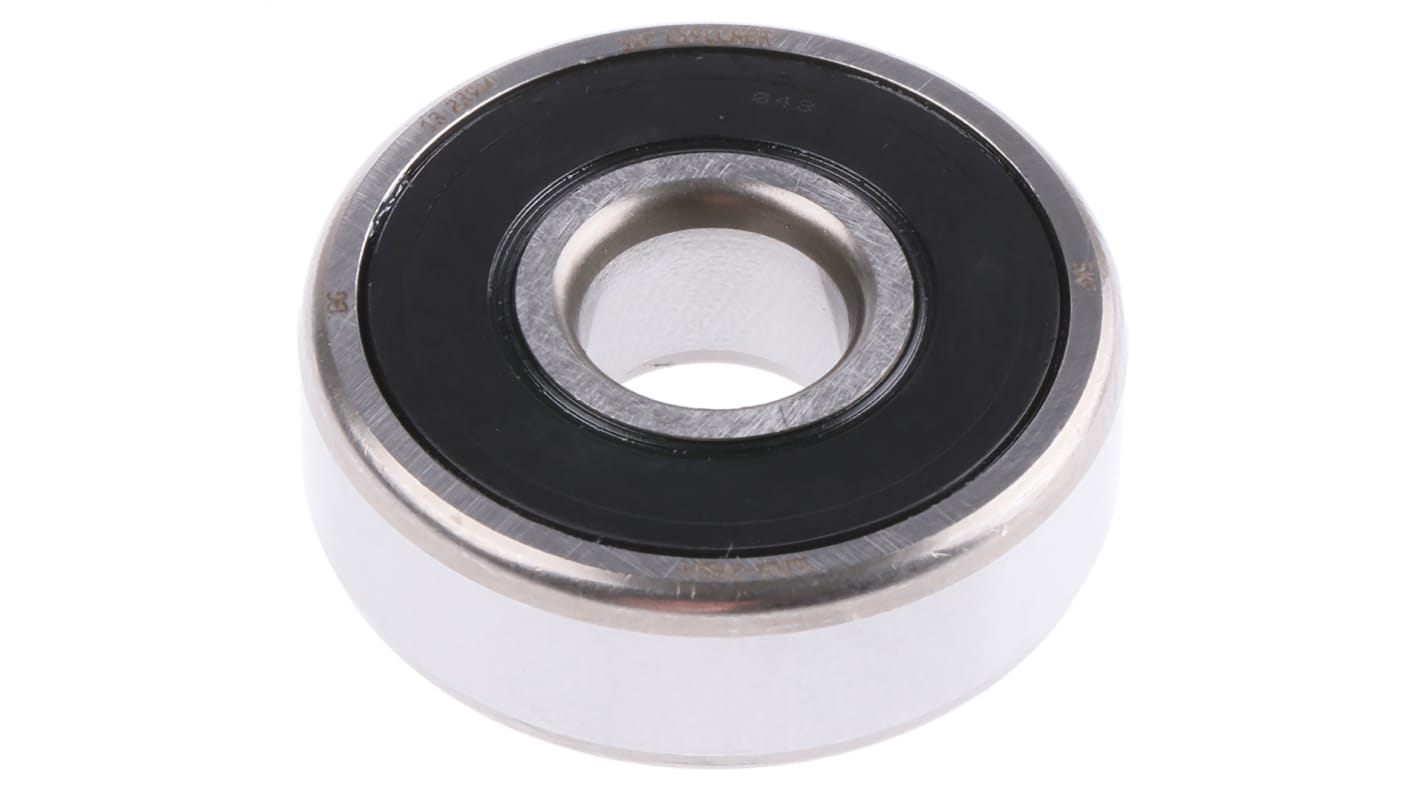

SKF 6301-2RSH Single Row Deep Groove Ball Bearing- Both Sides Sealed 12mm I.D, 37mm O.D
- RS Stock No.:
- 442-0127
- Mfr. Part No.:
- 6301-2RSH
- Brand:
- SKF
Save 8% when you buy 25 units
Subtotal (1 unit)*
£6.78
(exc. VAT)
£8.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 24 unit(s) ready to ship
- Plus 36 unit(s) ready to ship from another location
- Plus 999,999,975 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £6.78 |
5 - 9 | £6.49 |
10 - 24 | £6.40 |
25 + | £6.22 |
*price indicative
- RS Stock No.:
- 442-0127
- Mfr. Part No.:
- 6301-2RSH
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 12mm | |
Outside Diameter | 37mm | |
Race Width | 12mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 4.15kN | |
Dynamic Load Rating | 10.1kN | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Race Type | Plain | |
Partial Bearing Code | 6301 | |
Model Number p | 63012RS | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 12mm | ||
Outside Diameter 37mm | ||
Race Width 12mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 4.15kN | ||
Dynamic Load Rating 10.1kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Race Type Plain | ||
Partial Bearing Code 6301 | ||
Model Number p 63012RS | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
SKF Deep-Groove Ball Bearing, 12mm ID, 37mm OD - 6301-2RSH
This single-row deep-groove ball bearing from SKF offers versatility and high performance while handling both fast and very fast speeds. It supports radial and axial loads moving in both directions and has a dynamic load rating of 10.1kN and a static load rating of 4.15kN to accommodate heavy-duty industrial processes. Contact seals made of synthetic rubber reinforced with sturdy sheet steel are resistant to oil and wear. They also stop dirt from getting in and prevent lubricant leakage. This helps minimise maintenance needs while ensuring long-lasting service.
• Reduced noise and minimal vibrations for a quiet and safe working environment
• Stainless steel balls won't corrode if exposed to moisture or chemicals
• Parallel bore helps accommodate misalignment for lower risk of failure
• Stainless steel balls won't corrode if exposed to moisture or chemicals
• Parallel bore helps accommodate misalignment for lower risk of failure
Applications
• Mining and mineral production
• Metallurgy
• Pulp and paper production
• Metallurgy
• Pulp and paper production
What are the benefits of SKF ball bearings?
SKF bearings are specially designed for high-performance and long-lasting service. These bearings are pre-lubricated with a high-quality grease to reduce friction and maintenance for a lower risk of failure and greater reliability.
