- RS Stock No.:
- 442-0105
- Mfr. Part No.:
- 6205-2RSH
- Brand:
- SKF
- RS Stock No.:
- 442-0105
- Mfr. Part No.:
- 6205-2RSH
- Brand:
- SKF
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- BG
Product Details

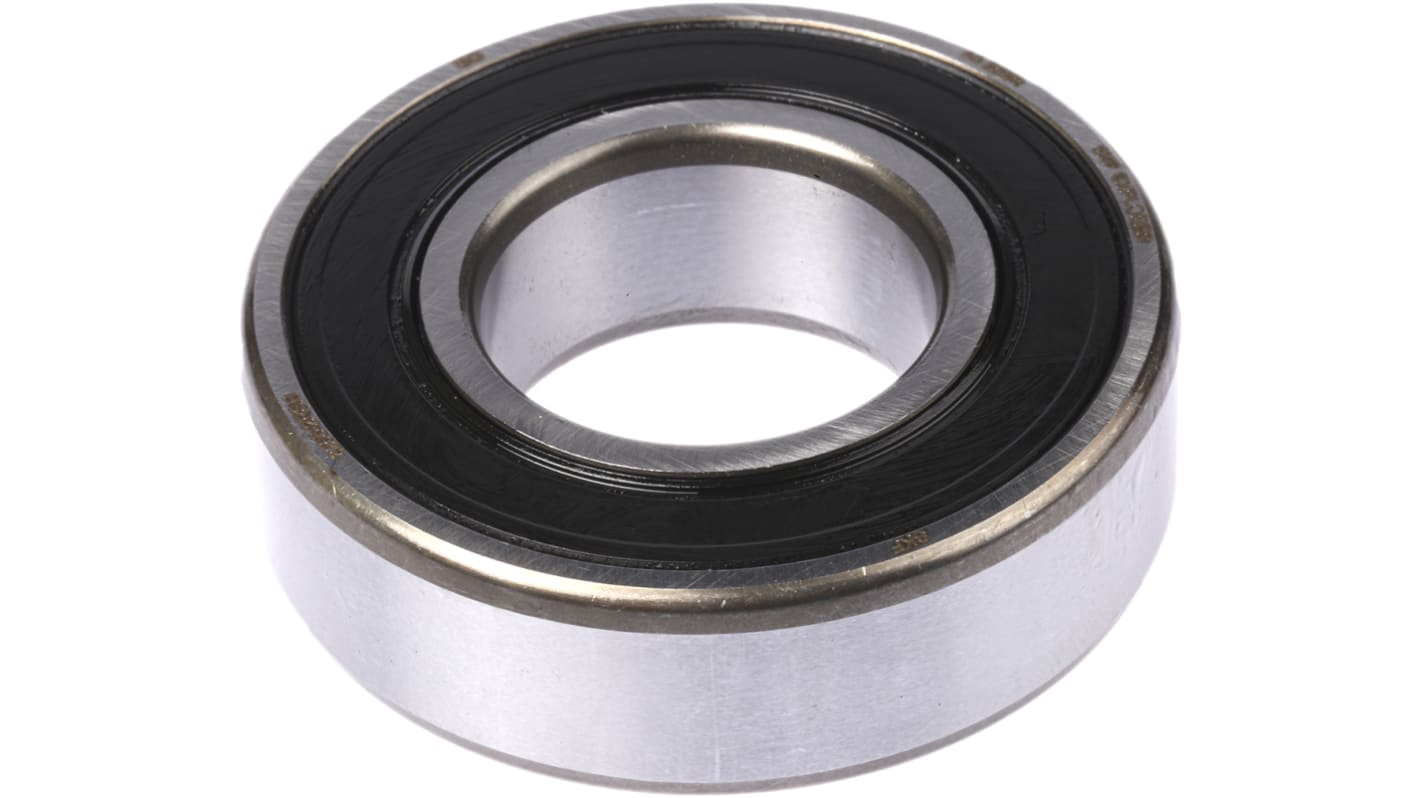

SKF Plain Deep-Groove Ball Bearing, 25mm ID, 52mm OD - 6205-2RSH
Reduce strain and friction in your machines with this deep-groove ball bearing from SKF. The unit has two contact seals made of sheet steel-reinforced NBR (nitrile butadiene rubber) to stop lubricant from leaking and prevent contaminants from entering the bearing. Its compact outside diameter of 52mm and inside diameter of 25mm make it a good choice for use in machinery where space is limited. Thanks to its static load rating of 7.8kN and its dynamic load rating of 14.8kN, it can withstand use in heavy-duty applications.
• Limiting speed of 8500rpm (rotations per minute) for use in high-speed applications
• Made from steel for resistance to corrosion and impact
• Wide operating temperature range of -40°C to +100°C for use in demanding environments
• Can handle radial or axial loads for versatility
• Made from steel for resistance to corrosion and impact
• Wide operating temperature range of -40°C to +100°C for use in demanding environments
• Can handle radial or axial loads for versatility
Applications
• Jet engines
• Gearboxes
• Dishwashers
• Copy machines
• Three-wheelers
• Gearboxes
• Dishwashers
• Copy machines
• Three-wheelers
How is this ball bearing lubricated?
This ball bearing is simple to lubricate – just remove the rubber seal and apply oil or grease directly into the mechanism. Once you've applied the lubricant, replace the rubber seal.
Specifications
Attribute | Value |
---|---|
Inside Diameter | 25mm |
Outside Diameter | 52mm |
Race Width | 15mm |
Ball Bearing Type | Single Row Deep Groove Ball Bearing |
Sealing Arrangement | Both Sides Sealed |
Bearing Clearance | CN |
Material | Steel |
Ball Material | Steel |
Cage Material | Sheet Metal |
Number of Rows | 1 |
Static Load Rating | 7.8kN |
Dynamic Load Rating | 14.8kN |
Bore Type | Parallel |
Bearing Series | 2 Light |
Model Number p | 62052RS |
Race Type | Plain |
Partial Bearing Code | 6205 |
