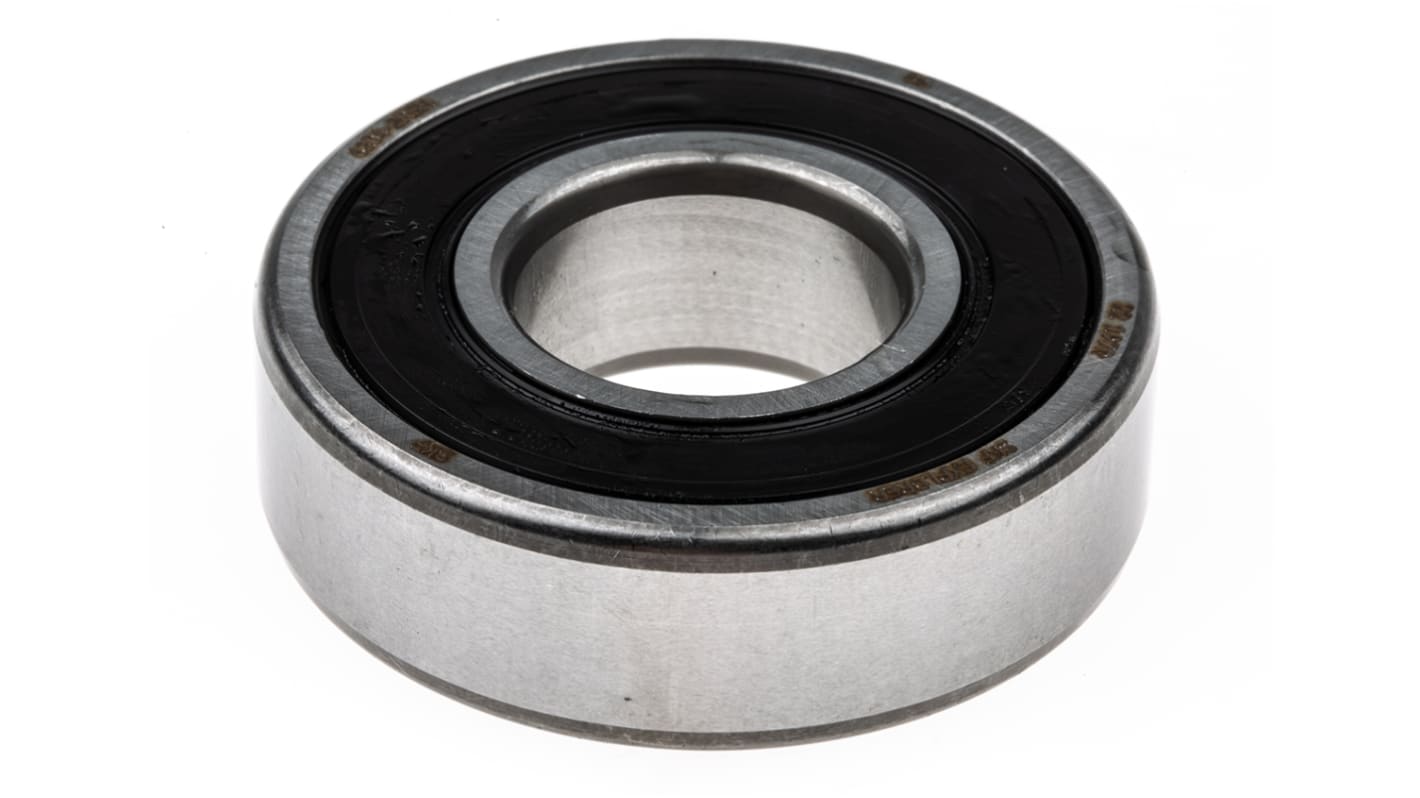

SKF 6204-2RSH Single Row Deep Groove Ball Bearing- Both Sides Sealed 20mm I.D, 47mm O.D
- RS Stock No.:
- 442-0098
- Mfr. Part No.:
- 6204-2RSH
- Brand:
- SKF
Save 8% when you buy 25 units
Subtotal (1 unit)*
£7.37
(exc. VAT)
£8.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 143 unit(s) ready to ship
- Plus 392 unit(s) ready to ship from another location
- Plus 105 unit(s) shipping from 07 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £7.37 |
5 - 9 | £7.11 |
10 - 24 | £6.94 |
25 + | £6.74 |
*price indicative
- RS Stock No.:
- 442-0098
- Mfr. Part No.:
- 6204-2RSH
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 20mm | |
Outside Diameter | 47mm | |
Race Width | 14mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 6.55kN | |
Dynamic Load Rating | 13.5kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Model Number p | 62042RS | |
Partial Bearing Code | 6204 | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 20mm | ||
Outside Diameter 47mm | ||
Race Width 14mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 6.55kN | ||
Dynamic Load Rating 13.5kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Model Number p 62042RS | ||
Partial Bearing Code 6204 | ||
Race Type Plain | ||
RoHS Status: Exempt
SKF Deep-Groove Ball Bearing, 20 mm ID, 47 mm OD - 6204-2RSH
This versatile SKF single-row deep-groove ball bearing handles axial and radial loads in either direction at both high and very high speeds. The solidly constructed steel balls require little maintenance, thanks to the bearing's two wear-resistant synthetic rubber seals. These seals prevent dust, water or other contaminants from entering the workings and causing damage. Use this product for a range of applications, including automation and industrial machinery.
• Broad operating temperature range of -40° to +120° for use in a wide range of challenging industrial environments
• Made of steel for durability and resistance to corrosion
• Made of steel for durability and resistance to corrosion
Application Information
• Food and beverage production
• Medical and pharmaceutical industries
• Printing and binding
• Medical and pharmaceutical industries
• Printing and binding
What's the difference between dynamic load and static load?
Dynamic load refers to the weight that the ball bearing can move without being damaged, while static load refers to the weight that the ball bearing can safely hold in place. This ball bearing has a static load rating of 6.55 kilonewtons (kN) and a dynamic load rating of 13.5 kilonewtons (kN) for use in heavy-duty applications.
