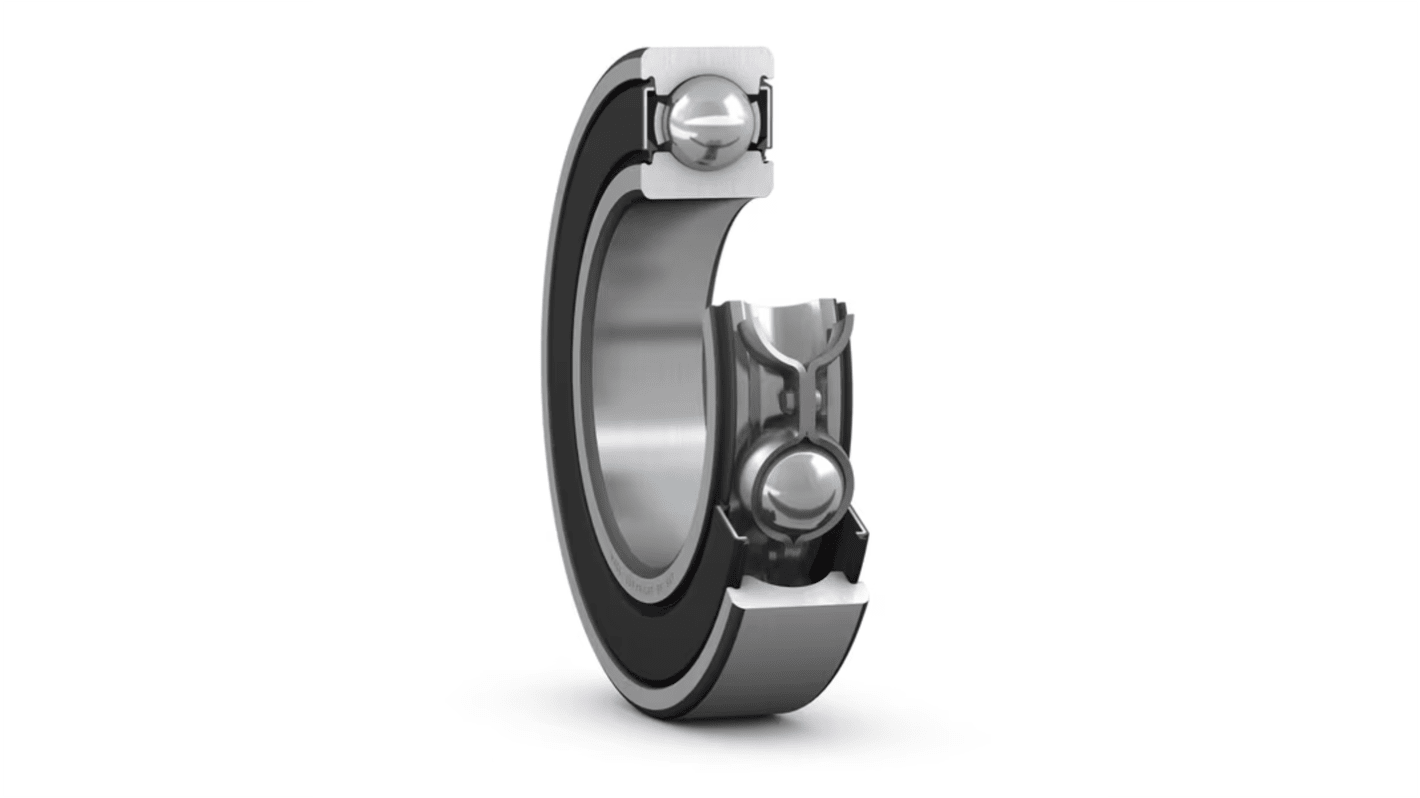

SKF 6204-2RSH/C3GJN Single Row Deep Groove Ball Bearing- Both Sides Sealed 20mm I.D, 47mm O.D
- RS Stock No.:
- 123-4825
- Mfr. Part No.:
- 6204-2RSH/C3GJN
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£16.24
(exc. VAT)
£19.49
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £16.24 |
5 - 9 | £15.56 |
10 - 24 | £15.26 |
25 + | £14.96 |
*price indicative
- RS Stock No.:
- 123-4825
- Mfr. Part No.:
- 6204-2RSH/C3GJN
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 20mm | |
Outside Diameter | 47mm | |
Race Width | 14mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 6.55kN | |
Dynamic Load Rating | 13.5kN | |
Clearance Code | C3 | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Race Type | Plain | |
Partial Bearing Code | 6204 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 20mm | ||
Outside Diameter 47mm | ||
Race Width 14mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 6.55kN | ||
Dynamic Load Rating 13.5kN | ||
Clearance Code C3 | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Race Type Plain | ||
Partial Bearing Code 6204 | ||
SKF High Temperature Deep Groove Ball Bearing
SKF Ball Bearings are designed to deliver increased reliability, reduced complexity and decreased environmental impact in high operating temperatures.
Features:
Excellent performance in hot conditions, dry environments and low rotational speed applications
Temperature range -30°C to 150°C
Suitable for high and very high speeds
Steel/Ceramic ball material
Plain race type
Low friction
Available in many designs, variants and sizes
Why choose Deep Groove Ball Bearings?
For their versatility - channelling radial and axial loads they are widely used in many industries
Cost efficient - due to low friction torque the temperature remains low therefore reduces the energy cost of running in equipment such as the conveyor belt
Low maintenance - no additional lubrication after installation
Applications:
Agricultural industry
Food processing
Machine Tools
Material handling
Medical/Pharmaceutical
Printing
Wind energy
What is the inner ring diameter?
A range between 6 mm to 40 mm
What is internal/external design?
2RS1 - Contact seal NBR on both sides 2RSH - Contact seal NBR on both sides
Z, 2Z - Shield on one or both sides
2RSL - RSL low-friction contact seal on both sides of the bearing
2RZ - RZ low-friction non-contact seal on both sides of the bearing
2ZNR - Shield on both sides, snap ring groove in the outer ring, with snap ring
NR - Snap ring groove in the outer ring, with an appropriate snap ring
E - Reinforced ball set
Cage Design
TN9 - Glass fibre reinforced polyamide 66 cages, rolling element centred
Stainless steel
Lubrication
GJN - Grease with a polyurea thickener of consistency 2 to the NLGI scale for a temperature range -30°C to +150°C (normal fill grade) VT162 - Lubricated with Klueber Isoflex Topas NB52 grease
WT - Grease with a polyurea thickener of consistency 2 to 3 to the NLGI Scale for a temperature range –40°C to +160 °C
LHT - Grease with a lithium thickener of consistency 2 to 3 to the NLGI Scale for a temperature range –50°C to +140 °C
HT - Grease with a polyurea thickener of consistency 2 to 3 to the NLGI Scale for a temperature range –40°C to +150 °C (normal fill grade)
Accuracy/Clearance
C2 - Radial internal clearance smaller than normal C3 - Internal clearance greater than normal
C4 - Radial internal clearance greater than C3
C5 - Radial internal clearance greater than C4
Features:
Excellent performance in hot conditions, dry environments and low rotational speed applications
Temperature range -30°C to 150°C
Suitable for high and very high speeds
Steel/Ceramic ball material
Plain race type
Low friction
Available in many designs, variants and sizes
Why choose Deep Groove Ball Bearings?
For their versatility - channelling radial and axial loads they are widely used in many industries
Cost efficient - due to low friction torque the temperature remains low therefore reduces the energy cost of running in equipment such as the conveyor belt
Low maintenance - no additional lubrication after installation
Applications:
Agricultural industry
Food processing
Machine Tools
Material handling
Medical/Pharmaceutical
Printing
Wind energy
What is the inner ring diameter?
A range between 6 mm to 40 mm
What is internal/external design?
2RS1 - Contact seal NBR on both sides 2RSH - Contact seal NBR on both sides
Z, 2Z - Shield on one or both sides
2RSL - RSL low-friction contact seal on both sides of the bearing
2RZ - RZ low-friction non-contact seal on both sides of the bearing
2ZNR - Shield on both sides, snap ring groove in the outer ring, with snap ring
NR - Snap ring groove in the outer ring, with an appropriate snap ring
E - Reinforced ball set
Cage Design
TN9 - Glass fibre reinforced polyamide 66 cages, rolling element centred
Stainless steel
Lubrication
GJN - Grease with a polyurea thickener of consistency 2 to the NLGI scale for a temperature range -30°C to +150°C (normal fill grade) VT162 - Lubricated with Klueber Isoflex Topas NB52 grease
WT - Grease with a polyurea thickener of consistency 2 to 3 to the NLGI Scale for a temperature range –40°C to +160 °C
LHT - Grease with a lithium thickener of consistency 2 to 3 to the NLGI Scale for a temperature range –50°C to +140 °C
HT - Grease with a polyurea thickener of consistency 2 to 3 to the NLGI Scale for a temperature range –40°C to +150 °C (normal fill grade)
Accuracy/Clearance
C2 - Radial internal clearance smaller than normal C3 - Internal clearance greater than normal
C4 - Radial internal clearance greater than C3
C5 - Radial internal clearance greater than C4
SKF 2 Light Series Deep Groove Ball Bearing, 20mm Inside Diameter, 47mm Outside Diameter - 6204-2RSH/C3GJN
This deep groove ball bearing is a durable solution designed for high performance in mechanical applications. It features an inside diameter of 20mm, an outside diameter of 47mm, and a race width of 14mm. Its robust design is crafted for both static and dynamic loads, making it suitable for various industrial uses.
Features & Benefits
• Sealed on both sides to prevent contamination
• High load capacity with a dynamic load rating of 13.5kN
• C3 clearance ensures optimal performance even under temperature variations
• Single row design allows for smooth rotation and minimal vibration
• Made of high-quality steel to enhance durability and longevity
• Cylindrical bore promotes ease of installation
• High load capacity with a dynamic load rating of 13.5kN
• C3 clearance ensures optimal performance even under temperature variations
• Single row design allows for smooth rotation and minimal vibration
• Made of high-quality steel to enhance durability and longevity
• Cylindrical bore promotes ease of installation
Applications
• Ideal for use in electric motors and machine tools
• Used for conveyor systems for smooth operation
• Suitable for automation machinery requiring reliable performance
• Recommended for various electronic equipment for enhanced reliability
• Used for conveyor systems for smooth operation
• Suitable for automation machinery requiring reliable performance
• Recommended for various electronic equipment for enhanced reliability
What is the maximum limiting speed for this component?
The maximum limiting speed for this bearing reaches up to 10,000 r/min, ensuring efficient operation in high-speed applications.
How does the C3 clearance impact the bearing's performance?
The C3 clearance allows for a greater internal clearance, accommodating thermal expansion and ensuring optimal operation under varying temperatures.
What type of materials are used in the bearing's construction?
This bearing is constructed from premium steel, while the cage is made from sheet metal, enhancing strength and resilience against wear and tear.
