SKF 6005-2RSH/C3GJN Single Row Deep Groove Ball Bearing- Both Sides Sealed 25mm I.D, 47mm O.D
- RS Stock No.:
- 123-4813
- Mfr. Part No.:
- 6005-2RSH/C3GJN
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£15.02
(exc. VAT)
£18.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 06 October 2025
- Plus 1 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £15.02 |
5 - 9 | £14.44 |
10 - 24 | £14.13 |
25 + | £13.82 |
*price indicative
- RS Stock No.:
- 123-4813
- Mfr. Part No.:
- 6005-2RSH/C3GJN
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 25mm | |
Outside Diameter | 47mm | |
Race Width | 12mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 6.55kN | |
Dynamic Load Rating | 11.9kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Partial Bearing Code | 6005 | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 25mm | ||
Outside Diameter 47mm | ||
Race Width 12mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 6.55kN | ||
Dynamic Load Rating 11.9kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Partial Bearing Code 6005 | ||
Race Type Plain | ||
- COO (Country of Origin):
- IT

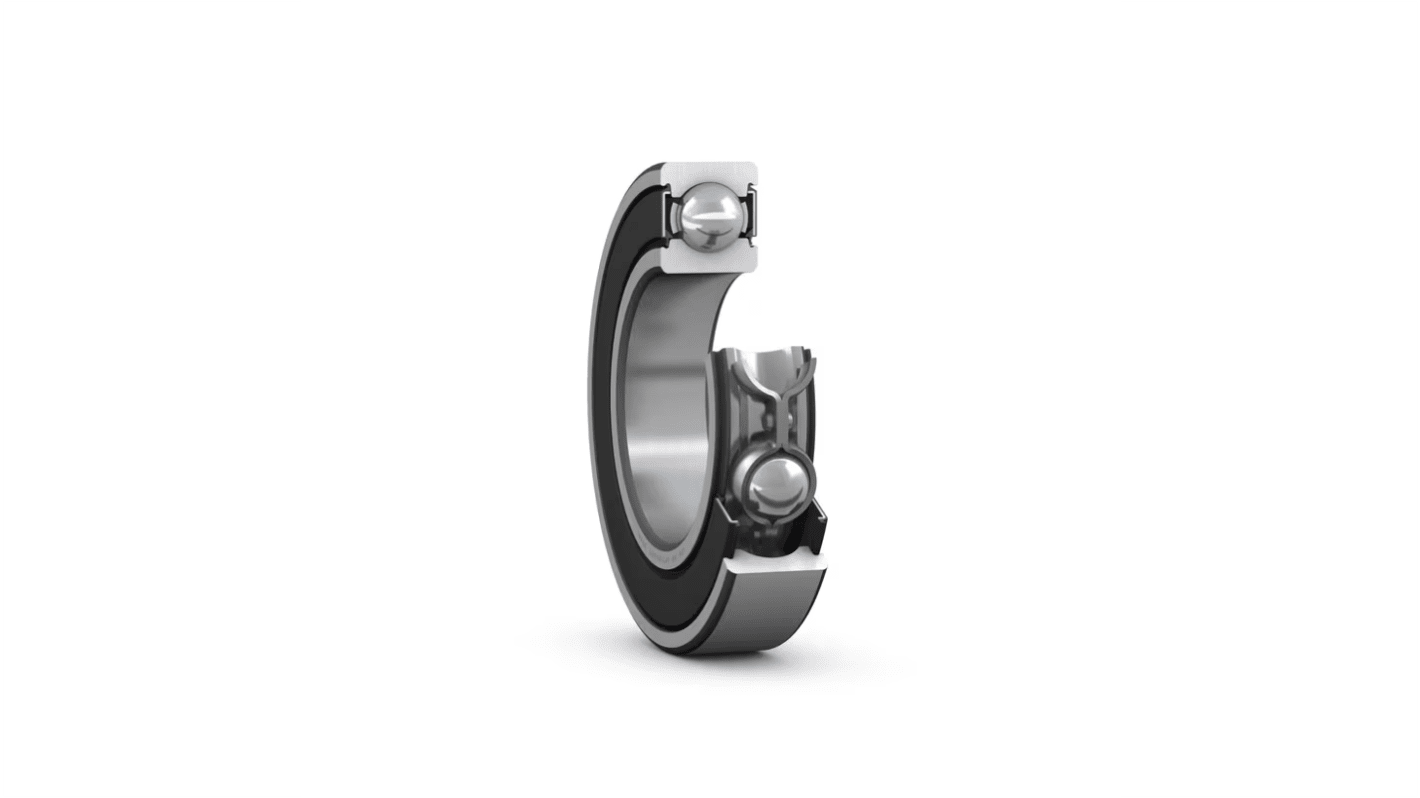

SKF Deep Groove Ball Bearing, 25mm Inside Diameter, 47mm Outside Diameter - 6005-2RSH/C3GJN
This deep groove ball bearing is designed for high-load applications, featuring a cylindrical bore. With an inside diameter of 25mm and an outside diameter of 47mm, this bearing offers a solid solution for various industrial needs, maintaining efficiency with an effective sealing arrangement on both sides.
Features & Benefits
• Constructed from steel to ensure durability and strength
• C3 clearance facilitates operational reliability under varying loads
• Sealed on both sides to protect against contaminants
• Suitable for high dynamic load rating of 11.9 kN
• Designed as a single row deep groove bearing for easy installation
• Lightweight at 0.0806 kg for enhanced usability in automation equipment
• C3 clearance facilitates operational reliability under varying loads
• Sealed on both sides to protect against contaminants
• Suitable for high dynamic load rating of 11.9 kN
• Designed as a single row deep groove bearing for easy installation
• Lightweight at 0.0806 kg for enhanced usability in automation equipment
Applications
• Used in electric motors for improved rotational performance
• Applied in conveyor systems to reduce friction and wear
• Utilised in robotics for precision movement dynamics
• Ideal for gearbox assemblies where space is limited
• Applied in conveyor systems to reduce friction and wear
• Utilised in robotics for precision movement dynamics
• Ideal for gearbox assemblies where space is limited
What specific load ratings should I consider for optimal performance?
It is essential to consider the basic dynamic load rating of 11.9 kN and the static load rating of 6.6 kN to ensure the bearing can handle the intended application without early failure.
How does the sealing arrangement benefit the performance in harsh environments?
The dual sealing arrangement significantly reduces the risk of contamination from dust and moisture, allowing for smoother operation and extended service life, particularly in demanding industrial conditions.
What advantages does a C3 clearance provide in operation?
C3 clearance allows for a buffer between components, accommodating thermal expansion and ensuring smoother operation under load, thus enhancing efficiency and performance longevity in varying temperatures.
