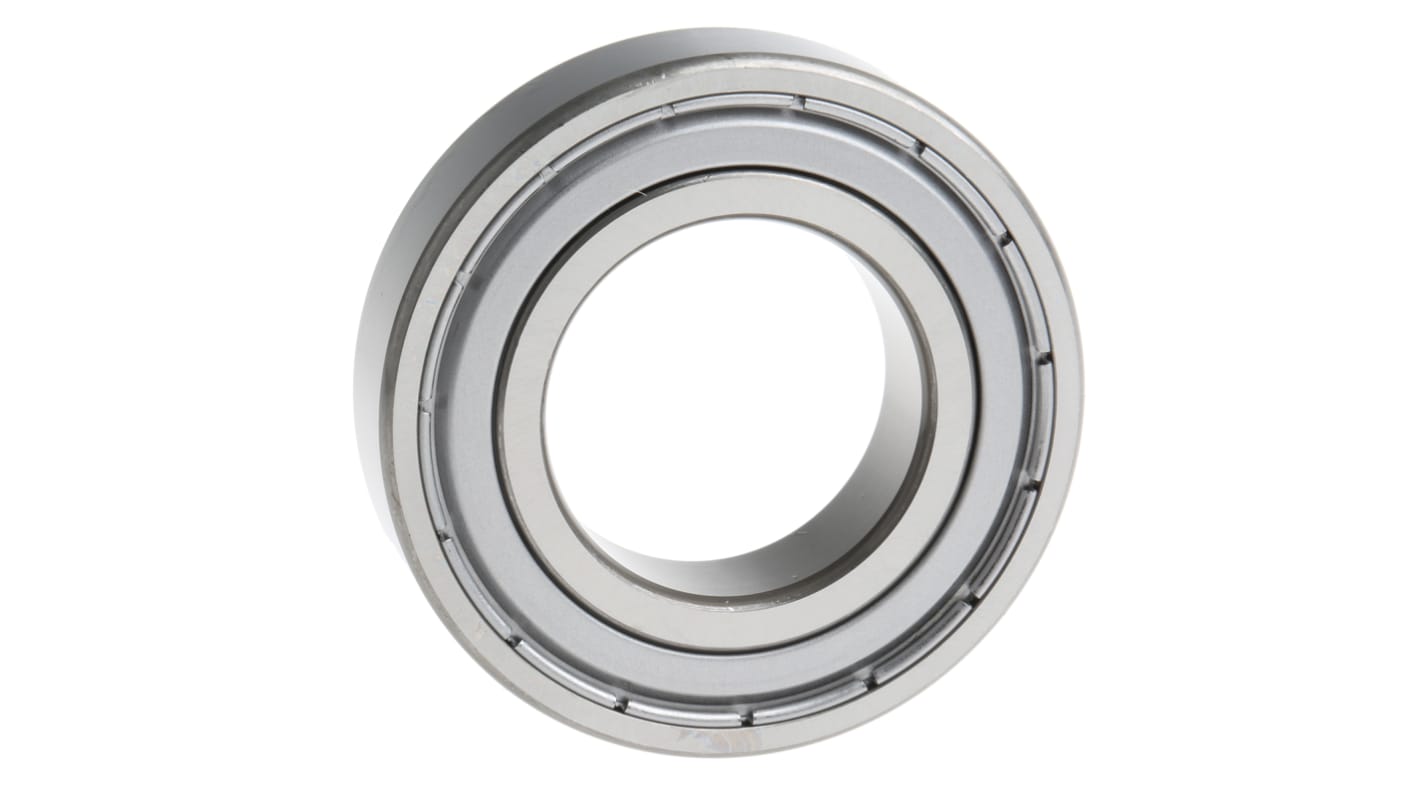

SKF 6005-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 25mm I.D, 47mm O.D

View all Ball Bearings
Bulk discount available

Subtotal (1 unit)*

£6.04

(exc. VAT)

£7.25

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 85 unit(s) ready to ship
  • Plus 25 unit(s) ready to ship from another location
  • Plus 34 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£6.04
5 - 9£5.81
10 - 24£5.66
25 +£5.56

*price indicative

Sponsored
Image of box of various metal tools to work with bearings, all grey metal
SKF logo in blue reading SKF
SKF Hydraulic Bearing Puller, 17 Piece Kit
Effortlessly remove tight-fitted bearings with SKF's 17-piece bearing puller kit. Equipped with a hydraulic spindle and adaptable assembly stand, it's perfect for heavy-duty industrial applications.
Shop now
RS Stock No.:
286-7675
Mfr. Part No.:
6005-2Z
Brand:
SKF
Find similar products by selecting one or more attributes.
Select all

Brand

SKF

Inside Diameter

25mm

Outside Diameter

47mm

Race Width

12mm

Ball Bearing Type

Single Row Deep Groove Ball Bearing

Sealing Arrangement

Both Sides Shielded

Bearing Clearance

CN

Material

Steel

Ball Material

Steel

Cage Material

Sheet Metal

Number of Rows

1

Static Load Rating

6.55kN

Dynamic Load Rating

11.9kN

Bore Type

Parallel

Bearing Series

0 Extra Light

Partial Bearing Code

6005

Race Type

Plain

Model Number p

60052Z

COO (Country of Origin):
IT

SKF Shielded Deep-Groove Ball Bearing, 25mm ID, 47mm OD - 6005-2Z


If you need to support radial and axial loads simultaneously, this ball bearing from SKF is an effective choice. It features a single row of spherical bearings, which rotate around a deep-groove inner raceway. This helps reduce friction on an axle for smoother motion in your equipment or machinery. The unit can support static loads of up to 6.55kN in either direction, which keeps the axle stable when it's under stress to prevent damage or malfunction.

• Metal dust shields on each end keep dust and other small particles out, ensuring smooth motion and minimal wear
• Made of steel for excellent strength, durability and corrosion resistance, even in harsh environments
• Low levels of vibration and noise for a quiet work environment

Applications


• Conveyor belts
• Agricultural machinery
• Mining equipment

Can I use this bearing at high speeds?


Deep-groove ball bearings like this one are ideal for use in high-speed applications as they produce low levels of friction and heat. This bearing can withstand very high maximum speeds of 16,000rpm (rotations per minute).
