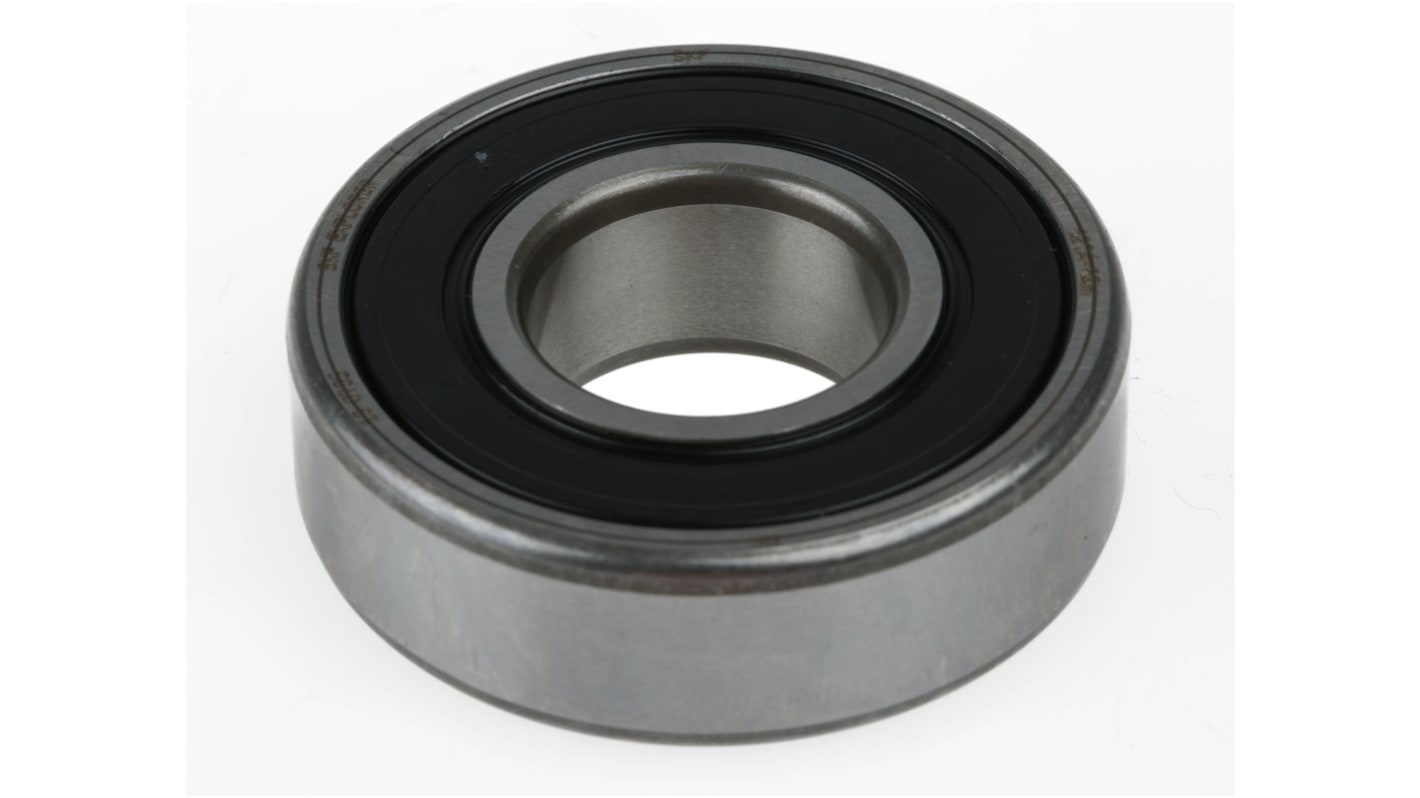

SKF 6204-2RSH/W64 Single Row Deep Groove Ball Bearing- Both Sides Sealed 20mm I.D, 47mm O.D
- RS Stock No.:
- 233-7116
- Mfr. Part No.:
- 6204-2RSH/W64
- Brand:
- SKF
Subtotal (1 unit)*
£71.73
(exc. VAT)
£86.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £71.73 |
*price indicative
- RS Stock No.:
- 233-7116
- Mfr. Part No.:
- 6204-2RSH/W64
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 20mm | |
Outside Diameter | 47mm | |
Race Width | 14mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 6.55kN | |
Dynamic Load Rating | 13.5kN | |
Bore Type | Parallel | |
Clearance Code | CN | |
Bearing Series | 2 Light | |
Partial Bearing Code | 6204 | |
Model Number p | 6204 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 20mm | ||
Outside Diameter 47mm | ||
Race Width 14mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 6.55kN | ||
Dynamic Load Rating 13.5kN | ||
Bore Type Parallel | ||
Clearance Code CN | ||
Bearing Series 2 Light | ||
Partial Bearing Code 6204 | ||
Model Number p 6204 | ||
- COO (Country of Origin):
- SE
SKF Ball Bearing, 20mm Inside Diameter, 47mm Outside Diameter - 6204-2RSH/W64
This ball bearing falls under the category of single row deep groove ball bearings and features a 20mm inner diameter and a 47mm outer diameter. Designed for enhanced performance in diverse applications, this sealed ball bearing offers reliability and efficiency in operational settings, supported by SKFs respected manufacturing standards.
Features & Benefits
• Manufactured from high-quality steel for durability
• Sealing arrangement protects against contaminants for longevity
• Suitable for a wide range of temperatures and speeds
• Achieves a basic dynamic load rating of 13.5 kN
• Designed to handle radial internal clearance with CN specifications
• Compact design facilitates easy installation in various machinery
• Sealing arrangement protects against contaminants for longevity
• Suitable for a wide range of temperatures and speeds
• Achieves a basic dynamic load rating of 13.5 kN
• Designed to handle radial internal clearance with CN specifications
• Compact design facilitates easy installation in various machinery
Applications
• Used in automotive for wheel bearings
• Suitable for electronic equipment requiring smooth rotation
• Employed in domestic appliances needing reliability
• Utilised in industrial machinery for long-term performance
• Suitable for electronic equipment requiring smooth rotation
• Employed in domestic appliances needing reliability
• Utilised in industrial machinery for long-term performance
How do I determine the appropriate load ratings for my application?
The basic dynamic load rating of 13.5 kN and static load rating of 6.55 kN indicate the maximum loads the bearing can support. Reviewing your machinery's operational loads against these ratings is essential to ensure compatibility and prevent premature failure.
What are the benefits of using sealed configurations in bearings?
Sealed configurations limit contamination from dirt and moisture, ensuring smoother operation and extending bearing life. This is particularly beneficial in challenging environments where exposure to debris is a concern.
What factors influence the lifespan of this ball bearing?
Factors such as operating load, rotational speed, lubrication quality, and environmental conditions significantly impact lifespan. Regular monitoring and appropriate maintenance can enhance longevity.
What installation considerations should I keep in mind?
Ensure that the seating surfaces are clean and properly aligned during installation. Additionally, avoid applying excessive force which may lead to misalignment or damage to the bearing and its surrounding components.
