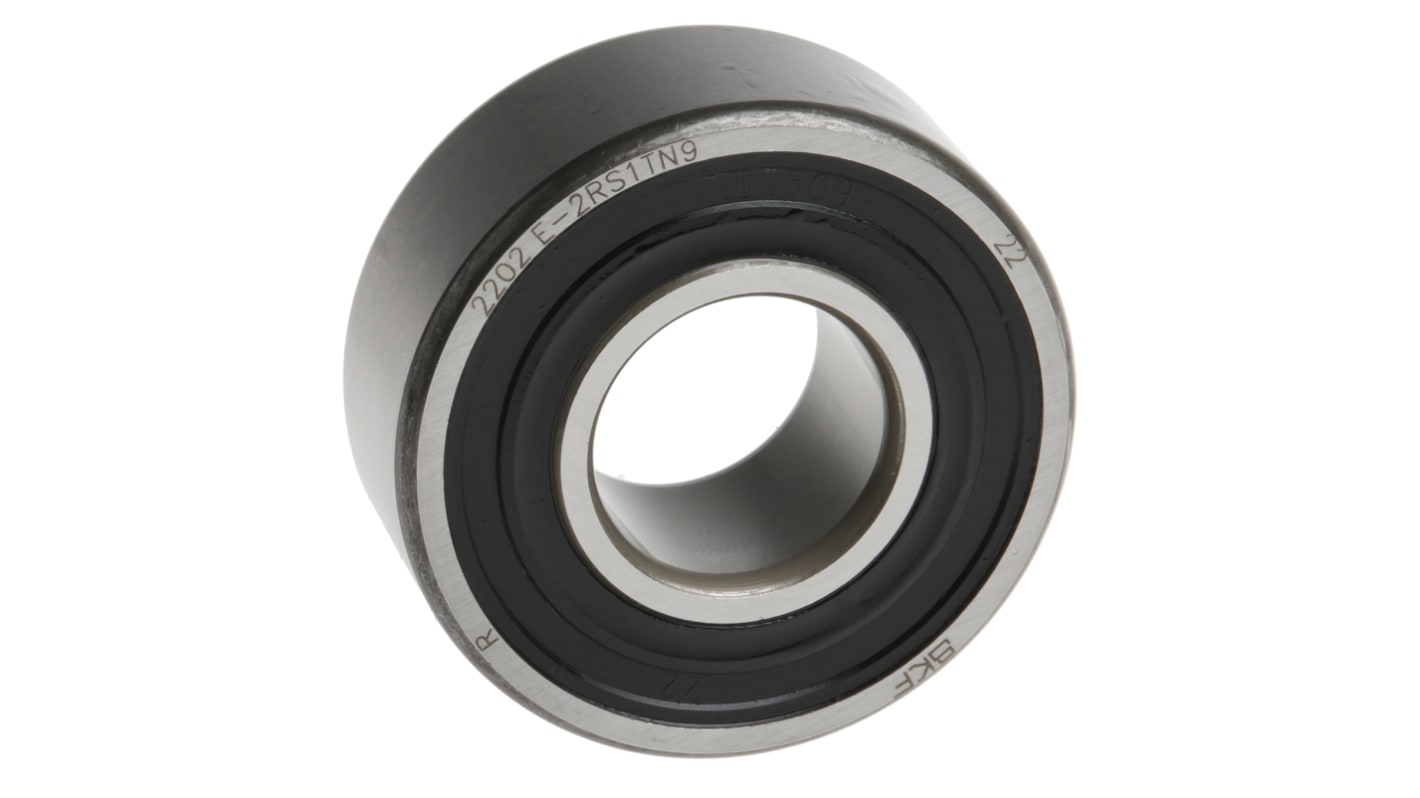

SKF 2202 E-2RS1TN9 Self Aligning Ball Bearing- Both Sides Sealed 15mm I.D, 35mm O.D
- RS Stock No.:
- 285-1361
- Mfr. Part No.:
- 2202 E-2RS1TN9
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£36.12
(exc. VAT)
£43.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £36.12 |
5 - 9 | £34.67 |
10 - 24 | £33.96 |
25 + | £33.22 |
*price indicative
- RS Stock No.:
- 285-1361
- Mfr. Part No.:
- 2202 E-2RS1TN9
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 15mm | |
Outside Diameter | 35mm | |
Race Width | 14mm | |
Ball Bearing Type | Self Aligning Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 2 | |
Static Load Rating | 1.76kN | |
Dynamic Load Rating | 7.41kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Partial Bearing Code | 2202 | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 15mm | ||
Outside Diameter 35mm | ||
Race Width 14mm | ||
Ball Bearing Type Self Aligning Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 2 | ||
Static Load Rating 1.76kN | ||
Dynamic Load Rating 7.41kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Partial Bearing Code 2202 | ||
Race Type Plain | ||
RoHS Status: Exempt
SKF Self-aligning Ball Bearing, Plain Race Type, 15 mm ID - 2202 E-2RS1TN9
This self-aligning ball bearing from SKF is designed to accommodate misalignments that can occur during operation, so it's ideal for use with machinery that experiences shaft deflection. The unit is capable of running at high speeds without building up excess heat, which reduces wear and operating costs. It's lubricated for life and has rubber ring seals to prevent grease from escaping. These seals also stop dirt from interfering with the bearing's function. As the rubber seals are hard-wearing and oil-resistant, you can use this component in industrial machinery.
• Parallel bore type
• Fibreglass-reinforced polyamide (PA) cage material
• Dynamic load rating of 7.41 kN
• Static load rating of 1.76 kN
• Inside diameter of 15 mm
• Outside diameter of 35 mm
• Steel material
• Two rows
• Plain race type
• Race width of 14 mm
• Fibreglass-reinforced polyamide (PA) cage material
• Dynamic load rating of 7.41 kN
• Static load rating of 1.76 kN
• Inside diameter of 15 mm
• Outside diameter of 35 mm
• Steel material
• Two rows
• Plain race type
• Race width of 14 mm
Application Information
• Mining and mineral processing
• Food and beverage industry
• Medical and pharmaceutical manufacturing
• Food and beverage industry
• Medical and pharmaceutical manufacturing
What is this bearing's safe operational temperature range?
You can use this SKF bearing in temperatures ranging from -40°C to +100°C. To preserve the bearing's seal, don't heat it above +80°C before installation.
How does a self-aligned ball bearing minimise friction?
Self-aligned ball bearings have loose conformity between their rolling elements and outer rings. This keeps friction and frictional heat at low levels.
