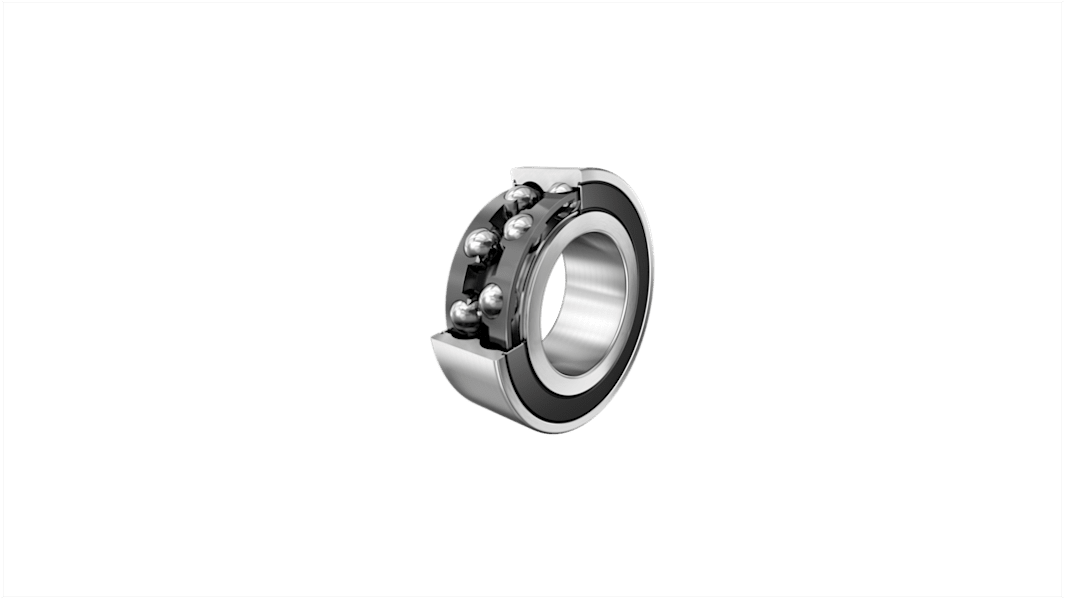

FAG 3803-B-2RS-TVH-HLC Double Row Angular Contact Ball Bearing- Both Sides Sealed 17mm I.D, 26mm O.D
- RS Stock No.:
- 260-0796
- Mfr. Part No.:
- 3803-B-2RS-TVH-HLC
- Brand:
- FAG
Subtotal (1 pack of 10 units)*
£349.54
(exc. VAT)
£419.45
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £34.954 | £349.54 |
*price indicative
- RS Stock No.:
- 260-0796
- Mfr. Part No.:
- 3803-B-2RS-TVH-HLC
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 17mm | |
Outside Diameter | 26mm | |
Race Width | 7mm | |
Ball Bearing Type | Double Row Angular Contact Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Polyamide | |
Number of Rows | 2 | |
Static Load Rating | 2.02kN | |
Dynamic Load Rating | 2.43kN | |
Bore Type | Parallel | |
Bearing Series | 8 Extra Thin Section | |
Race Type | Plain | |
Partial Bearing Code | 3803 | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 17mm | ||
Outside Diameter 26mm | ||
Race Width 7mm | ||
Ball Bearing Type Double Row Angular Contact Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Polyamide | ||
Number of Rows 2 | ||
Static Load Rating 2.02kN | ||
Dynamic Load Rating 2.43kN | ||
Bore Type Parallel | ||
Bearing Series 8 Extra Thin Section | ||
Race Type Plain | ||
Partial Bearing Code 3803 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
Schaeffler Angular Contact Ball Bearing, 17mm Inside Diameter, 26mm Outside Diameter - 3803-B-2RS-TVH-HLC
This angular contact ball bearing is designed for high performance in demanding applications. With an inside diameter of 17mm and an outside diameter of 26mm, this double row angular contact bearing features a sealing arrangement on both sides, ensuring durability and reliability. Constructed from steel with a polyamide cage, it meets a variety of mechanical needs while providing robust support.
Features & Benefits
• Constructed from steel for enhanced strength and longevity
• Designed with a double row configuration for increased load capacity
• Sealed on both sides to prevent contamination
• Operating temperature range from -20°C to 100°C for versatile usage
• Fatigue load limit of 117 N ensures dependable performance
• Lightweight at 0.014kg, ideal for space-constrained installations
• Designed with a double row configuration for increased load capacity
• Sealed on both sides to prevent contamination
• Operating temperature range from -20°C to 100°C for versatile usage
• Fatigue load limit of 117 N ensures dependable performance
• Lightweight at 0.014kg, ideal for space-constrained installations
Applications
• Utilised in automation systems for precise movement
• Applicable in electrical machinery where load distribution is critical
• Effective in mechanical assemblies requiring compact solutions
• Suitable for electronic devices needing reliable rotational support
• Applicable in electrical machinery where load distribution is critical
• Effective in mechanical assemblies requiring compact solutions
• Suitable for electronic devices needing reliable rotational support
What kind of load can this bearing handle?
The static load rating is 2.02 kN, while the dynamic rating is 2.43 kN, accommodating various operational demands.
How does the sealing arrangement benefit overall functionality?
The double-sided sealing arrangement protects against dust and moisture, extending the service life and maintaining performance under varying conditions.
Is this bearing suitable for high-speed applications?
Yes, the limiting speed of 13,200 r/min makes it suitable for high-speed operations in various mechanical applications.
What should I consider regarding the installation of this bearing?
Ensure the minimum shaft shoulder diameter of 19mm and housing shoulder diameter of 24mm are adhered to for proper fitment.
