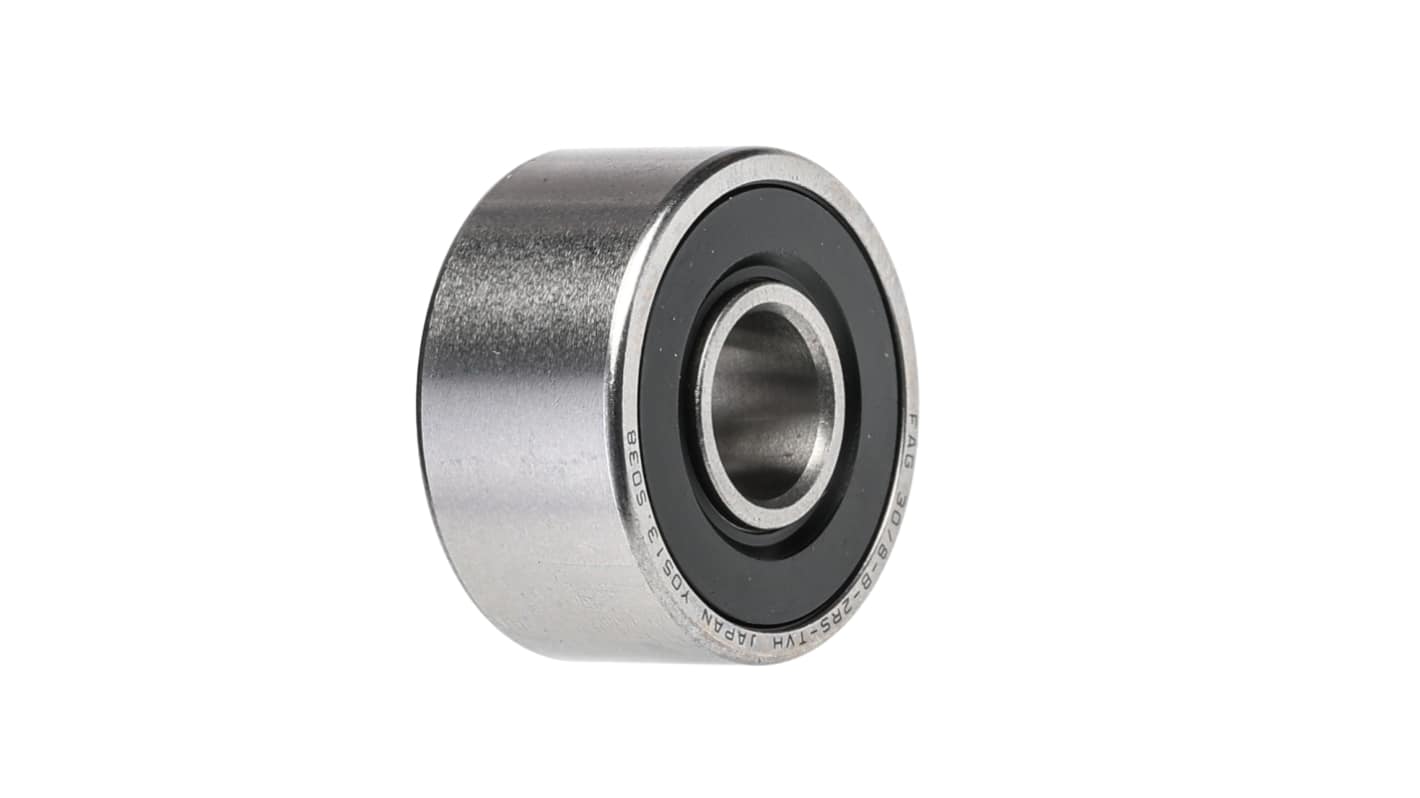

FAG 30/8-B-2RS-TVH Double Row Angular Contact Ball Bearing- Both Sides Sealed 8mm I.D, 22mm O.D
- RS Stock No.:
- 190-8351
- Mfr. Part No.:
- 30/8-B-2RS-TVH
- Brand:
- FAG
Bulk discount available
Subtotal (1 unit)*
£34.30
(exc. VAT)
£41.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 100 unit(s) ready to ship
- Plus 52 unit(s) ready to ship from another location
- Plus 74 unit(s) shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £34.30 |
5 - 9 | £32.93 |
10 - 24 | £32.25 |
25 + | £31.55 |
*price indicative
- RS Stock No.:
- 190-8351
- Mfr. Part No.:
- 30/8-B-2RS-TVH
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 8mm | |
Outside Diameter | 22mm | |
Race Width | 11mm | |
Ball Bearing Type | Double Row Angular Contact Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Steel | |
Number of Rows | 2 | |
Static Load Rating | 2.6kN | |
Dynamic Load Rating | 5.1kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Partial Bearing Code | 30/8-B-2RS | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 8mm | ||
Outside Diameter 22mm | ||
Race Width 11mm | ||
Ball Bearing Type Double Row Angular Contact Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 2 | ||
Static Load Rating 2.6kN | ||
Dynamic Load Rating 5.1kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Partial Bearing Code 30/8-B-2RS | ||
Race Type Plain | ||
Schaeffler 0 Extra Light Series Angular Contact Ball Bearing, 8mm Inside Diameter, 22mm Outside Diameter - 30/8-B-2RS-TVH
This angular contact ball bearing is designed for precision applications, featuring a bore diameter of 8mm and an outside diameter of 22mm. The product falls within the extra light series and includes a robust double-row design that ensures high performance in demanding environments. With a width of 11mm and made from durable steel, this sealed ball bearing offers reliability in various settings, making it a suitable choice for automation and mechanical engineering tasks.
Features & Benefits
• Double row design provides enhanced load distribution
• Both sides sealed for superior contamination protection
• High dynamic load capacity of 5.1kN ensures reliable performance
• Glass-fibre reinforced cage enhances durability and strength
• Lightweight construction at approximately 0.022kg improves efficiency
• Both sides sealed for superior contamination protection
• High dynamic load capacity of 5.1kN ensures reliable performance
• Glass-fibre reinforced cage enhances durability and strength
• Lightweight construction at approximately 0.022kg improves efficiency
Applications
• Used in systems requiring high precision
• Employed in electrical equipment for stability and performance
• Suitable for robotics where space and weight are critical
• Ideal for high load capacity needs in compact designs
• Employed in electrical equipment for stability and performance
• Suitable for robotics where space and weight are critical
• Ideal for high load capacity needs in compact designs
What is the significance of the double-row design in this bearing?
The double-row configuration allows for greater load capacity and stability, enabling it to handle both radial and axial loads effectively, making it ideal for applications that require reliability under various stress conditions.
What type of lubrication is recommended for this bearing?
This bearing is designed for grease lubrication, specifically with low-noise ball bearing grease, ensuring smooth operation and reduced wear, particularly in environments where maintenance might be challenging.
How does the sealing arrangement impact the bearing's performance?
The contact seals on both sides significantly enhance the bearing's resistance to dust and moisture, helping to prolong its lifespan and maintain optimal functionality even in harsh conditions.
What is the operating temperature range for this bearing?
The bearing can operate effectively within a temperature range of -20°C to 100°C, making it suitable for diverse industrial applications that may experience various thermal conditions.
How does the material used in this ball bearing affect its performance?
Constructed from steel, this ball bearing provides strength and durability, ensuring minimal deformation under high loads, thus retaining its performance characteristics over extended periods of use in demanding situations.
